BES02T0

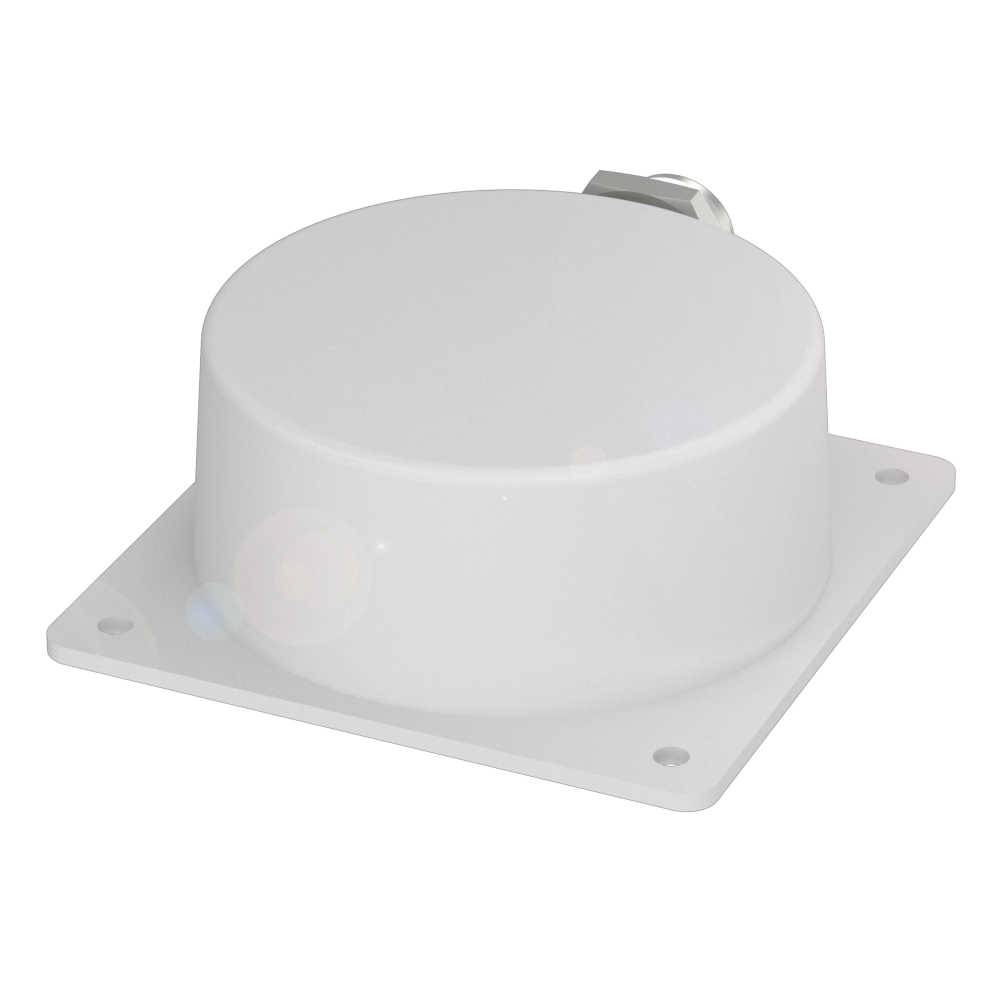

BES IKN-S5-070-W-4-S

Inductive proximity switches and proximity sensors

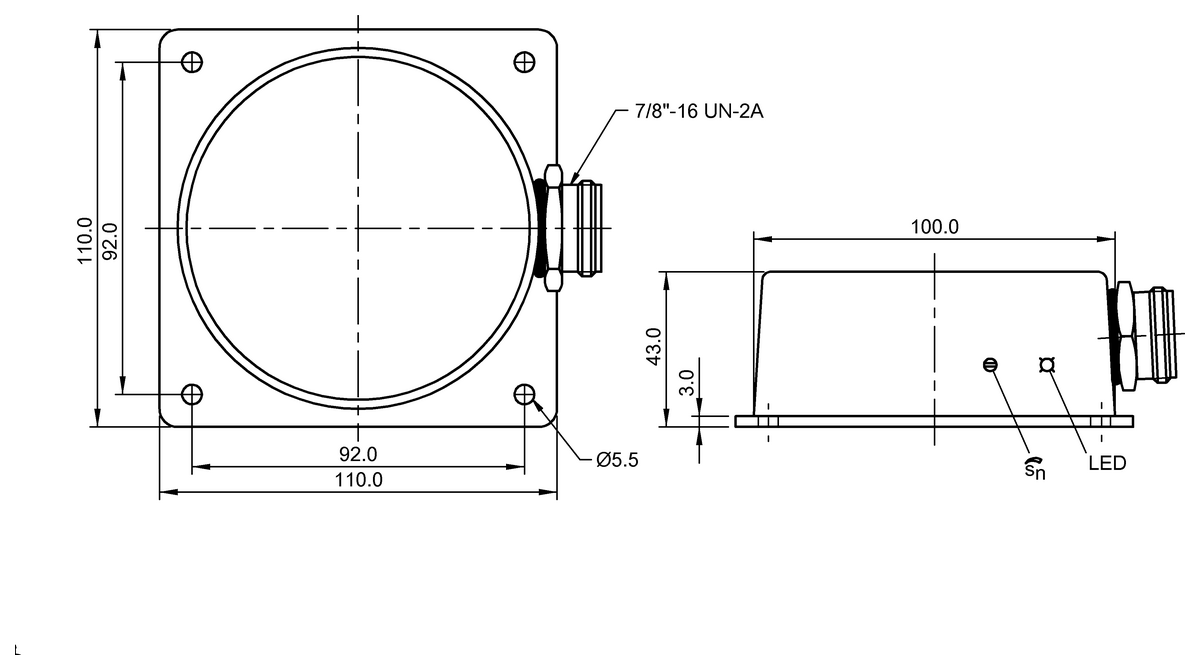

Dimension
110 x 110 x 43 mm
Style Housing
110x110x43
Installation
non-flush
Range
35...105 mm
Switching output
normally open (NO)
Do you have any questions about the product? Get in touch with us.
This product page contains information for Northern Ireland

Quantity scale

Contact request
Key features
Dimension
110 x 110 x 43 mm
Style Housing
110x110x43
Installation
non-flush
Range
35...105 mm
Switching output
normally open (NO)
Switching frequency
25 Hz
Housing material
PE, Macrolon Polyester
Material sensing surface
Macrolon
Connection
Connector, 7/8"-16 UN2A
Operating voltage Ub
20...260 VAC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CE
WEEE
Classifications
ECLASS 10.1
27-27-01-01
ECLASS 11.0
27-27-01-01
ECLASS 12.0
27-27-40-01
ECLASS 13.0
27-27-40-01
ECLASS 14.0
27-27-40-01
ECLASS 4.1
27-27-01-01
ECLASS 5.1.4
27-27-01-01
ECLASS 6.2
27-27-01-01
ECLASS 8.1
27-27-01-01
ECLASS 9.0
27-27-01-01
ECLASS 9.1
27-27-01-01
ETIM 4.0
EC002714
ETIM 5.0
EC002714
ETIM 6.0
EC002714
ETIM 7.0
EC002714
ETIM 8.0
EC002714
ETIM 9.0
EC002714
UNSPSC 11
41111926
UNSPSC 7.0901
41111926
