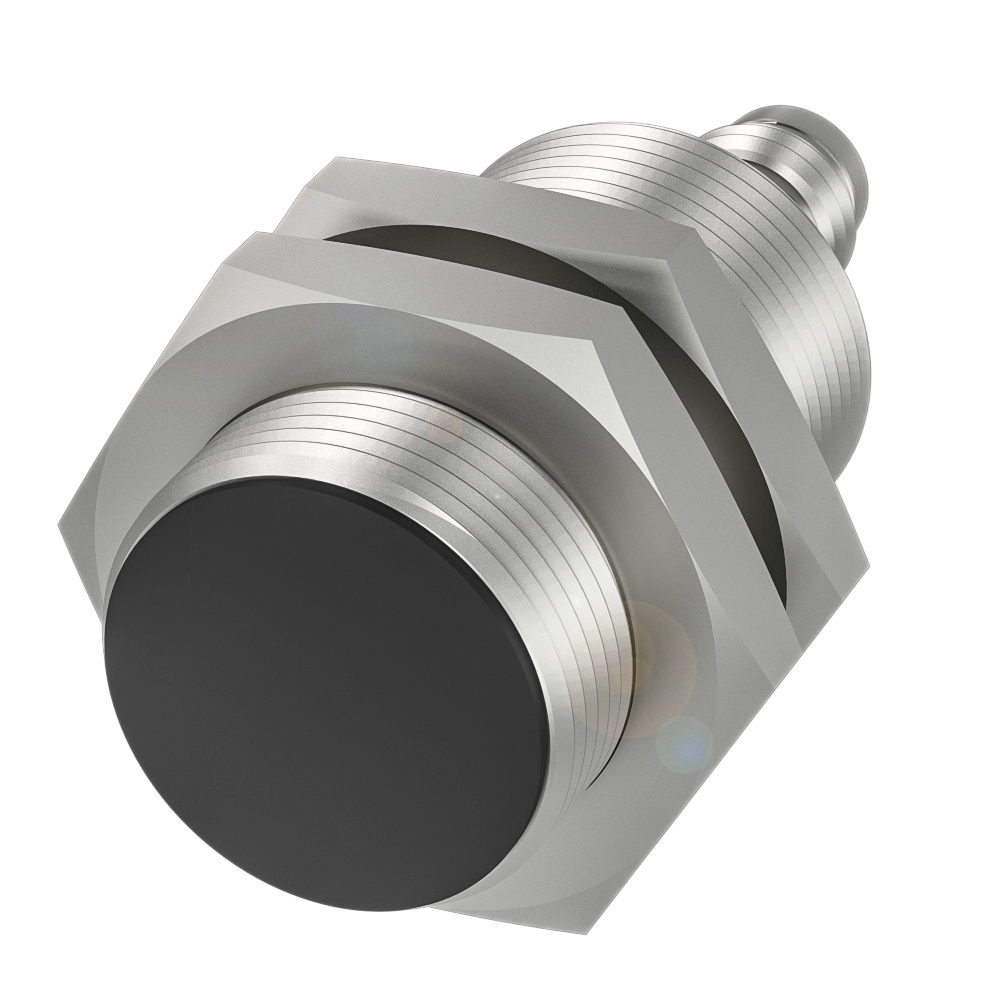

Inductive proximity switches and proximity sensors

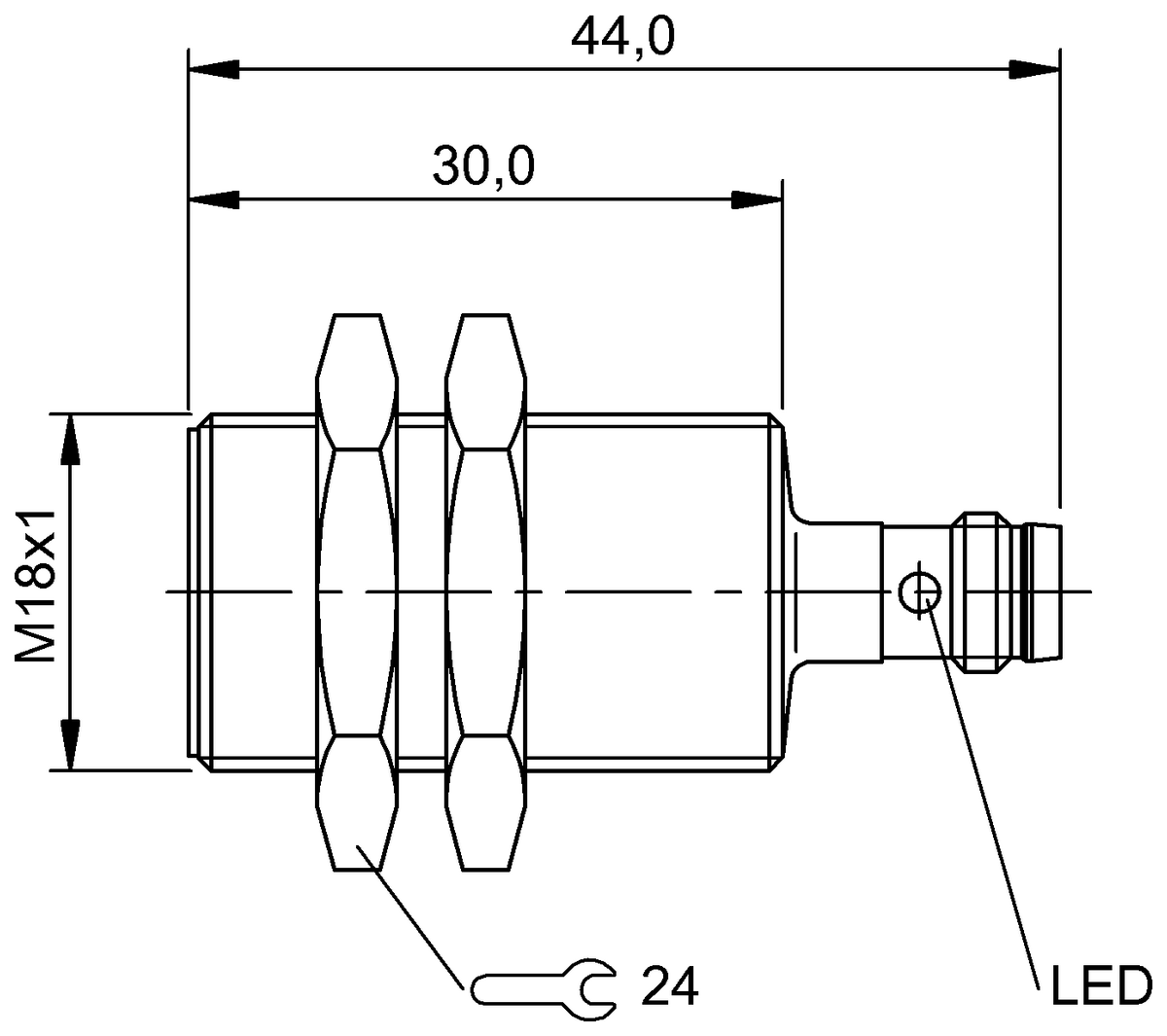

Dimension
Ø 18 x 44 mm
Style Housing
M18x1
Installation
for flush mounting
Range
8 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Northern Ireland
Alternative products
|
|
Alternative
|
|
|
|
|
|
| BES 516-326-G-E5-Y-S49 | BES 516-326-G-E5-Y-S4 | |
|
80.40 GBP
List price
|
80.40 GBP
List price
|
|
| Dimension | Ø 18 x 44 mm | Ø 18 x 44.5 mm |
|---|---|---|
| Style Housing | M18x1 | M18x1 |
| Installation | for flush mounting | for flush mounting |
| Range | 8 mm | 8 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 200 Hz | 200 Hz |
| Housing material | Brass, nickel-plated | Brass, nickel-plated |
| Material sensing surface | PBT | PBT |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
cULus CE WEEE |
CE UKCA cULus WEEE |
