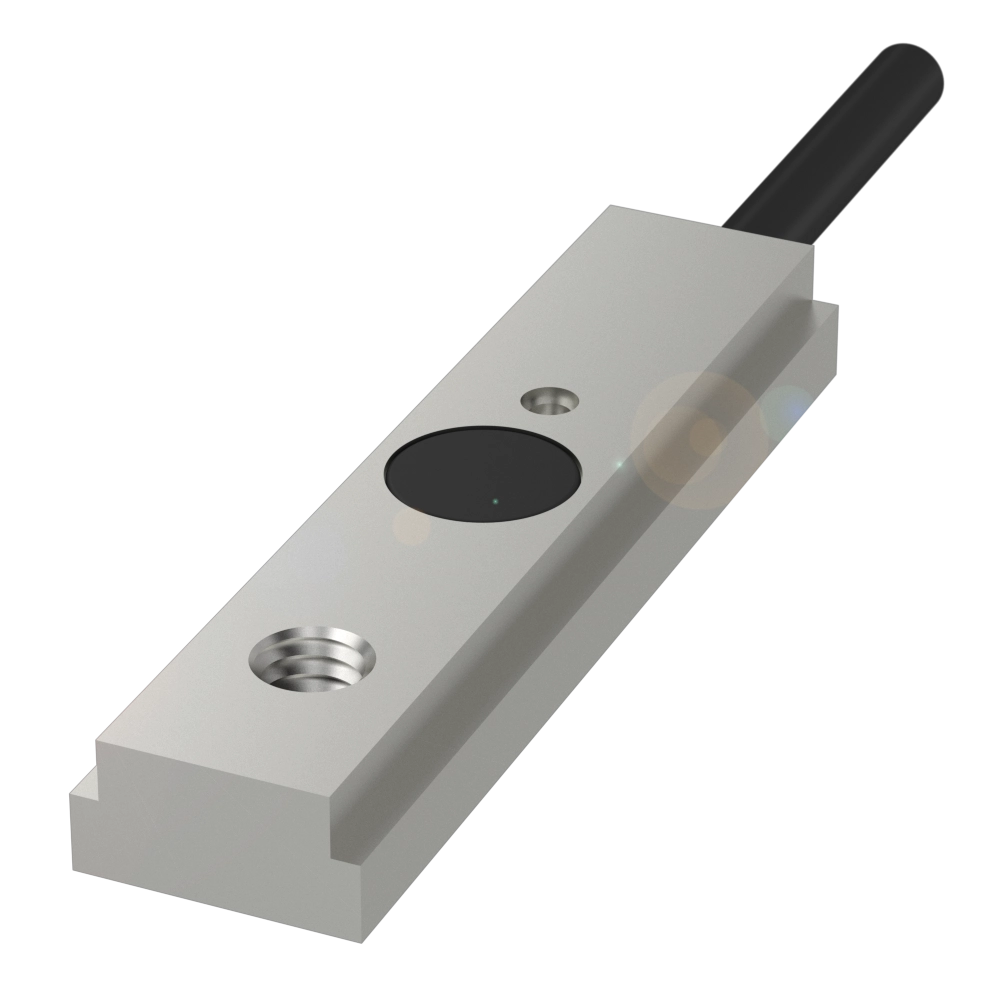

Inductive proximity switches and proximity sensors
Dimension
40 x 9.9 x 5 mm
Style Housing
8x8
Installation
for flush mounting
Range
2 mm
Switching output
PNP normally closed (NC)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Northern Ireland
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
| BES 516-300-S303-C-05 | BES P03ME-POC20B-EP05 | BES Q08ZC-POC20B-BP06 | |
|
-
List price
|
235.38 GBP
List price
|
95.68 GBP
List price
|
|
| Dimension | 40 x 9.9 x 5 mm | 40 x 9.9 x 5 mm | 40 x 8 x 8 mm |
|---|---|---|---|
| Style Housing | 8x8 | 40x9.9x5 | 8x8 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm | 2 mm |
| Switching output | PNP normally closed (NC) | PNP normally closed (NC) | PNP normally closed (NC) |
| Switching frequency | 1000 Hz | 5000 Hz | 3000 Hz |
| Housing material | Aluminium | Brass, Nickel-free coated | Zinc, Die casting |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Cable, 5.00 m, PUR | Cable, 5.00 m, PUR | Cable, 6.00 m, PUR |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...95 °C | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity | CE |
cULus CE UKCA WEEE |
CE UKCA cULus WEEE |
