BKT0003

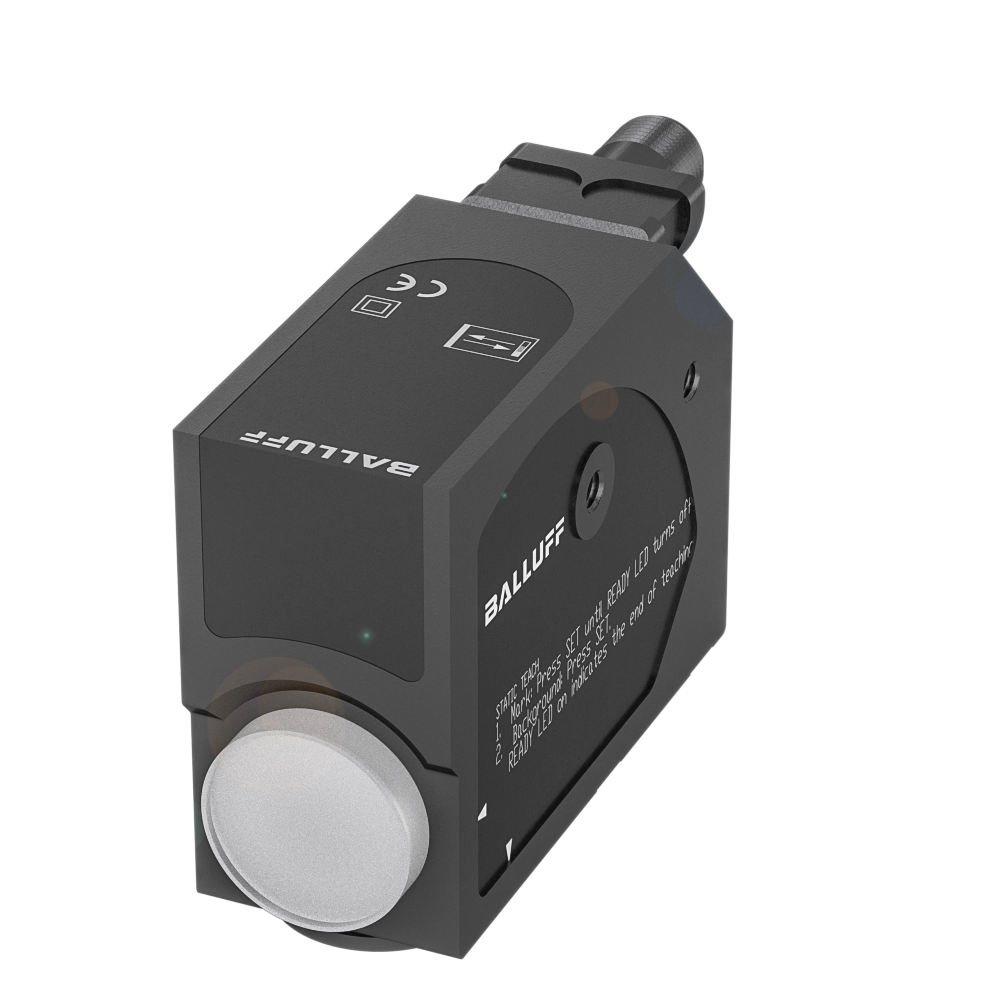

BKT 67M-003-U-S92

Contrast sensors

Series
67M
Dimension
32 x 64 x 82 mm
Interface
Analog, voltage 1…5.5 V
PNP/NPN NO/NC
Input function
Same function as SET button
Principle of operation
Contrast sensor
Do you have any questions about the product?

Quantity scale

Contact request
Key features
Series
67M
Dimension
32 x 64 x 82 mm
Interface
Analog, voltage 1…5.5 V
PNP/NPN NO/NC
Input function
Same function as SET button
Principle of operation
Contrast sensor
Principle of optical operation
Diffuse sensor, Focused
Beam characteristic
Focused
Light type
Blue light/Green light/Red light
Light spot size
1.5 x 5 mm at 9 mm
Range
6...12 mm
Connection
Connector, M12x1-Male
Housing material
Aluminum, Die casting, Painted
Material sensing surface
Glass
Operating voltage Ub
10...30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
Classifications
ECLASS 10.1
27-27-09-06
ECLASS 11.0
27-27-09-06
ECLASS 12.0
27-27-09-06
ECLASS 13.0
27-27-09-06
ECLASS 14.0
27-27-09-06
ECLASS 5.1.4
27-27-09-06
ECLASS 6.2
27-27-09-06
ECLASS 8.1
27-27-09-06
ECLASS 9.0
27-27-09-06
ECLASS 9.1
27-27-09-06
ETIM 4.0
EC001820
ETIM 5.0
EC001820
ETIM 6.0
EC001820
ETIM 7.0
EC001820
ETIM 8.0
EC001820
UNSPSC 11
39121528
UNSPSC 7.0901
39121528
