Sensors for Detecting Transparent Media
Innovative Solutions
Reading Time: minutes
Transparent materials like glass, plastic films, and liquids are ubiquitous across many industries. In packaging, food processing, and logistics, accurate detection of these media is crucial to ensure efficient and error-free processes. However, detecting transparent objects is challenging due to their minimal reflection and light transmission properties, which can often overwhelm traditional sensors.
Fortunately, Balluff offers a range of solutions specifically designed for these demanding tasks. This blog post provides an overview of Balluff’s sensor technologies tailored to detect transparent media and highlights how they are used in practical applications.
The Challenge of Detecting Transparent Media
Detecting transparent materials, such as glass bottles, plastic films, or liquids, is challenging for traditional sensors. These objects typically reflect very little light or allow it to pass through, leading to potential detection errors. This unique challenge calls for specialized sensors that can handle transparent media reliably.
Balluff Sensor Solutions for Transparent Media
1. Photoelectric Sensors (BOS Series)
Balluff’s photoelectric sensors use light beams to detect objects and are specifically designed to reliably detect transparent materials like glass or plastic films.
Key features
-
Transparent Object Detection Sensor
Using through-beam or retro-reflective principles, these sensors detect weakly reflective or transparent materials with high accuracy. They are commonly used in glass bottle production or for detecting protective films in packaging processes.
-
Laser Sensors
These high-precision laser-based sensors offer exceptional resolution, making them ideal for detecting even thin and transparent materials. They are especially useful in packaging applications involving fine plastic films.
-

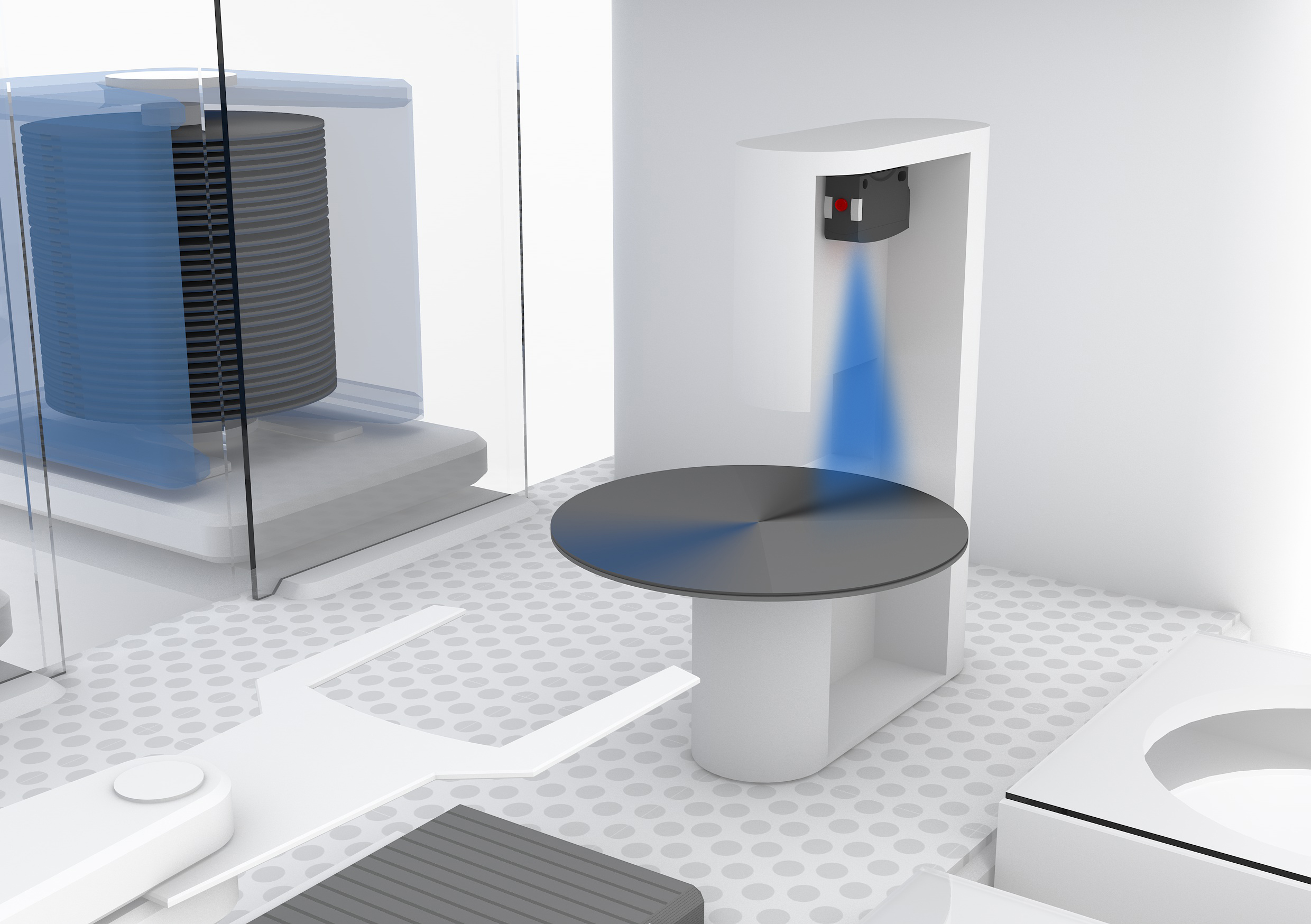

Optical Sensors with Blue Light
The BOS optical sensor with blue light is another powerful solution from Balluff. Blue light sensors offer key advantages for detecting transparent media over traditional red-light sensors.
-
Advantages of Blue Light
Blue light has a shorter wavelength than red light, allowing it to interact better with transparent or weakly reflective materials. Balluff’s blue light sensors are highly effective in detecting transparent objects like glass or thin plastic films, outperforming conventional sensors. They are ideal for environments with challenging lighting conditions or for detecting very fine objects.
-
Typical Applications
Blue light sensors are widely used in the packaging industry to reliably detect transparent films on production lines. They also excel in the food and beverage industry for detecting glass bottles or PET containers.
2. Capacitive Sensors (BCS Series)
Balluff’s capacitive sensors work by measuring changes in electrical capacitance, allowing them to detect both metallic and non-metallic materials. They are particularly effective for detecting transparent media.
Key features
-
Level Detection
Capacitive sensors are commonly used to measure the level of transparent liquids in glass or plastic containers. They are an invaluable tool in the food and beverage industry for precise monitoring of liquid levels.
-
Material Presence Detection
In packaging, capacitive sensors help ensure plastic films are correctly positioned and processed.
3. Ultrasonic Sensors (BUS Series)
Balluff’s ultrasonic sensors use sound waves to detect objects and are unaffected by surface properties or material color, making them a robust and versatile solution for transparent object detection.
Key features
-
Distance Measurement
These sensors accurately measure the distance and position of transparent objects like glass bottles, plastic packaging, or liquids. They are widely used in logistics, where detecting transparent packaging on conveyor belts is essential.
-
Film Detection
Ultrasonic sensors are ideal for detecting transparent films in packaging processes, where optical sensors may struggle with certain materials.
Application Examples in Industry
Food and Beverage Industry
In beverage production, monitoring the level of transparent liquids in glass or plastic containers is essential for quality assurance. Capacitive sensors offer a reliable solution for level detection in these applications, accurately detecting liquid levels even in transparent bottles and preventing overfilling or underfilling. Meanwhile, blue light sensors add further precision to the process by detecting transparent glass bottles on conveyor belts at high speeds, helping to manage bottle flow accurately in automated bottling lines. For example, in a high-speed bottling line, a blue light sensor can detect each bottle’s position to ensure proper alignment before filling, labeling, or capping.
Packaging Industry
Transparent films used in packaging processes can be tricky to detect, but blue light sensors excel in detecting and tracking these films on high-speed production lines. When combined with ultrasonic sensors, they ensure that the transparent films are correctly aligned and applied to products, minimizing errors and reducing downtime caused by misalignment or undetected film shortages. In automated packaging machines, ultrasonic sensors detect and measure the position of thin, transparent wrapping films, helping to maintain alignment and consistency during wrapping or sealing operations. This technology proves invaluable in ensuring production efficiency and maintaining the final product’s appearance and quality.
Logistics and Conveyor Systems
In logistics, transparent packaging such as plastic wraps and containers often move along conveyor belts, where photoelectric sensors with blue light or ultrasonic sensors are needed to detect each package’s presence and position accurately. By ensuring that each package is correctly detected, these sensors prevent bottlenecks, improve the speed of material flow, and support efficient inventory tracking.
Conclusion
Detecting transparent materials requires specialized technology to overcome the limitations of conventional sensors. With a diverse selection of sensors – from blue light optical sensors to capacitive and ultrasonic technologies – Balluff offers reliable solutions for every application involving transparent media. These sensors ensure that materials such as glass, plastic films, and liquids are accurately detected, boosting production efficiency and reducing errors across industries.
When searching for reliable solutions for transparent media detection, Balluff’s portfolio offers the advanced sensor technology needed to meet even the most challenging requirements. With decades of experience, Balluff provides innovative and quality solutions to enhance modern automation processes, ensuring precision and consistency in transparent media detection.
