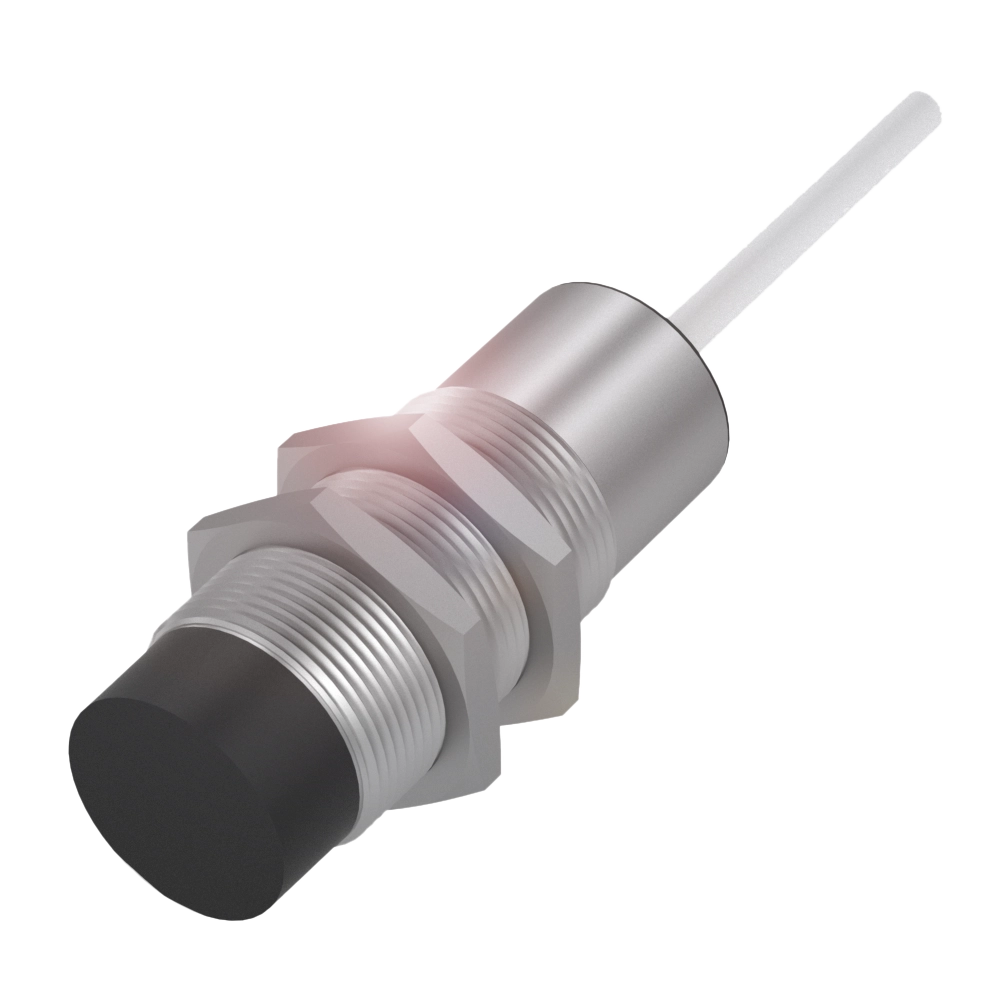

Inductive distance sensors

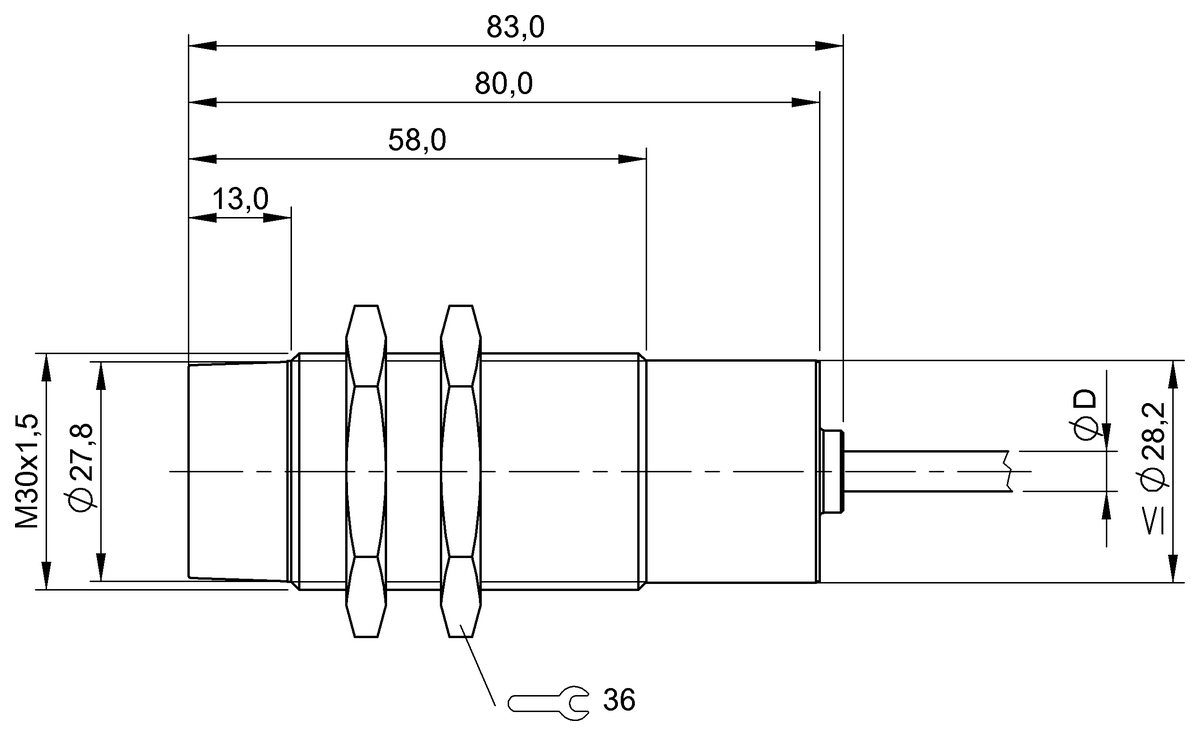

Dimension
Ø 30 x 83 mm
Style Housing
M30x1.5
Installation
non-flush
Range
3...15 mm
Analog output
Analog, current 2.2…9.1 mA
Recommended alternative
BAW002Y
Inductive distance sensors
BAW M30ME-UAC15F-S04G
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BAW000FBAW 030-PF-1-K-10- |
BAW002YBAW M30ME-UAC15F-S04G439,90 AUD |
|
| Dimension | Ø 30 x 83 mm | Ø 30 x 57 mm |
|---|---|---|
| Style Housing | M30x1.5 | M30x1.5 |
| Installation | non-flush | non-flush |
| Range | 3...15 mm | 3...15 mm |
| Analog output | Analog, current 2.2…9.1 mA | Analog, voltage 0...10 V |
| Output characteristic | falling on approach | falling on approach |
| Repeat accuracy per BWN | ±20.0 µm | ±12 µm |
| Housing material | Brass, nickel plated | Brass, nickel-plated |
| Material sensing surface | PA 12 | PBT |
| Connection | Cable, 10.00 m, PVC | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC | 15...30 VDC |
| Ambient temperature | -10...60 °C | -10...70 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
CE EAC |
CE UKCA cULus WEEE |
