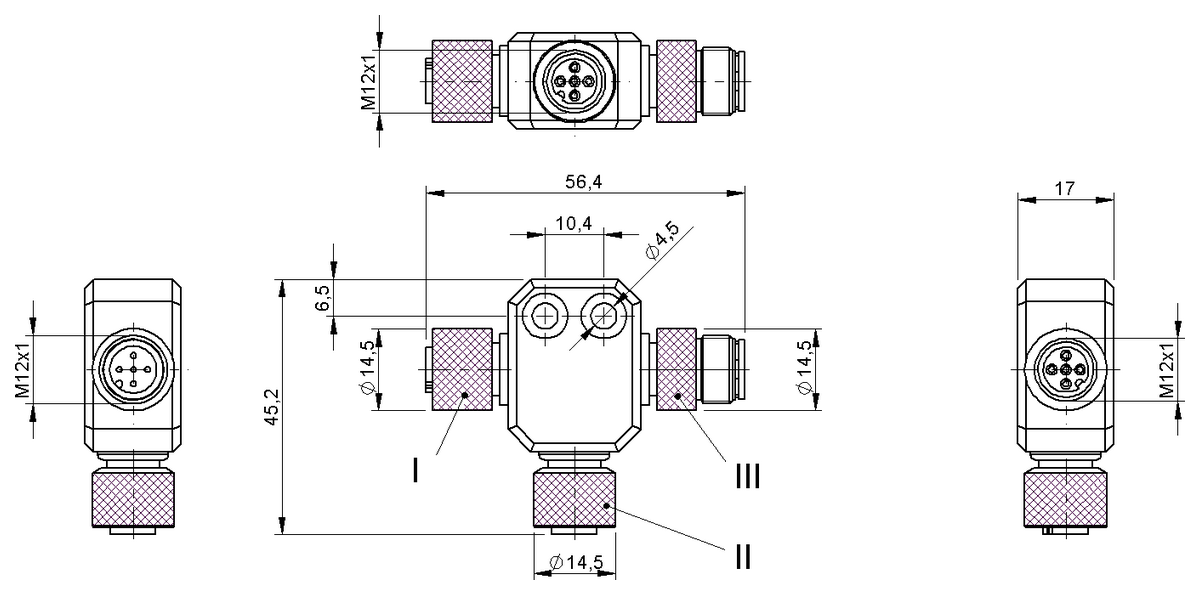

Tees
Connection 1
M12x1-Female, 5-pin, A-coded
Connection 2
M12x1-Female, 5-pin, A-coded
Connection 3
M12x1-Male, 5-pin, A-coded
Operating voltage Ub
30 VDC
IP rating
IP68
Recommended alternative
BCC0M3P
Tees
BCC M415-M415-M415-T0117-000
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BCC00WHBKS-S 92-TA1- |
BCC0M3PBCC M415-M415-M415-T0117-000168,17 AUD |
|
| Connection 1 | M12x1-Female, 5-pin, A-coded | M12x1-Female, 5-pin, A-coded |
|---|---|---|
| Connection 2 | M12x1-Female, 5-pin, A-coded | M12x1-Male, 5-pin, A-coded |
| Connection 3 | M12x1-Male, 5-pin, A-coded | M12x1-Female, 5-pin, A-coded |
| Operating voltage Ub | 30 VDC | 250 VDC / 250 VAC |
| IP rating | IP68 | IP68 |
| Ambient temperature | -36...60 °C | -25...85 °C |
| Approval/Conformity |
EAC WEEE |
CE WEEE |
