BCC00Y1

Name: BCC00Y1
Brand: Balluff
SKU: BCC00Y1
Availability: OutOfStock

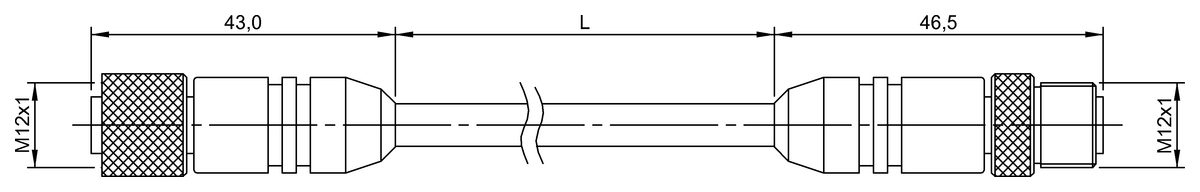

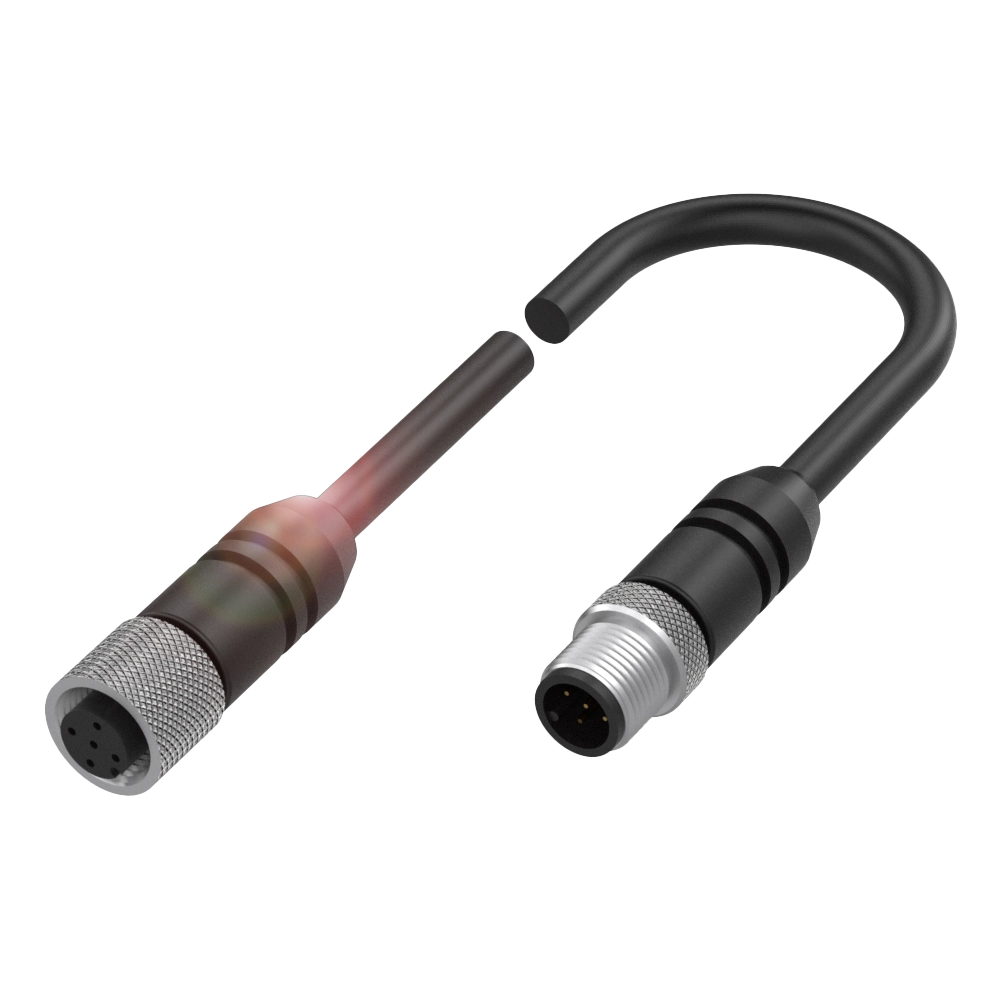

BKS-S103/GS103-CP-10

Double-ended cordsets

Connection 1

M12x1-Female, Straight, 5-pole, B-coded

Connection 2

M12x1-Male, Straight, B-coded

Interface

Profibus

Cable

PUR Shielded violet, 10 m, Drag chain compatible

Number of conductors

Recommended alternative

Estimated availability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product?

	Discontinued	Recommended alternative	Further alternative	Further alternative

	BCC00Y1 BKS-S103/GS103-CP-10 -	BCC0A16 BCC M415-M412-3B-329-PS72N1-100 182,14 AUD	BCC0C2N BCC M415-M412-3B-329-PS72N1-090 171,84 AUD	BCC0FJY BCC M425-M422-3B-329-PS72N1-100-C009 182,14 AUD
Connection 1	M12x1-Female, Straight, 5-pole, B-coded	M12x1-Female, straight, 5-pin, B-coded	M12x1-Female, straight, 5-pin, B-coded	M12x1-Female, angled, 5-pin, B-coded
Connection 2	M12x1-Male, Straight, B-coded	M12x1-Male, straight, 2-pin, B-coded	M12x1-Male, straight, 2-pin, B-coded	M12x1-Male, angled, 2-pin, B-coded
Interface	Profibus	Profibus	Profibus	Profibus
Cable	PUR Shielded violet, 10 m, Drag chain compatible	PUR Shielded violet, 10 m, drag chain compatible	PUR Shielded violet, 9 m, drag chain compatible	PUR Shielded violet, 10 m, drag chain compatible
Number of conductors	2	2	2	2
Cable temperature, fixed routing	-20...70 °C	-40...70 °C	-40...70 °C	-40...70 °C
Cable temperature, flexible routing	-20...50 °C	-20...60 °C	-20...60 °C	-20...60 °C
Operating voltage Ub	36 VDC / 30 VAC	60 VDC / 60 VAC	60 VDC / 60 VAC	60 VDC / 60 VAC
Approval/Conformity	CE	CE cULus WEEE	CE cULus WEEE	CE WEEE
