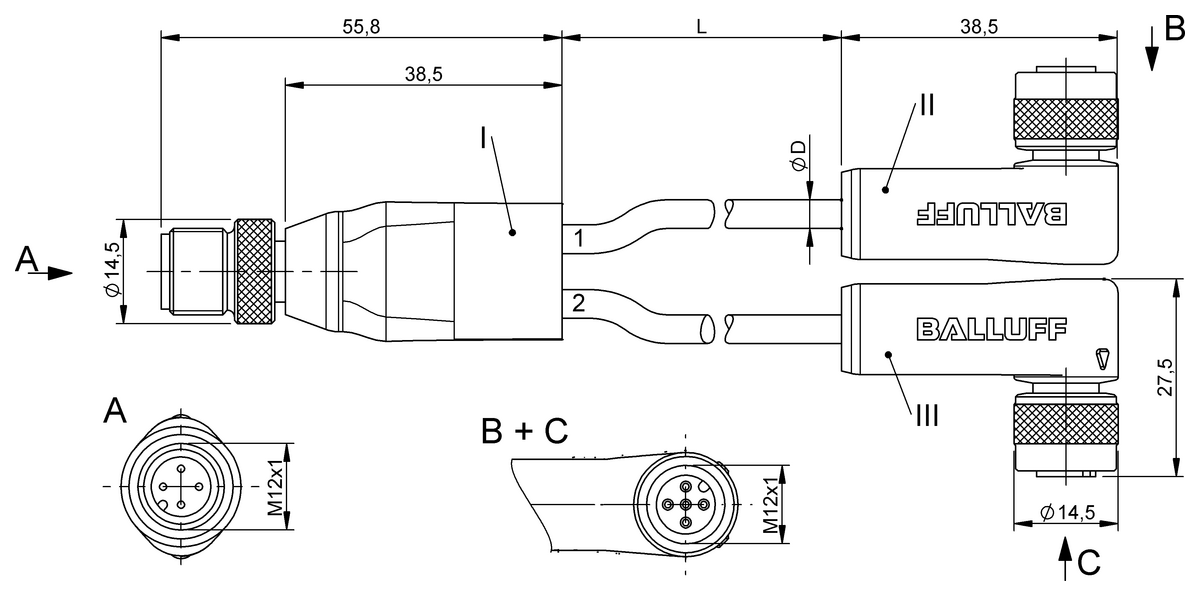

Similar Illustration

BCC0EHP

Name: BCC0EHP
Brand: Balluff
SKU: BCC0EHP
Price: 105.82 AUD
Availability: OutOfStock

BCC W414-W425-W425-U2046-003

Y-splitters

Connection 1

M12x1-Male, straight, 4-pin, A-coded

Connection 2

M12x1-Female, angled, 5-pin, A-coded

Connection 3

M12x1-Female, angled, 5-pin, A-coded

Operating voltage Ub

250 VDC / 250 VAC

Cable

Silicone welding spark resistant black, 0.3 m

Product Features

Do you have any questions about the product? Get in touch with us.

This product page contains information for Australia – Balluff Pty Ltd, Victoria

		Alternative	Further alternative

	BCC0EHP	BCC0EHM	BCC0EHR
	BCC W414-W425-W425-U2046-003	BCC W414-W415-W415-U2046-003	BCC W414-W425-W425-U2046-006
	105,82 AUD	105,82 AUD	113,97 AUD

Connection 1	M12x1-Male, straight, 4-pin, A-coded	M12x1-Male, straight, 4-pin, A-coded	M12x1-Male, straight, 4-pin, A-coded
Connection 2	M12x1-Female, angled, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, angled, 5-pin, A-coded
Connection 3	M12x1-Female, angled, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, angled, 5-pin, A-coded
Operating voltage Ub	250 VDC / 250 VAC	250 VDC / 250 VAC	250 VDC / 250 VAC
Cable	Silicone welding spark resistant black, 0.3 m	Silicone welding spark resistant black, 0.3 m	Silicone welding spark resistant black, 0.6 m
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
Cable temperature, fixed routing	-40...200 °C	-40...200 °C	-40...200 °C
Cable temperature, flexible routing	-25...200 °C	-25...200 °C	-25...200 °C
IP rating	IP67/IP67/IP67	IP67/IP67/IP67	IP67/IP67/IP67
Approval/Conformity	CE WEEE cULus	CE WEEE cULus	CE WEEE cULus
