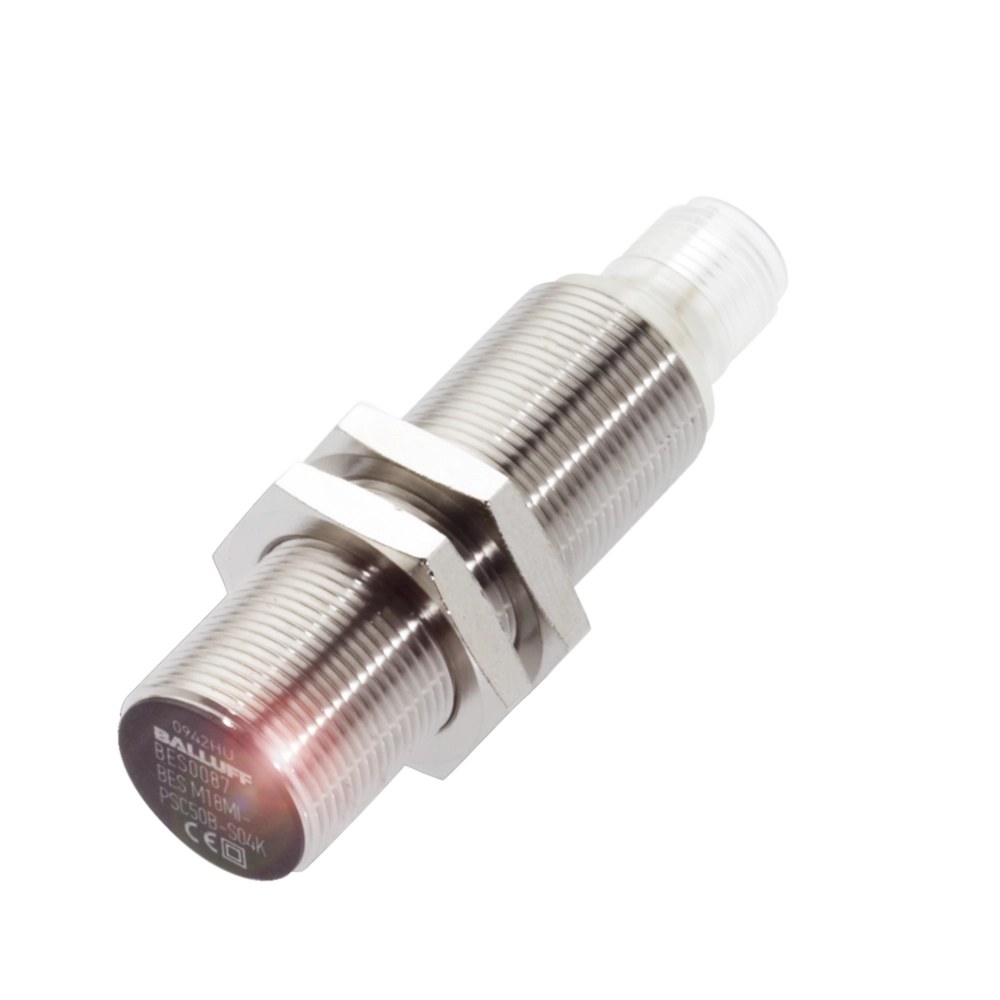

Inductive proximity switches and proximity sensors

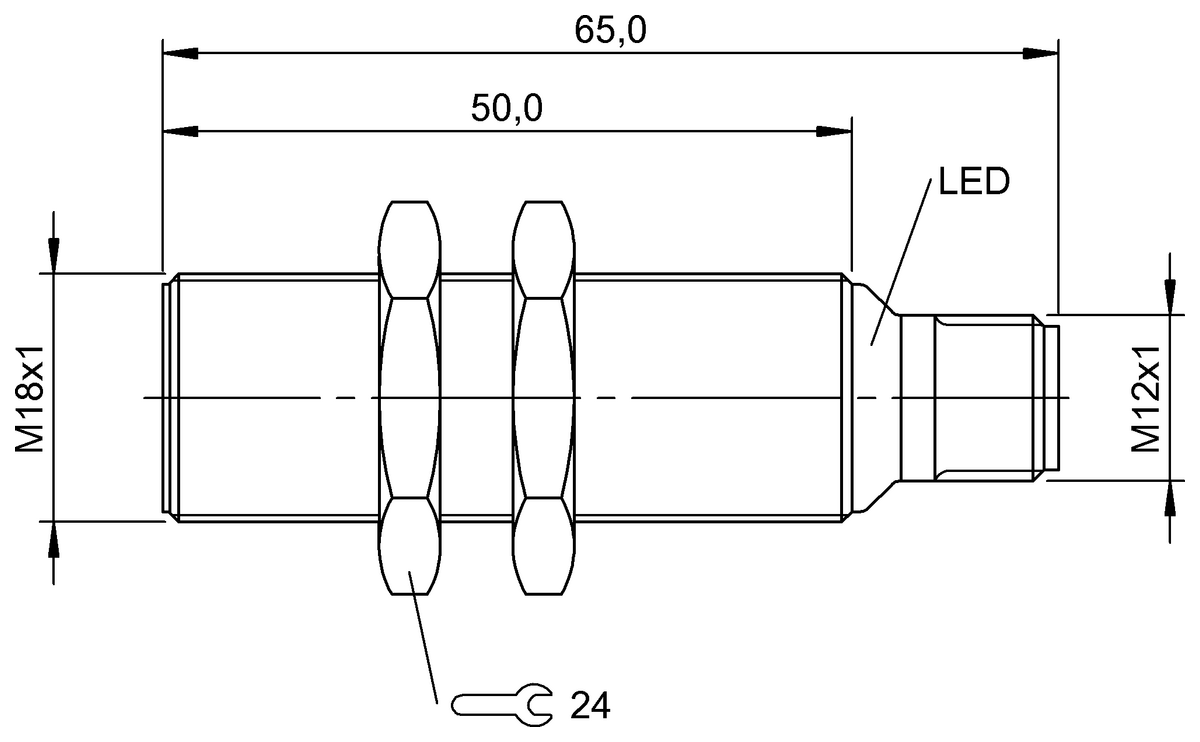

Dimension
Ø 18 x 65 mm
Style Housing
M18x1
Installation
for flush mounting
Range
8 mm
Switching output
PNP normally open (NO)
Recommended alternative
BES008L
Inductive proximity switches and proximity sensors
BES M18MI-PSC80B-S04G
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
BES008MBES M18MI-PSC80B-S04K- |
BES008LBES M18MI-PSC80B-S04G92,26 AUD |
BES05PPBES M18MI-PSC80A-S04G-W10197,61 AUD |
BES05PNBES M18MI-PSC80A-S04G-W09221,39 AUD |
|
| Dimension | Ø 18 x 65 mm | Ø 18 x 66 mm | Ø 18 x 66 mm | Ø 18 x 66 mm |
|---|---|---|---|---|
| Style Housing | M18x1 | M18x1 | M18x1 | M18x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting | for flush mounting |
| Range | 8 mm | 8 mm | 8 mm | 8 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 150 Hz | 1300 Hz | 2000 Hz | 2000 Hz |
| Housing material | Brass, nickel-plated | Brass, Nickel-free coated | Brass, PTFE coated | Brass, PTFE coated |
| Material sensing surface | PA 12 | PBT | PBT | PBT, PTFE coated |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 12...30 VDC | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -40...85 °C | -40...85 °C | -40...85 °C |
| IP rating | IP68 | IP68 | - | - |
| Approval/Conformity |
CE cULus EAC WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
