Canceled
Only CAD model download is supported
Inductive proximity switches and proximity sensors

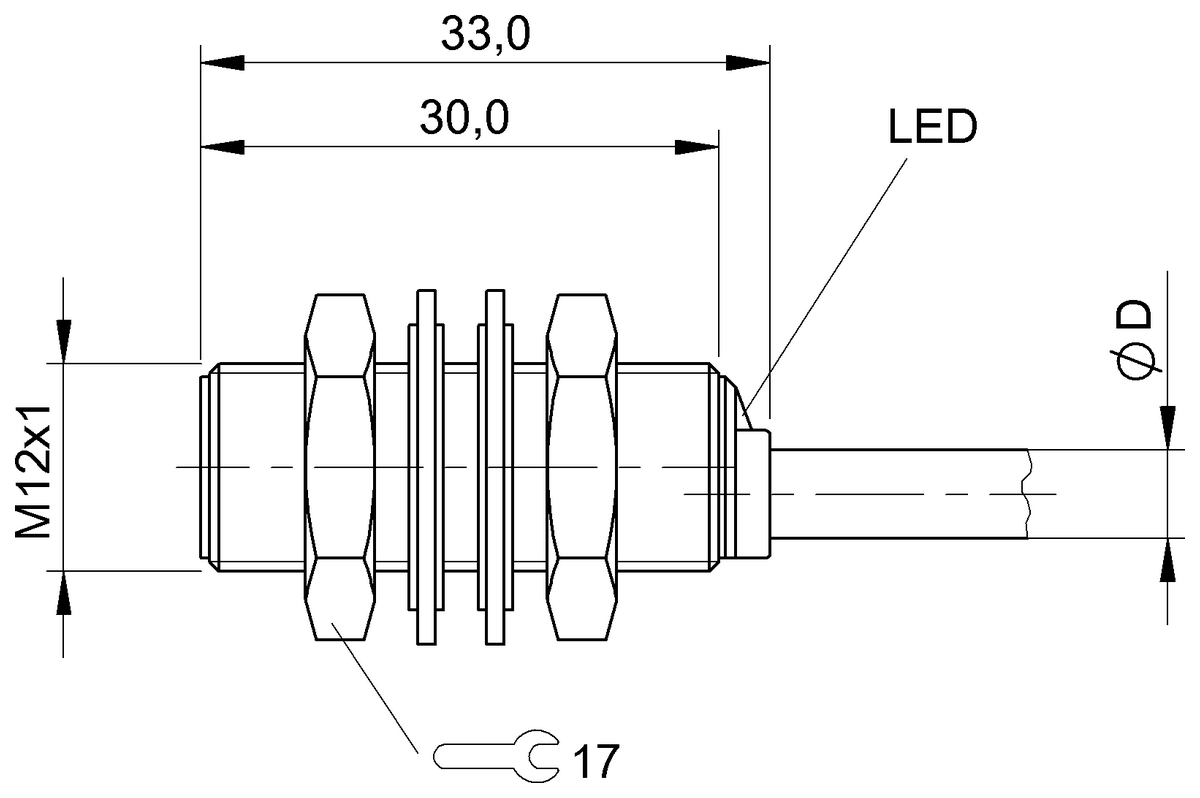

Dimension
Ø 12 x 33 mm
Style Housing
M12x1
Installation
for flush mounting
Range
2 mm
Switching output
NPN normally open (NO)
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BES00T2BES 516-329-E4-C-05- |
BES00T1BES 516-329-E4-C-03139,82 AUD |
BES00FLBES M12MI-NSC20B-BV0257,79 AUD |
|
| Dimension | Ø 12 x 33 mm | Ø 12 x 33 mm | Ø 12 x 53 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm | 2 mm |
| Switching output | NPN normally open (NO) | NPN normally open (NO) | NPN normally open (NO) |
| Switching frequency | 5000 Hz | 3500 Hz | 3500 Hz |
| Housing material | Brass, nickel-plated | Brass, Nickel-free coated | Brass, Nickel-free coated |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Cable, 5.00 m, PVC | Cable, 3.00 m, PVC | Cable, 2.00 m, PVC |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP68, according to BWN Pr 20 | IP68, according to BWN Pr 20 | IP68 |
| Approval/Conformity |
CE cULus EAC WEEE |
CE cULus WEEE |
CE UKCA cULus WEEE |
