Inductive proximity switches and proximity sensors

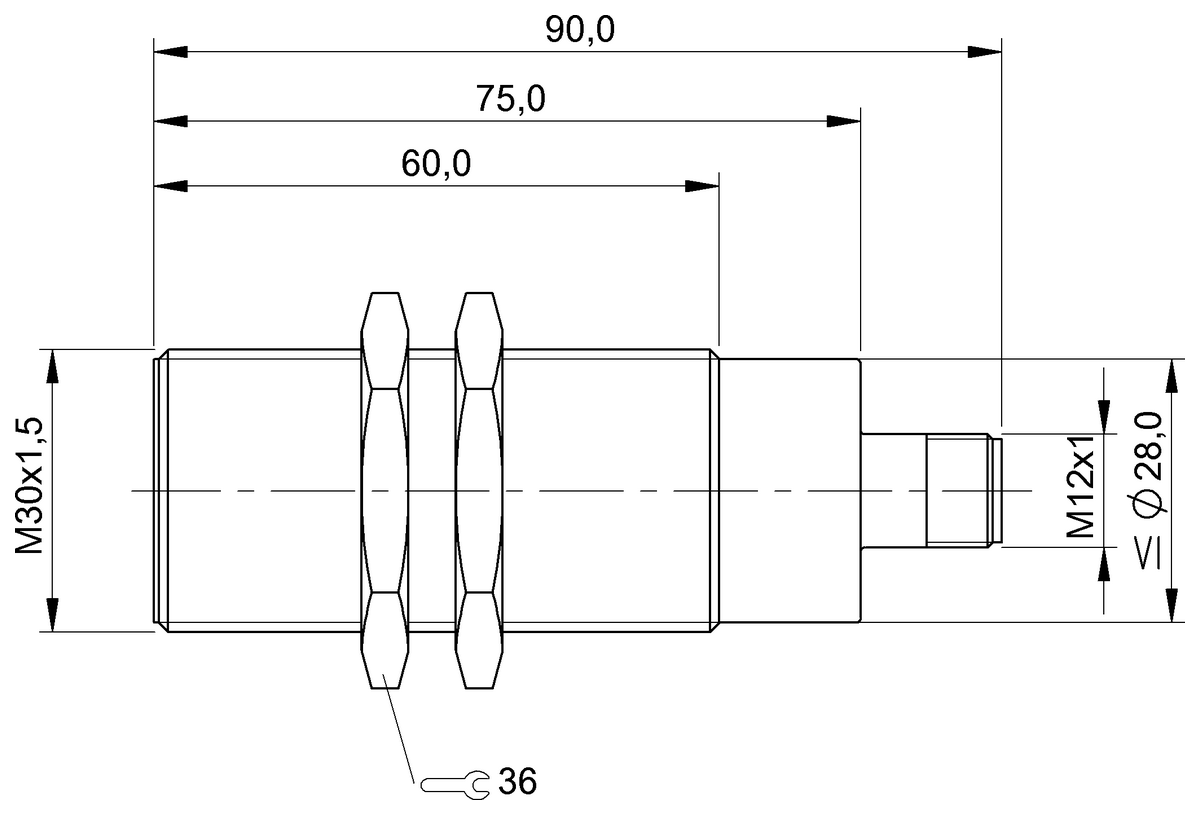

Dimension
Ø 30 x 90 mm
Style Housing
M30x1.5
Installation
for flush mounting
Range
10 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Alternative
|
|
|
|
|
|
BES02F2BES 515-327-SA20-S4-T- |
BES02F0BES 515-327-E5-T-S4175,01 AUD |
|
| Dimension | Ø 30 x 90 mm | Ø 30 x 45 mm |
|---|---|---|
| Style Housing | M30x1.5 | M30x1.5 |
| Installation | for flush mounting | for flush mounting |
| Range | 10 mm | 10 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 200 Hz | 200 Hz |
| Housing material | 1.4571 stainless steel | Stainless steel |
| Material sensing surface | PA 12 | PA 12 |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -40...85 °C | -40...105 °C |
| IP rating | IP68, according to BWN Pr. 27 | IP68, according to BWN Pr. 27 |
| Approval/Conformity |
CE WEEE |
CE UKCA cULus WEEE |
