Inductive proximity switches and proximity sensors

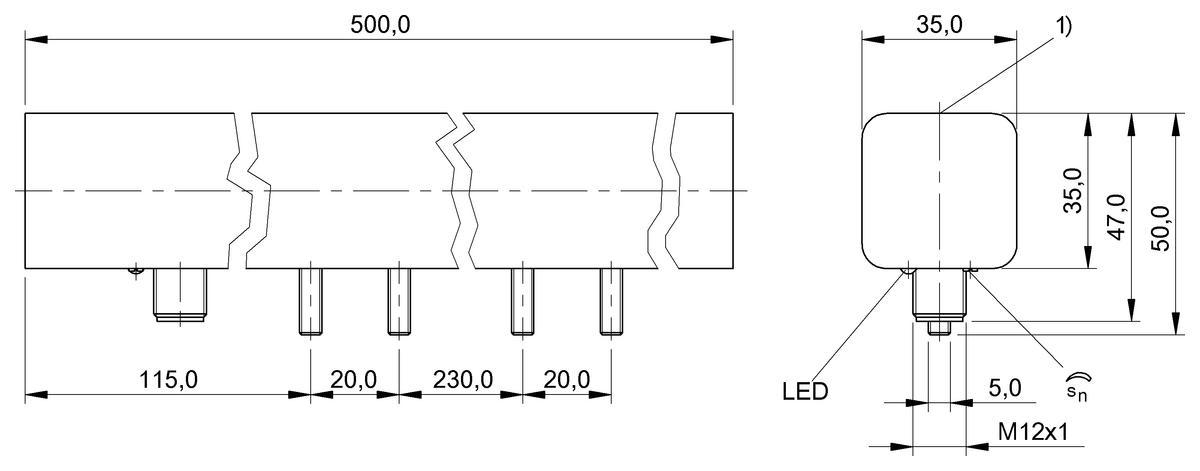

Dimension
500 x 35 x 35 mm
Style Housing
block style
Installation
non-flush
Range
30 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BES02TPBES IKU-051.23-G-S4- |
BES02TCBES IKU-011-P-1-S-S4-SA1463,45 AUD |
BES02THBES IKU-015-23-G-S4690,05 AUD |
|
| Dimension | 500 x 35 x 35 mm | 100 x 35 x 35 mm | 150 x 35 x 35 mm |
|---|---|---|---|
| Style Housing | block style | 100x35x35 | 150x35x35 |
| Installation | non-flush | non-flush | non-flush |
| Range | 30 mm | 30 mm | 30 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 30 Hz | 50 Hz | 50 Hz |
| Housing material | Plastic | Plastic | Plastic |
| Material sensing surface | Plastic | Plastic | Plastic |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP65 | IP65 | IP65 |
| Approval/Conformity |
CE EAC WEEE |
CE WEEE |
CE WEEE |
