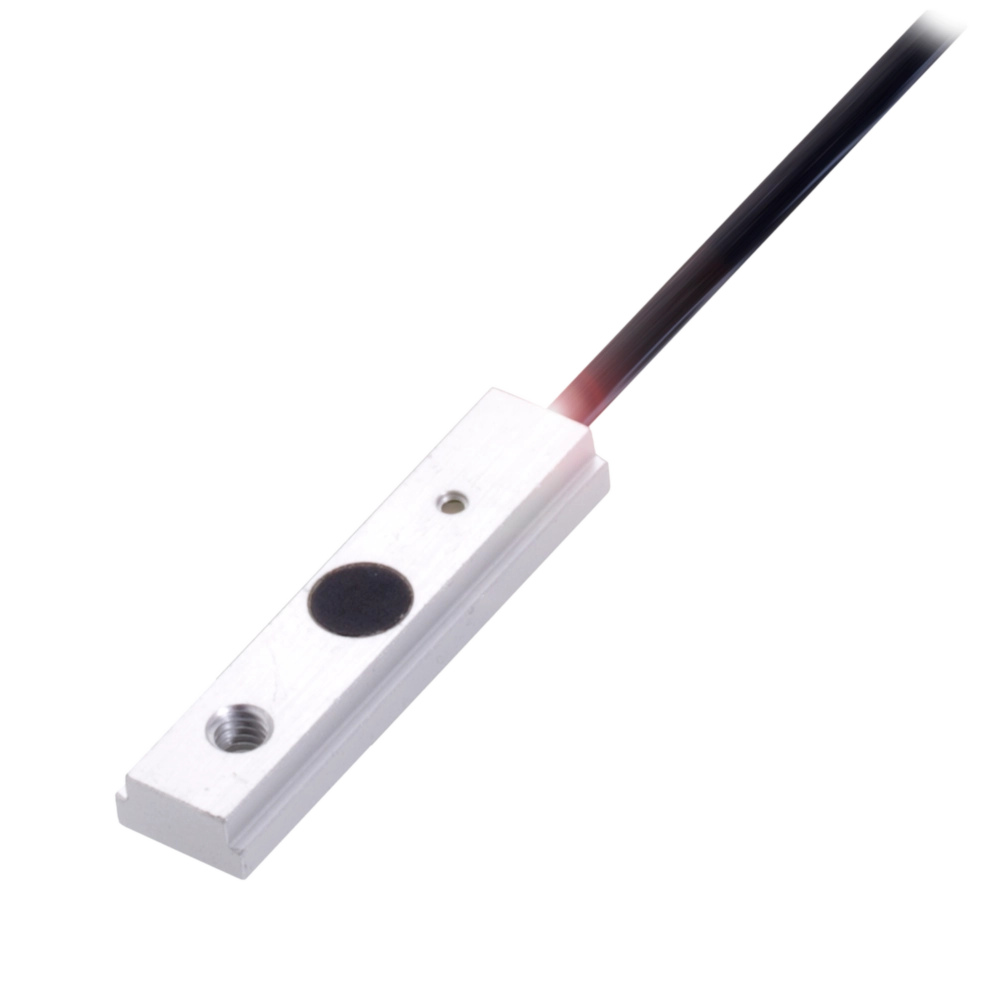

Inductive proximity switches and proximity sensors

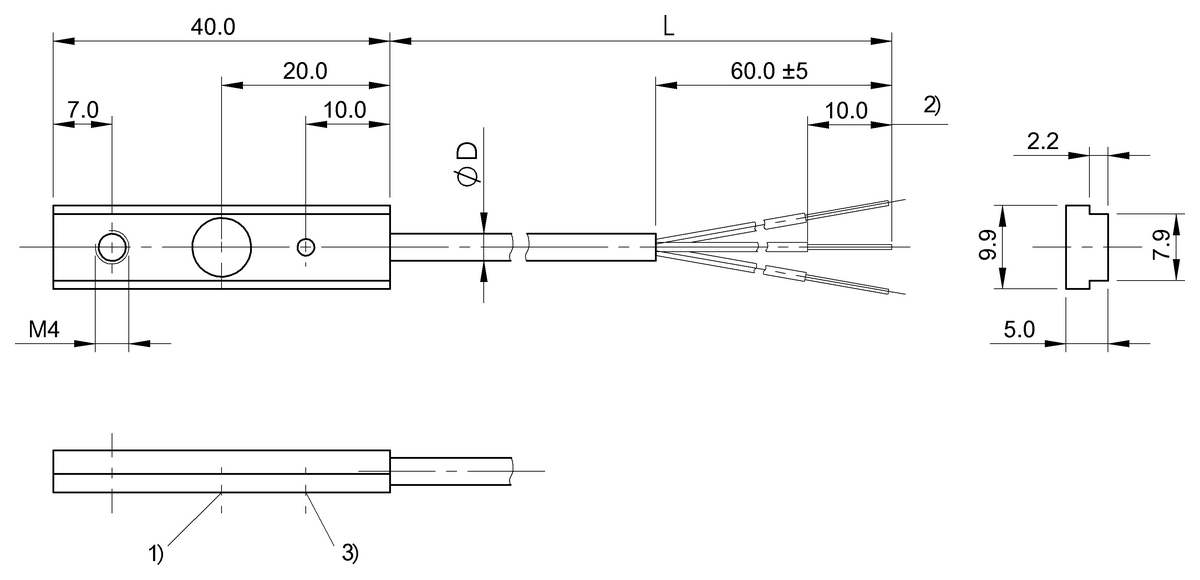

Dimension
40 x 9.9 x 5 mm
Style Housing
8x8
Installation
for flush mounting
Range
2 mm
Switching output
PNP normally closed (NC)
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Alternative
|
|
|
|
|
|
BES033KBES 516-300-S303-C-05- |
BES01T9BES Q08ZC-POC20B-BP06206,64 AUD |
|
| Dimension | 40 x 9.9 x 5 mm | 40 x 8 x 8 mm |
|---|---|---|
| Style Housing | 8x8 | 8x8 |
| Installation | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm |
| Switching output | PNP normally closed (NC) | PNP normally closed (NC) |
| Switching frequency | 1000 Hz | 3000 Hz |
| Housing material | Aluminum | Zinc, Die casting |
| Material sensing surface | PBT | PBT |
| Connection | Cable, 5.00 m, PUR | Cable, 6.00 m, PUR |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...95 °C | -25...70 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity | CE |
CE UKCA cULus WEEE |
