Inductive proximity switches and proximity sensors

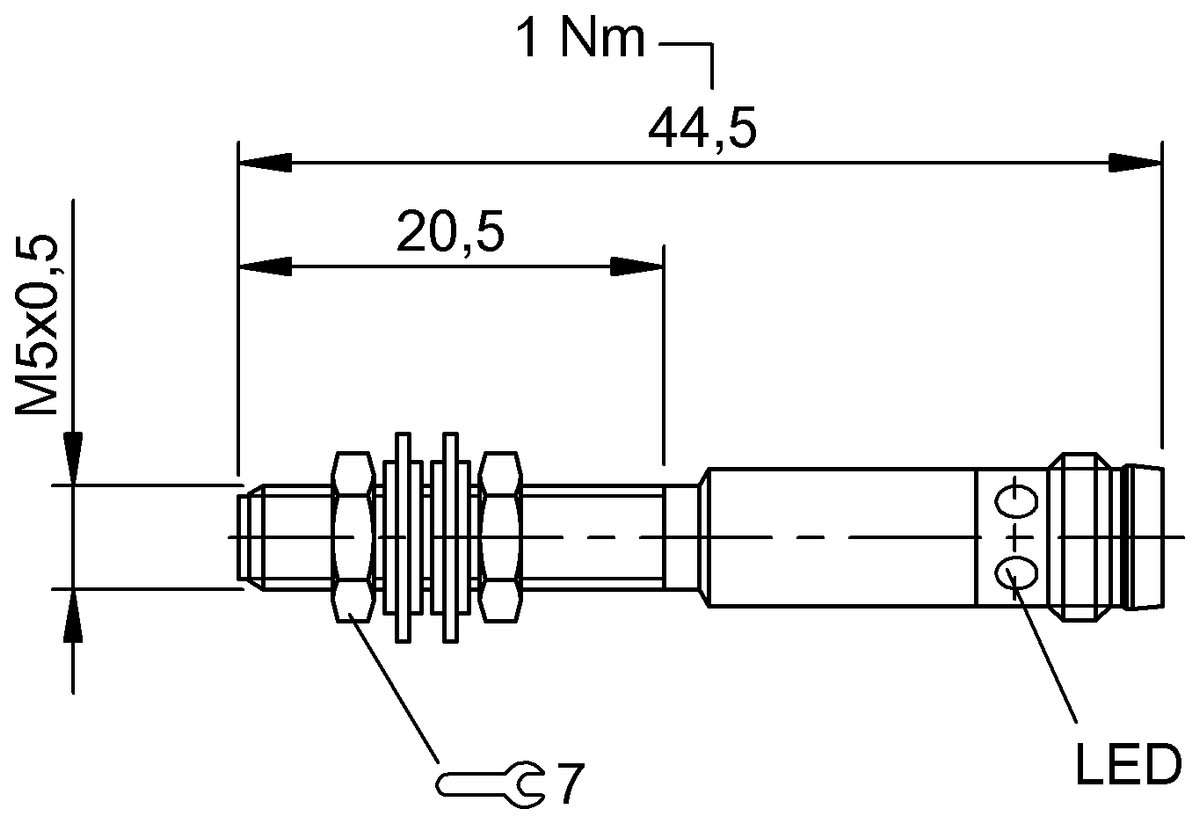

Dimension
Ø 5 x 44.5 mm
Style Housing
M5x0.5
Installation
for flush mounting
Range
0.8 mm
Switching output
PNP normally open (NO)
Recommended alternative
BES00H2
Inductive proximity switches and proximity sensors
BES 516-3005-E5-C-S49
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
BES033TBES 516-3005-SA3-E5-C-S49- |
BES00H2BES 516-3005-E5-C-S49184,52 AUD |
BES05P5BES M05EC2-PSC08B-S49G221,39 AUD |
|
| Dimension | Ø 5 x 44.5 mm | Ø 5 x 41 mm | Ø 5 x 44.5 mm |
|---|---|---|---|
| Style Housing | M5x0.5 | M5x0.5 | M5x0.5 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 0.8 mm | 0.8 mm | 0.8 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 1000 Hz | 5000 Hz | 5000 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 6...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE EAC |
cULus CE UKCA WEEE |
cULus CE UKCA WEEE |
