Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
BES0376BES 516-369-G-SA2-S49-00,05374,04 AUD |
BES0377BES 516-369-G-SA2-S49-00,1374,04 AUD |
BES0378BES 516-369-G-SA2-S49-00,32374,04 AUD |
|

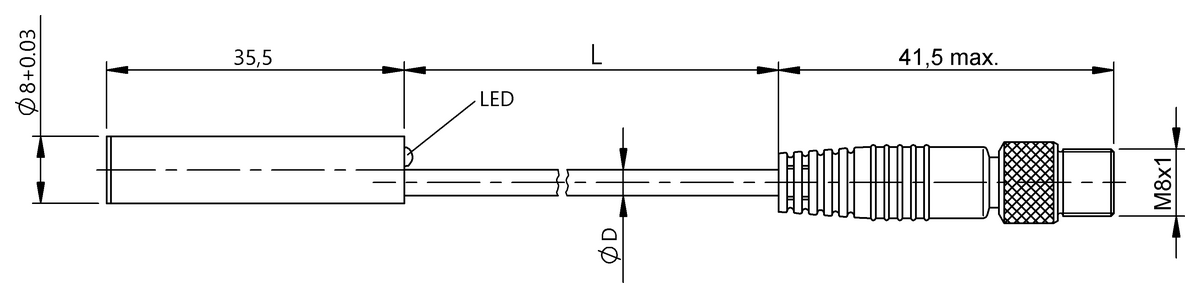

| Dimension | Ø 8 x 35.5 mm | Ø 8 x 35.5 mm | Ø 8 x 35.5 mm |
|---|---|---|---|
| Style Housing | D8.0 | D8.0 | D8.0 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm | 2 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 800 Hz | 800 Hz | 800 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.05 m, PUR | Cable with connector, M8x1-Male, 3-pin, 0.10 m, PUR | Cable with connector, M8x1-Male, 3-pin, 0.32 m, PUR |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA WEEE |
CE UKCA WEEE |
Only CAD model download is supported
