BES0580
Inductive standard sensors with preferred types
Typecode:
BES M12EI-PAC40F-BV03
Product description
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions.
The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
- Dimension
- Ø 12 x 63 mm
- Style
- M12x1
- Installation
- non-flush
- Range
- 4 mm
- Switching output
- PNP NO/NC
- Switching frequency
- 2500 Hz
- Housing material
- Stainless steel
- Material sensing surface
- PBT
- Connection
- Cable, 3 m, PVC
- Operating voltage Ub
- 10...30 VDC
- Ambient temperature
- -40...85 °C
- IP rating
- IP68
- Approval/Conformity
- cULus, CE, EAC, WEEE
Technical documentation
-
Datasheet
-
MTTF Certificate
-
Disposal
Product documentation
-
Certificate
-
Declaration of Compliance
-
Mounting/Installation/Configuration

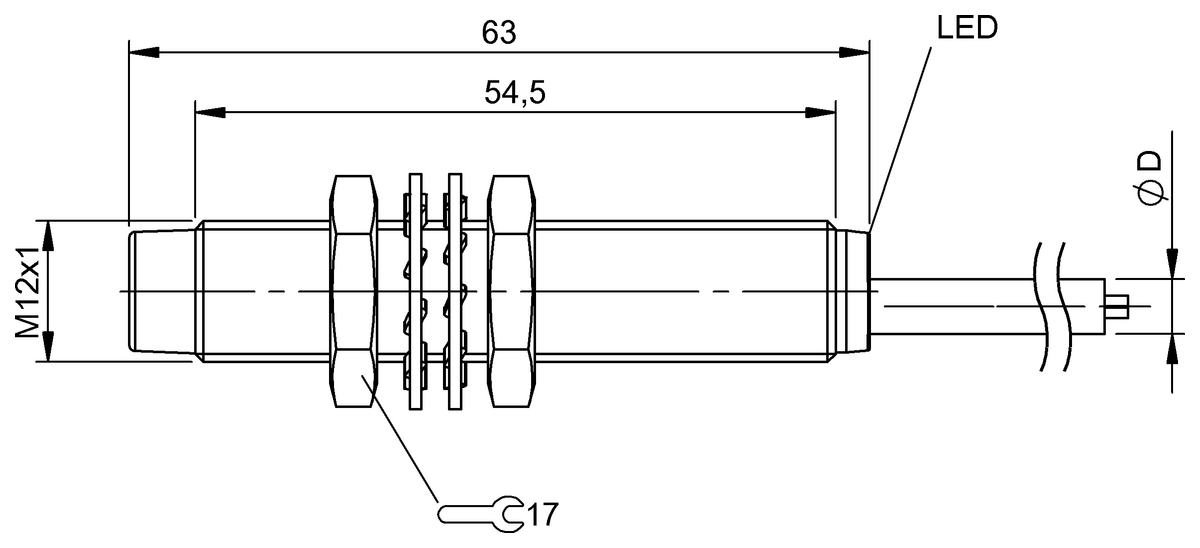

Technical drawing
-

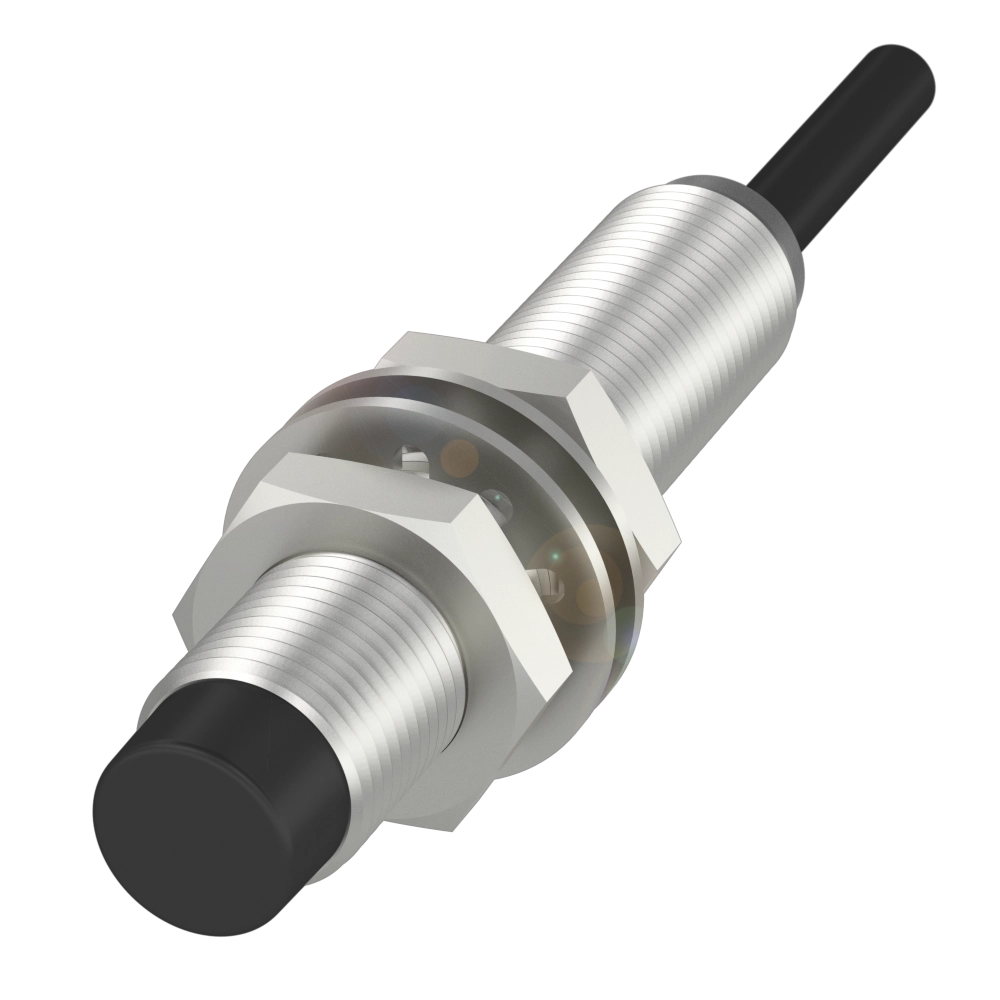

Product View
Heartbeat® power supplies with IO-Link interface
Universal mounting system
Electrical accessories
Nuts
- ETIM 4.0
- EC002714
- ETIM 5.0
- EC002714
- ETIM 6.0
- EC002714
- ETIM 7.0
- EC002714
- UNSPSC 11
- 41111926
- UNSPSC 7.0901
- 41111926
- eCl@ss 6.0
- 27-27-01-01
- eCl@ss 8.1
- 27-27-01-01
