BMF0018

Name: BMF0018
Brand: Balluff
SKU: BMF0018
Availability: OutOfStock

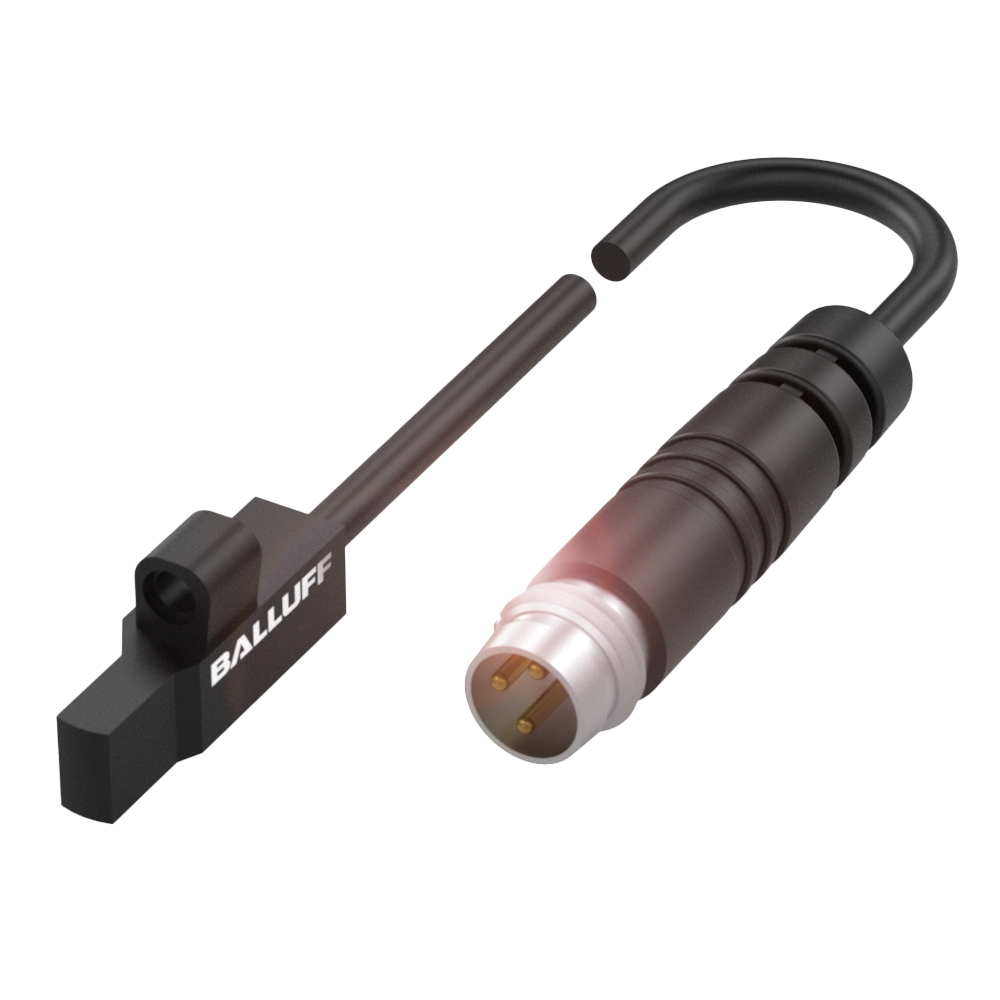

BMF 103K-PS-C-2-S49-00,2

Cylinder sensors for multiple slot shapes

Slot type

variable

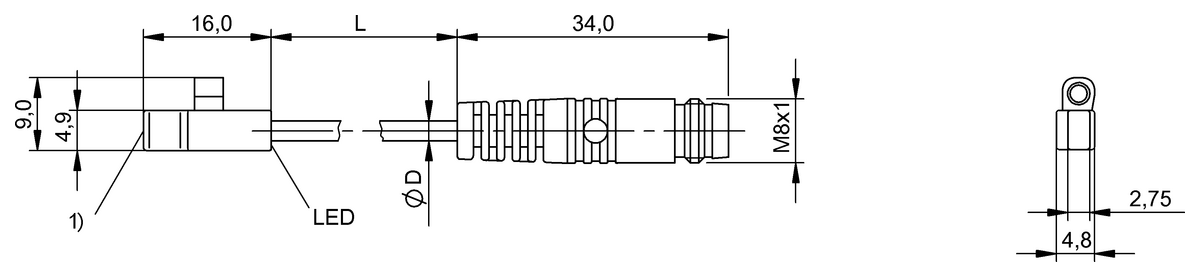

Dimension

5 x 3 x 16 mm

Principle of operation

Magnetic field sensor

Connection

M8x1-Male, 3-pin

Cable

PUR, 0.2 m

Recommended alternative

Estimated availability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product?

	Discontinued	Recommended alternative	Further alternative	Further alternative

	BMF0018 BMF 103K-PS-C-2-S49-00,2 -	BMF00KJ BMF 103K-PS-C-2A-S49-00,2 143,39 AUD	BMF001P BMF 103K-PS-C-2A-SA7-S49-00,3 197,61 AUD	BMF001L BMF 103K-PS-C-2A-SA2-S49-00,3 156,71 AUD
Slot type	variable	variable	variable	variable
Dimension	5 x 3 x 16 mm	9 x 4.8 x 16 mm	9 x 4.8 x 16 mm	9 x 4.8 x 16 mm
Principle of operation	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor
Connection	M8x1-Male, 3-pin	M8x1-Male, 3-pin	M8x1-Male, 3-pin	M8x1-Male, 3-pin
Cable	PUR, 0.2 m	PUR, 0.2 m	PUR, 0.3 m	PUR, 0.3 m
Application	Optimized response path especially suited for short-stroke cylinders.	Optimized response path especially suited for short-stroke cylinders.	radially magnetized magnets (Schunk)	Optimized response path especially suited for short-stroke cylinders.
Mounting part	Mounting bracket BMF 103-HW*	-	Mounting bracket BMF 103-HW*	Mounting bracket BMF 103-HW*
Housing material	LCP	PBT	LCP	PBT
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	10000 Hz	30000 Hz	7000 Hz	30000 Hz
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...85 °C	-25...85 °C	-25...85 °C	-25...85 °C
IP rating	IP67	IP67	IP67	IP67
Approval/Conformity	CE cULus	cULus CE UKCA WEEE	CE UKCA cULus WEEE	cULus CE UKCA WEEE
