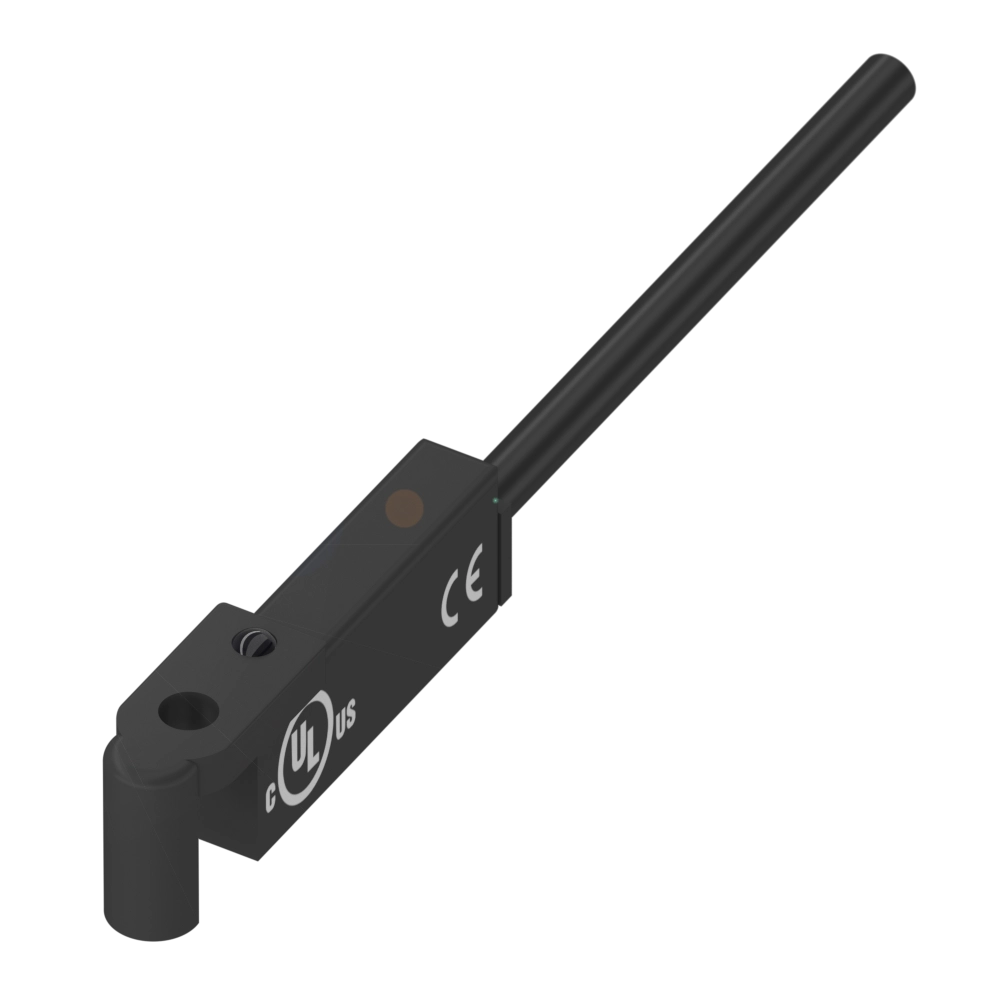

BMF0064

Magnetic field sensors for multiple slot shapes

Typecode:

BMF 305K-R-US-L-3-03

Loading...

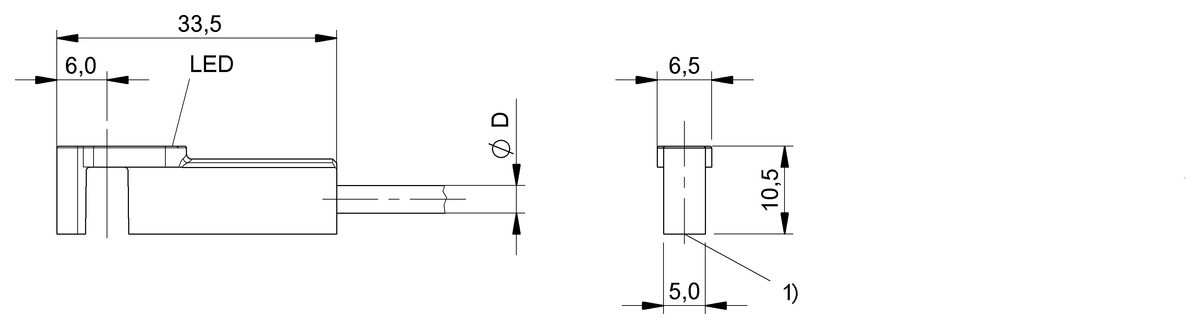

Dimension
33.5 x 5 x 10.5 mm
Principle of operation
Reed switch (2-wire)
Cable
PVC, 3 m
Application
larger actuators
Fastening detail
Mounting bracket BMF 305-HW*
Housing material
LCP
Switching output
Reed switch (2-wire), polarized Normally open (NO)
Switching frequency
1000 Hz
Operating voltage Ub
6...240 VDC/6...240 VAC
Ambient temperature
-20...70 °C
IP rating per IEC 60529
IP65
Approval/Conformity
CE
WEEE
Technical documentation
  • Datasheet

  • MTTF Certificate

Product documentation
No recommended accessories available.
ECLASS 10.1
27-27-01-04
ECLASS 11.0
27-27-01-04
ECLASS 4.1
27-27-01-04
ECLASS 5.1.3
27-27-01-04
ECLASS 5.1.4
27-27-01-04
ECLASS 6.0
27-27-01-04
ECLASS 8.1
27-27-01-04
ECLASS 9.0
27-27-01-04
ECLASS 9.1
27-27-01-04
ETIM 4.0
EC002544
ETIM 5.0
EC002544
ETIM 6.0
EC002544
ETIM 6.0
EC002544
UNSPSC 11
41111916
UNSPSC 7.0901
41111916
