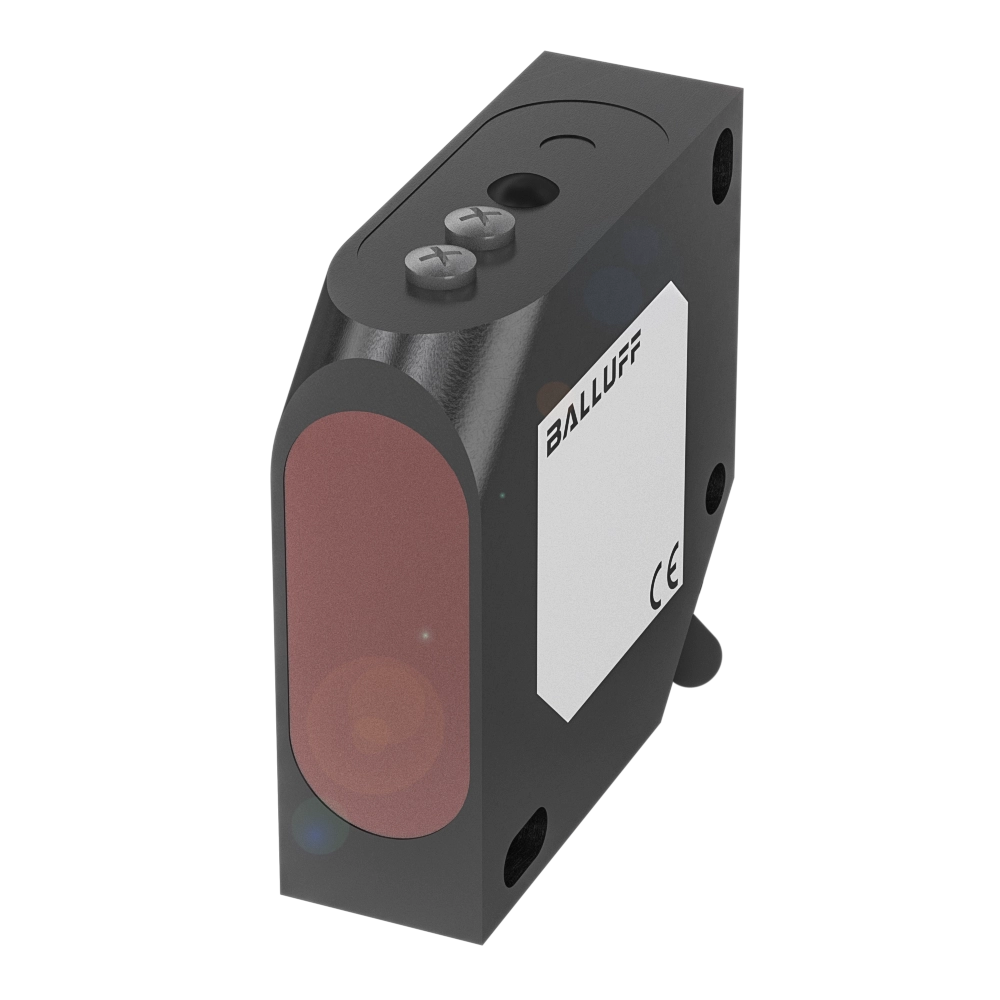

Similar Illustration

BOD0003

Name: BOD0003
Brand: Balluff
SKU: BOD0003
Price: 1682.8 AUD
Availability: OutOfStock

BOD 26K-LA02-C-06

Distance sensors with plastic housing and red light laser and PMMA as material for the sensing surface

Series

26K

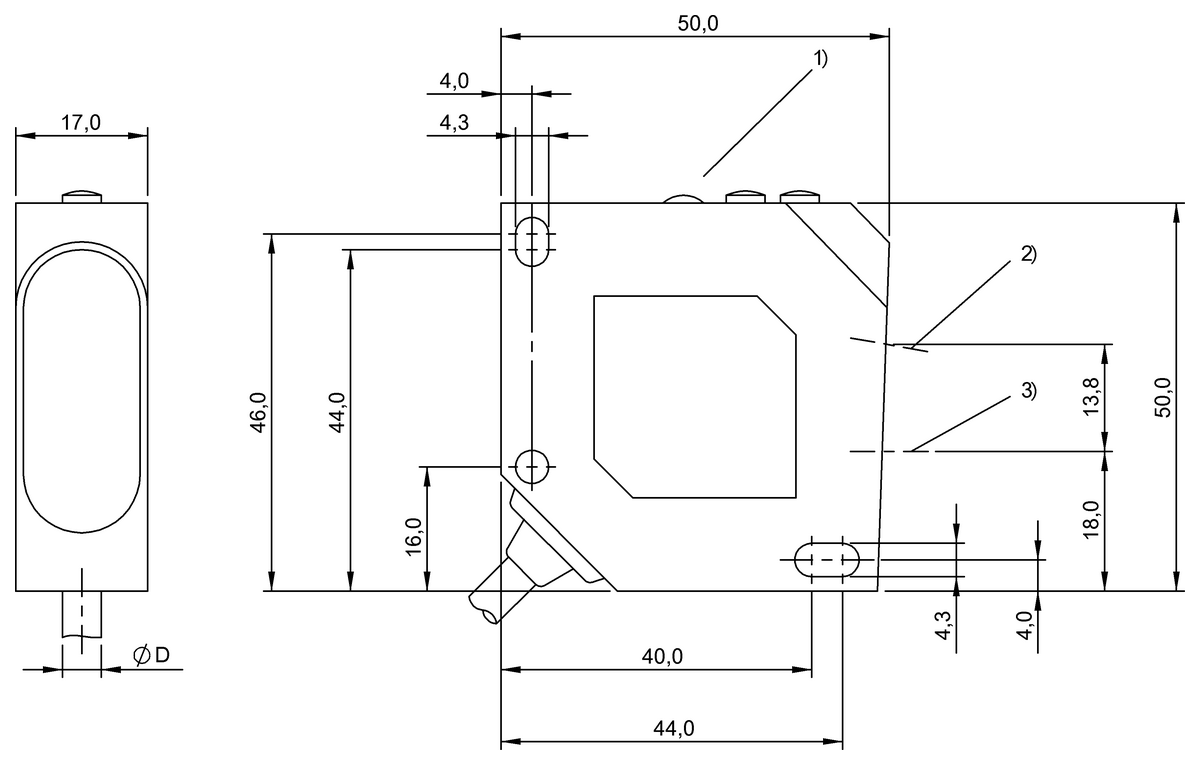

Dimension

17 x 50 x 50 mm

Interface

Analog, voltage 0…10 V linear rising

Principle of operation

Photoelectric distance sensor

Principle of optical operation

Triangulation

Do you have any questions about the product?

		Alternative	Further alternative

	BOD0003 BOD 26K-LA02-C-06 1.682,80 AUD	BOD0001 BOD 26K-LA01-C-06 1.682,80 AUD	BOD0004 BOD 26K-LA02-S4-C 1.625,01 AUD
Series	26K	26K	26K
Dimension	17 x 50 x 50 mm	17 x 50 x 50 mm	17 x 50 x 50 mm
Interface	Analog, voltage 0…10 V linear rising	Analog, voltage 0…10 V linear rising	Analog, voltage 0…10 V linear rising
Principle of operation	Photoelectric distance sensor	Photoelectric distance sensor	Photoelectric distance sensor
Principle of optical operation	Triangulation	Triangulation	Triangulation
Beam characteristic	Divergent	Divergent	Divergent
Light type	Laser red light	Laser red light	Laser red light
Light spot size	Ø 0.8 mm at 65 mm	Ø 0.8 mm at 65 mm	Ø 0.8 mm at 65 mm
Range	45...85 mm	45...85 mm	45...85 mm
Accuracy	±1 % FS	±1 % FS	±1 % FS
Resolution	≤ 20 µm	≤ 80 µm	≤ 20 µm
Connection	Cable, 6.00 m, PVC	Cable, 6.00 m, PVC	Connector, M12x1-Male, 4-pin
Housing material	ABS	ABS	ABS
Operating voltage Ub	18...28 VDC	18...28 VDC	18...28 VDC
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
