Fiber-based devices for plastic and glass fibers
Series
74K
Dimension

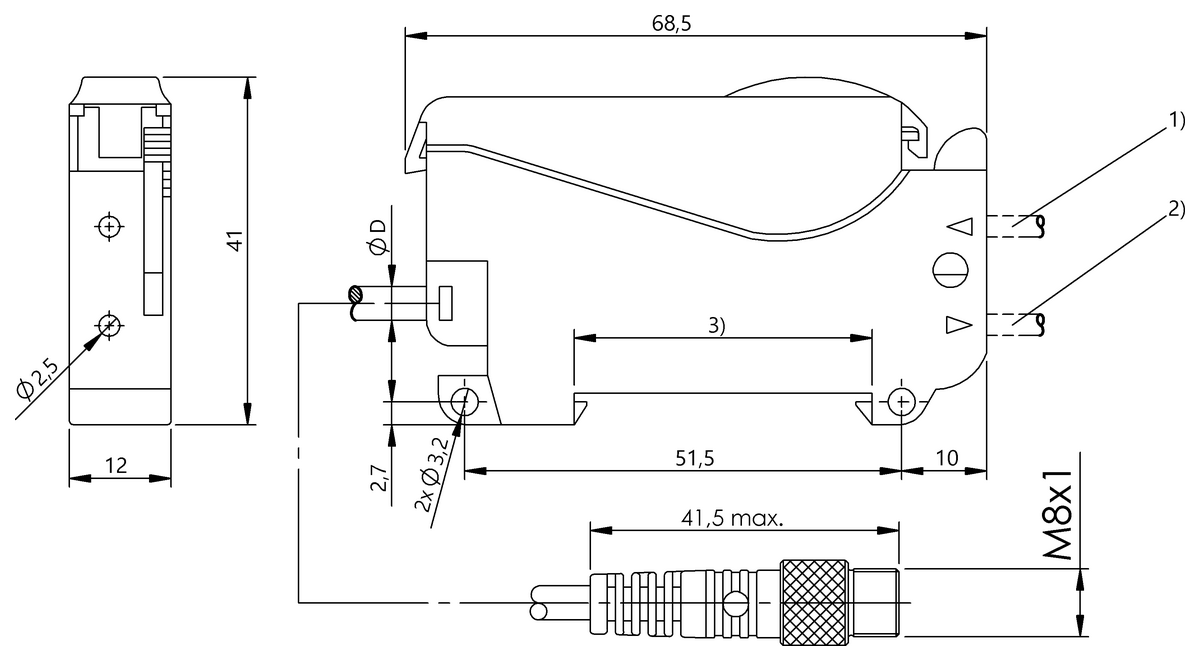

12 x 41 x 68.5 mm
Interface
PNP/NPN normally open/normally closed (NO/NC)
Principle of operation
Fiber optic device
Setting
Time function
Delay time
Switching freq. 1000/666 Hz
Switching output PNP/NPN
Hysteresis
Light-on/dark-on
Sensitivity (Sn)
Delay time
Switching freq. 1000/666 Hz
Switching output PNP/NPN
Hysteresis
Light-on/dark-on
Sensitivity (Sn)
Recommended alternative
BFB0006
Fiber-based devices for plastic and glass fibers
BFB 75K-002-P-S75
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BOS003NBOS 74K-UU-1FR-BO-Z-S49-00,2- |
BFB0006BFB 75K-002-P-S75418,95 AUD |
|
| Series | 74K | 75K |
|---|---|---|
| Dimension | 12 x 41 x 68.5 mm | 10.4 x 35.4 x 84 mm |
| Interface | PNP/NPN normally open/normally closed (NO/NC) | PNP normally open/normally closed (NO/NC) |
| Principle of operation | Fiber optic device | Fiber optic device |
| Setting |
Time function Delay time Switching freq. 1000/666 Hz Switching output PNP/NPN Hysteresis Light-on/dark-on Sensitivity (Sn) |
LCD read direction Time function Factory setting (Reset) Mode normal/fine/fast/far Duration of single pulse Rated switching distance (Sn), 2 values Display on/off Delay time Key disable on/off Light-on/dark-on Sensitivity (Sn) |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Light type | LED, red light | LED, red light |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.20 m, PUR | Connector, M8x1-Male, 4-pin |
| Housing material | PBT | ABS |
| Switching frequency | 1000 Hz | 8000 Hz /1000 Hz/125 Hz |
| Approval/Conformity |
CE WEEE |
cULus CE WEEE |
