Through-beam sensors
Series
18MR

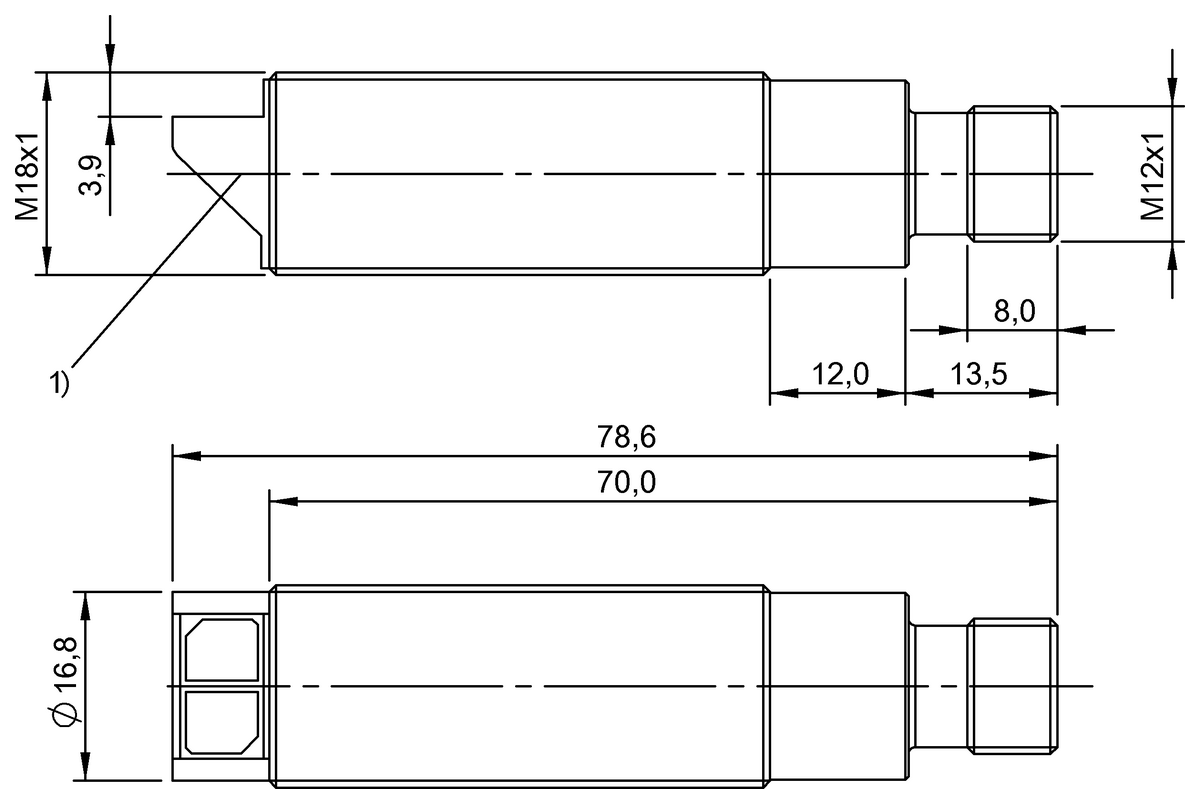

Dimension
Ø 18 x 18 mm
Input function
Test (Emitter off)
Principle of operation
Photoelectric sensor
Principle of optical operation
Through-beam sensor (Emitter)
Recommended alternative
BOS026N
Through-beam sensors
BOS 18MR-XT-RS20-S4
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BOS010FBLS 18MR-XX-1P-E5-L-S4- |
BOS026NBOS 18MR-XT-RS20-S4158,52 AUD |
|
| Series | 18MR | 18MR |
|---|---|---|
| Dimension | Ø 18 x 18 mm | Ø 18 x 92 mm |
| Input function | Test (Emitter off) | - |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (Emitter) | Through-beam sensor (Emitter) |
| Light type | LED, red light | LED, red light |
| Range | 0...20 m | 0...20 m |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, Chrome-plated | Brass, nickel-plated |
| Material sensing surface | Glass | Glass |
| Operating voltage Ub | 10...36 VDC | 10...30 VDC |
| Approval/Conformity |
CE EAC WEEE |
CE cULus WEEE UKCA |
