Cylindrical miniature version
Inductive proximity switches and proximity sensors – BES00H6

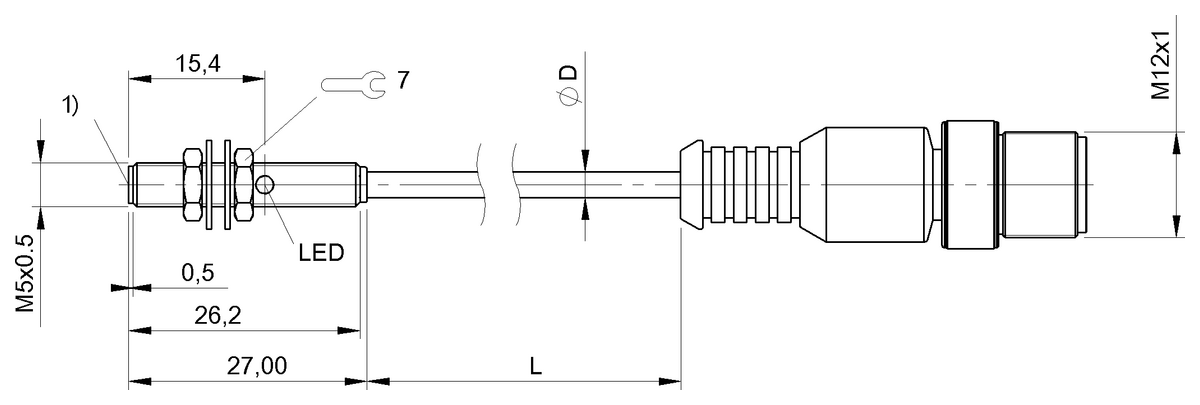

The inductive sensor BES 516-3005-G-E4-C-S4-00,2, order code BES00H6, has a stainless steel housing with dimensions of Ø 5 x 27 mm and an M5x0.5 housing style. It is intended for flush mounting and provides a range of 1.5 mm. The sensor uses a PNP normally open (NO) switching output with a switching frequency of 5000 Hz. The sensing surface is made of PBT.
Connection is provided by a 0.20 m PUR cable with an M12x1 male, 4-pin connector. The operating voltage is 10...30 VDC, and the ambient temperature range is -25...70 °C. The sensor has an IP67 rating. Its approvals and conformity markings are CE, UKCA, cULus and WEEE.
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
| BES 516-3005-G-E4-C-S4-00,2 | BES 516-3005-G-E4-C-S4-00,3 | BES 516-3005-G-E4-C-S4-00,5 | |
|
95,82 EUR
List price
|
95,82 EUR
List price
|
96,37 EUR
List price
|
|
| Dimension | Ø 5 x 27 mm | Ø 5 x 27 mm | Ø 5 x 27 mm |
|---|---|---|---|
| Style Housing | M5x0.5 | M5x0.5 | M5x0.5 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 1.5 mm | 1.5 mm | 1.5 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 5000 Hz | 5000 Hz | 5000 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.20 m, PUR | Cable with connector, M12x1-Male, 4-pin, 0.30 m, PUR | Cable with connector, M12x1-Male, 4-pin, 0.50 m, PUR |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
| Principle of operation | Inductive sensor | Inductive sensor | Inductive sensor |
