Inductive proximity switches and proximity sensors – BES01P5

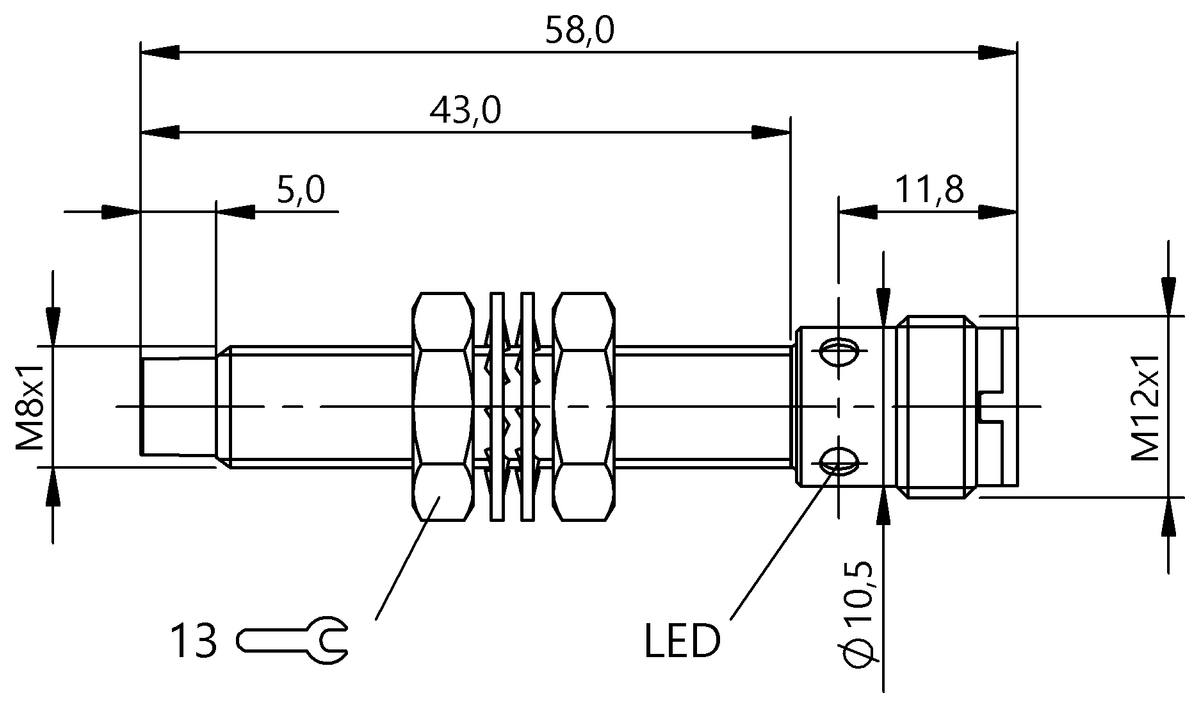

The BES M08EG-NSC25F-S04G is an inductive sensor with the order code BES01P5. It has an M8x1 housing with a diameter of 8 mm and a length of 58 mm. The stainless steel housing is designed for non-flush installation and provides a range of 2.5 mm. The sensing surface is made of PBT.
The sensor has an NPN normally open (NO) switching output and a switching frequency of 2000 Hz. It operates with an operating voltage Ub of 10...30 VDC and is connected via an M12x1-Male, 4-pin connector. The sensor is rated for an ambient temperature range of -25...70 °C and has an IP68 rating. Approvals and conformity include CE, UKCA, cULus and WEEE.
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
| BES M08EG-NSC25F-S04G | BES M08EH-NSC40F-S04G | BES M08ED-NSC25F-S04G | |
|
71,28 EUR
List price
|
46,72 EUR
List price
|
71,28 EUR
List price
|
|
| Dimension | Ø 8 x 58 mm | Ø 8 x 63 mm | Ø 8 x 43 mm |
|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 |
| Installation | non-flush | non-flush | non-flush |
| Range | 2.5 mm | 4 mm | 2.5 mm |
| Switching output | NPN normally open (NO) | NPN normally open (NO) | NPN normally open (NO) |
| Switching frequency | 2000 Hz | 4000 Hz | 2000 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C, Temperature drift max. (% Sr) > 15% valid from 50...70 °C | -25...70 °C |
| IP rating | IP68 | IP68 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
| Principle of operation | Inductive sensor | Inductive sensor | Inductive sensor |
