Fork Sensors with IO-Link

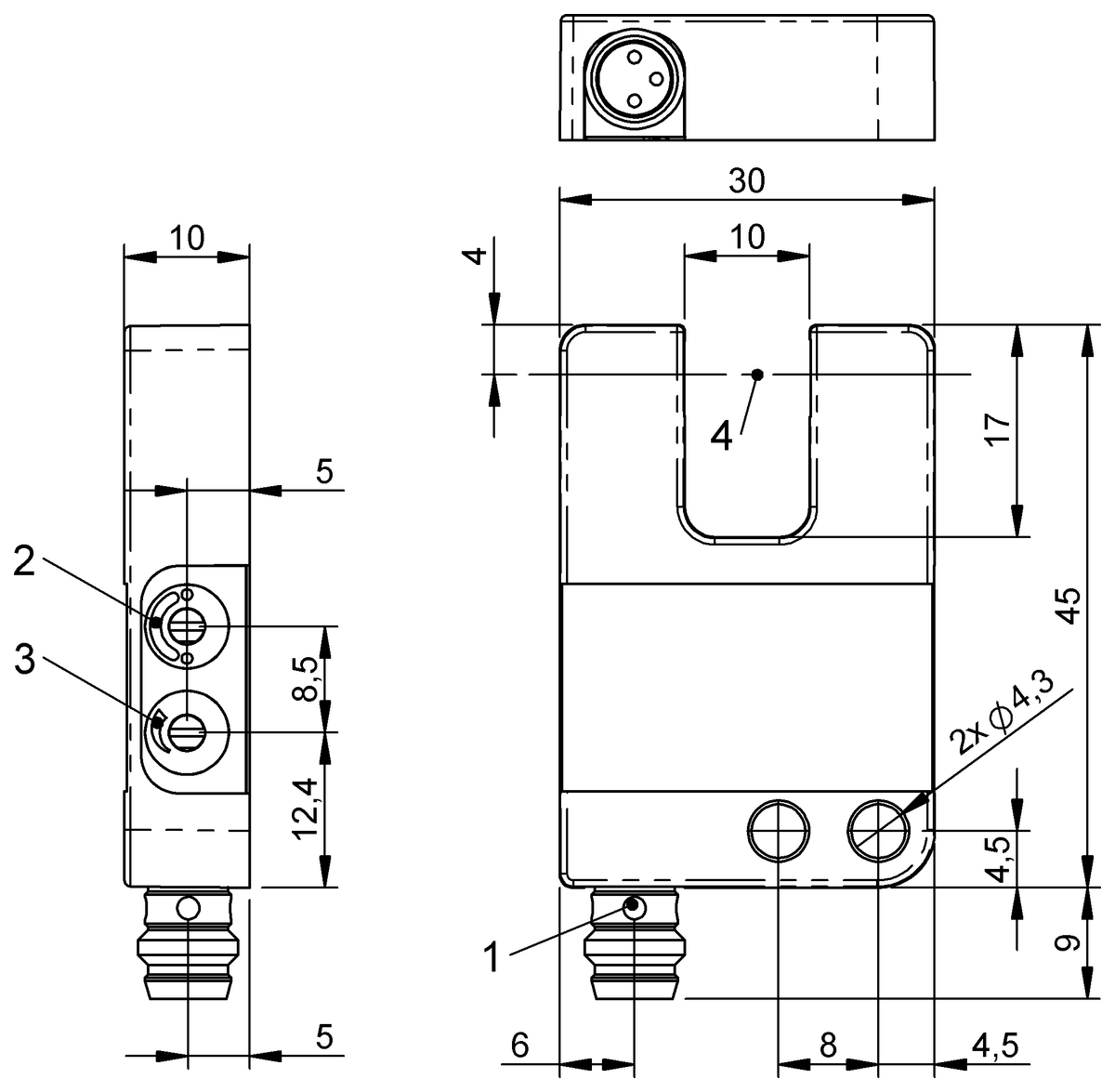

Dimension
10 x 30 x 54 mm
Fork opening
10 mm
Interface
IO-Link-Device: 1.1.3
Push-Pull/IO-Link: NO(PNP)/NC(NPN)
Push-Pull/IO-Link: NO(PNP)/NC(NPN)
Principle of operation
Fork sensor
Principle of optical operation
Through-beam sensor
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Germany – Balluff GmbH, Neuhausen a.d.F. Some of the product descriptions on this website are generated automatically from structured product data.
Fork sensors and angle sensors – BGL0083
The BGL 10A-101-S49 fork sensor has a dimension of 10 × 30 × 54 mm and a fork opening of 10 mm. Its optical principle is through-beam sensing with a divergent beam characteristic. A red LED provides the light, and the light spot has a diameter of Ø 0.85 mm at the light exit. The sensor operates with an IO-Link Device interface, version 1.1.3, and provides a Push-Pull switching output with NO (PNP) and NC (NPN) operation.
The operating voltage is 10…30 VDC. Connection is via a 3-pin M8x1 male connector. The housing comprises black-coated zinc die casting, PUR and PA 6.6; the sensing surface is made of glass. The BGL 10A-101-S49 carries CE, UKCA and cULus approvals and conforms to WEEE requirements.
