Fork Sensors with IO-Link

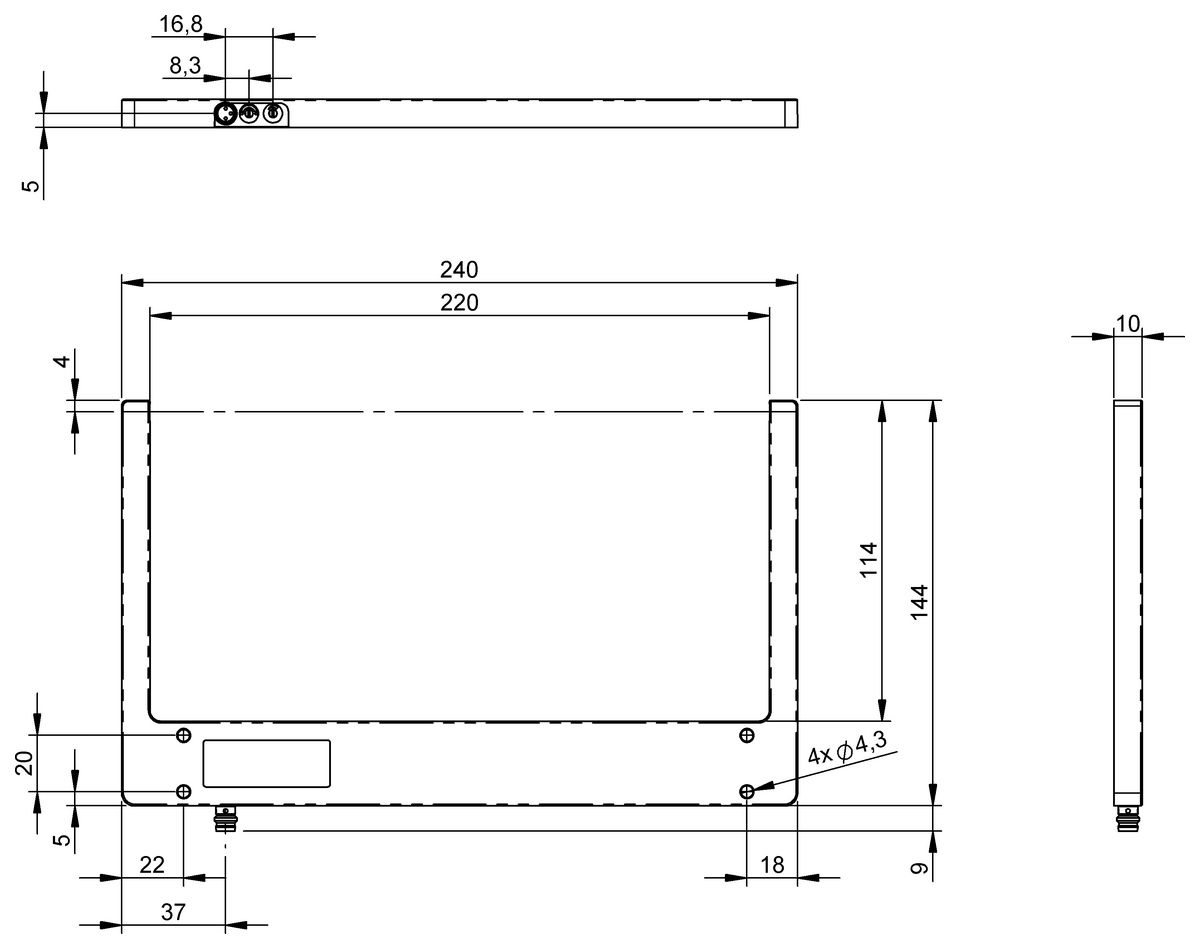

Dimension
10 x 240 x 153 mm
Fork opening
220 mm
Interface
IO-Link-Device: 1.1.3
Push-Pull/IO-Link: NO(PNP)/NC(NPN)
Push-Pull/IO-Link: NO(PNP)/NC(NPN)
Principle of operation
Fork sensor
Principle of optical operation
Through-beam sensor
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Germany – Balluff GmbH, Neuhausen a.d.F. Some of the product descriptions on this website are generated automatically from structured product data.
Fork sensors and angle sensors – BGL008T
The BGL 220A-107-S49 fork sensor, order code BGL008T, has dimensions of 10 x 240 x 153 mm and a fork opening of 220 mm. It operates as a through-beam sensor with a divergent beam characteristic and LED infrared light. The light spot size at the light exit is Ø 2.5 mm. The sensor supports IO-Link V1.1.3 and provides a Push-Pull switching output with NO (PNP)/NC (NPN) operation. Its connection is a 3-pin M8x1 male connector. The housing consists of black-coated zinc die casting, PUR and PA 6.6; the sensing surface is coated glass. The operating voltage is 10...30 VDC. Approvals and conformity include CE, UKCA, cULus and WEEE.
