FHW005W

C-mount lenses – FHW005W

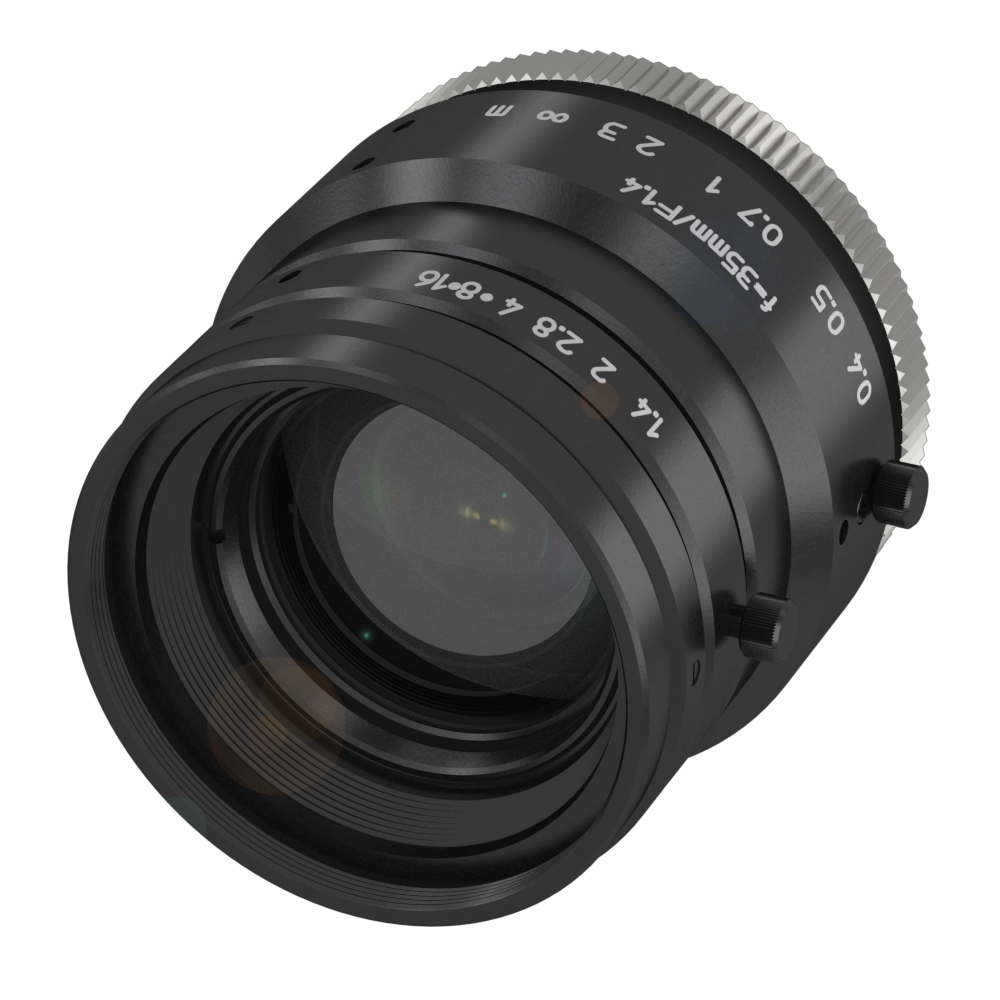

The Kowa LM35HC C-mount lens, order code FHW005W, has a focal length of 35 mm, a back focal length of 17.526 mm and an aperture of 1.4...16. Distortion is -0.50 %, while the minimum object distance is 300 mm. The horizontal angle of view is 20.9° and the vertical angle of view is 15.8°. These angles of view were determined at the maximum permissible sensor size of 1" in 4:3 format. The lens supports an image resolution of 5 MP and has no filter.

The lens uses a C-Mount and mounting threads. Its dimensions are Ø 43 x 48.5 mm, with a weight of 135 g and an IP20 rating. It is designed for an ambient temperature range of -10...50 °C.
