Only CAD model download is supported

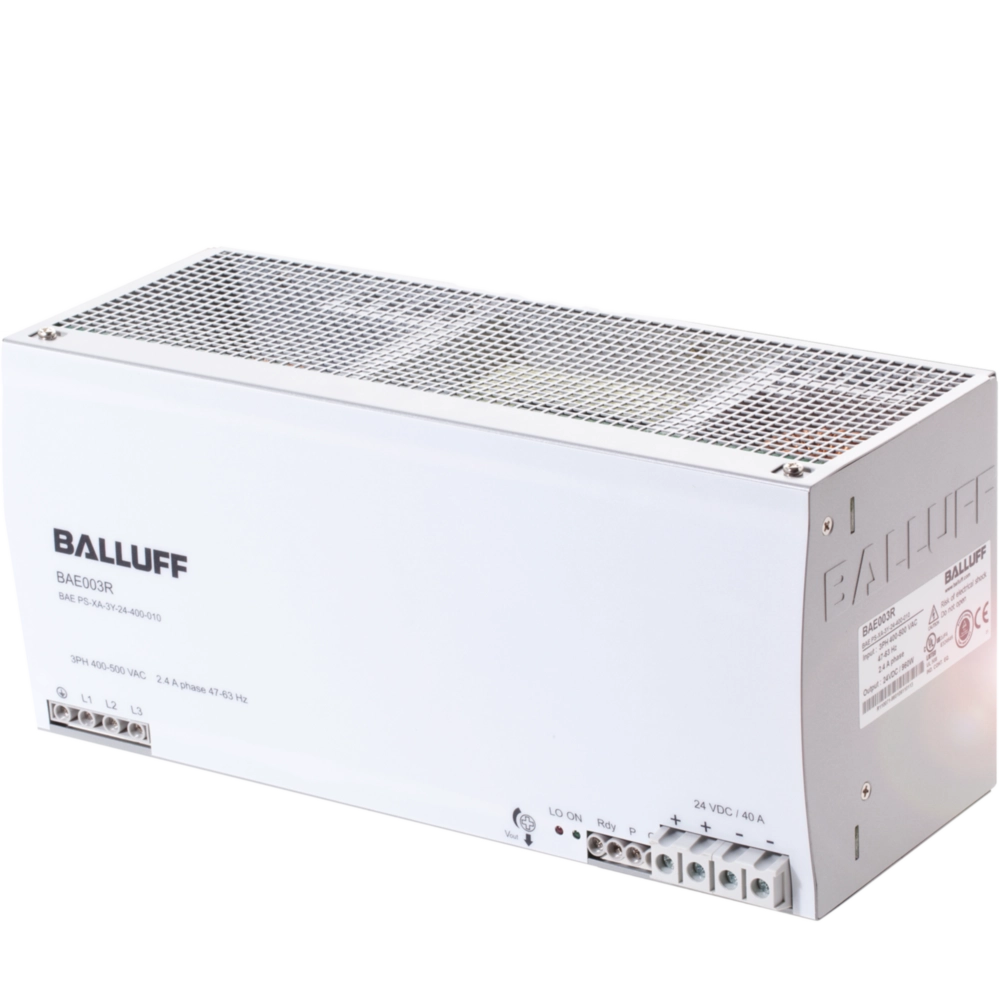

Power supplies for the control cabinet

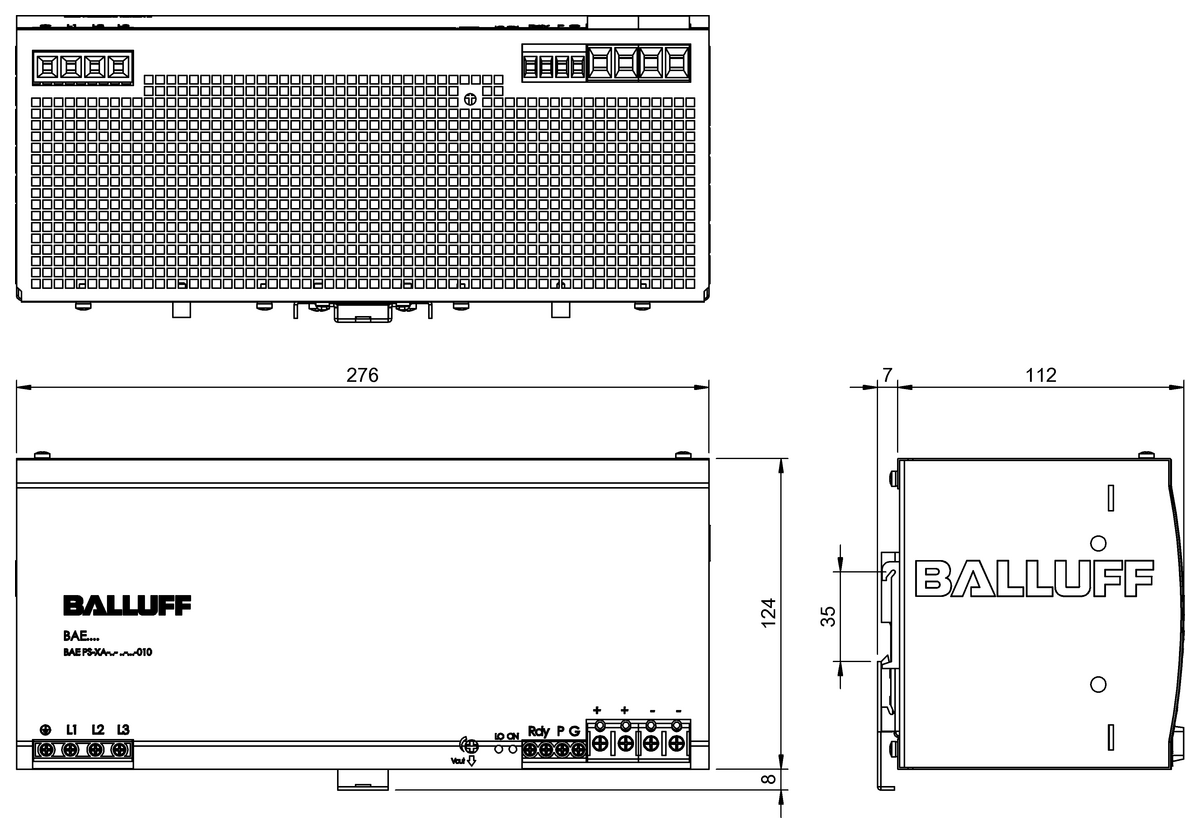

Dimension
275.8 x 126.2 x 111.9 mm
Version
DIN rail
Mounting part
DIN rail mounting
Housing material
Metal
Connection
Terminal, 0.25...4 mm²;0.5...10 mm²
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
| BAE PS-XA-3Y-24-400-010 | BAE PS-XA-3Y-24-400-023 | |
|
-
List price
|
507.99 USD
List price
|
|
| Dimension | 275.8 x 126.2 x 111.9 mm | 255 x 121 x 117.3 mm |
|---|---|---|
| Version | DIN rail | DIN rail |
| Mounting part | DIN rail mounting | DIN rail mounting |
| Housing material | Metal | Metal |
| Connection | Terminal, 0.25...4 mm²;0.5...10 mm² | Terminal, 0.25...4 mm²;0.5...10 mm² |
| Input voltage | 400…500 VAC, Three-phase | 400…500 VAC, Three-phase |
| Rated output voltage DC | 24 V | 24 V |
| Rated output current | 40 A | 40 A |
| IP rating | IP20 | IP20 |
| Approval/Conformity |
CE CCC cULus WEEE |
CE cURus cULus WEEE |
| Ambient temperature | -40...70 °C | -25...80 °C |
