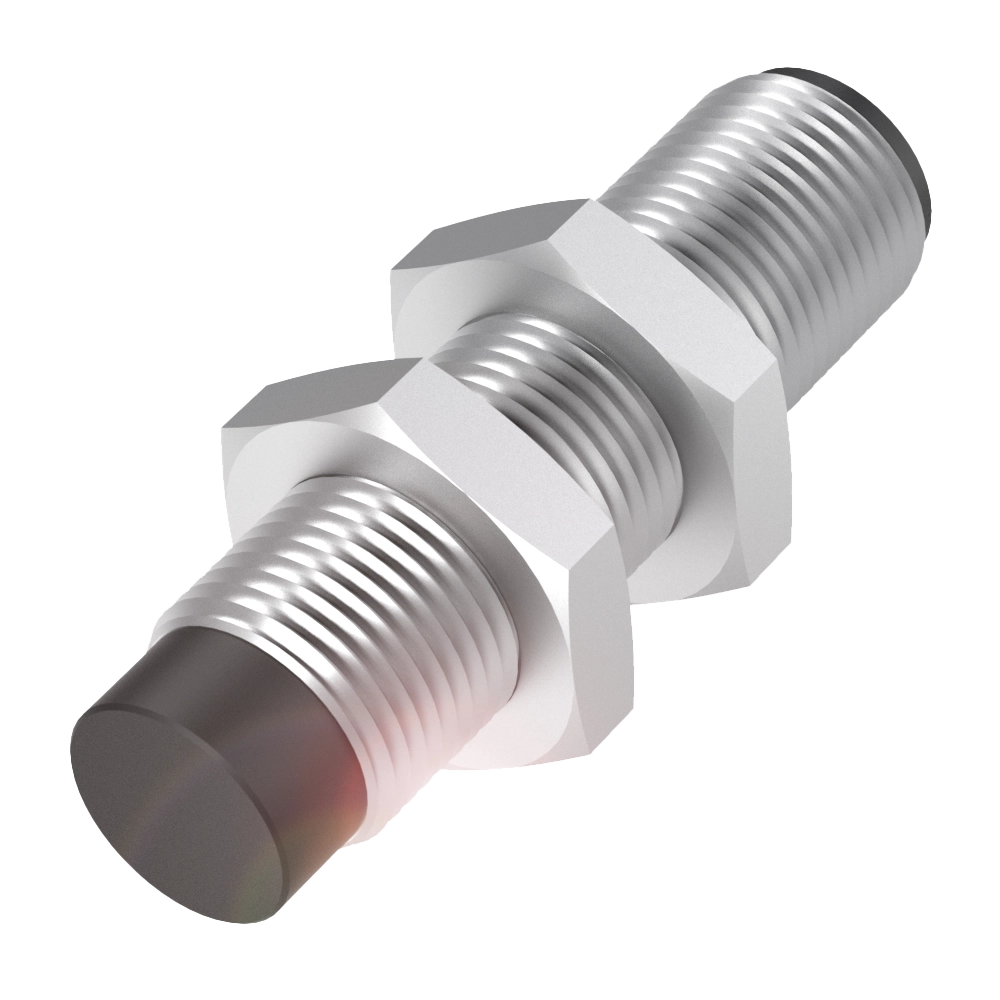

Similar Illustration
Replacement available
Only CAD model download is supported
Inductive distance sensors

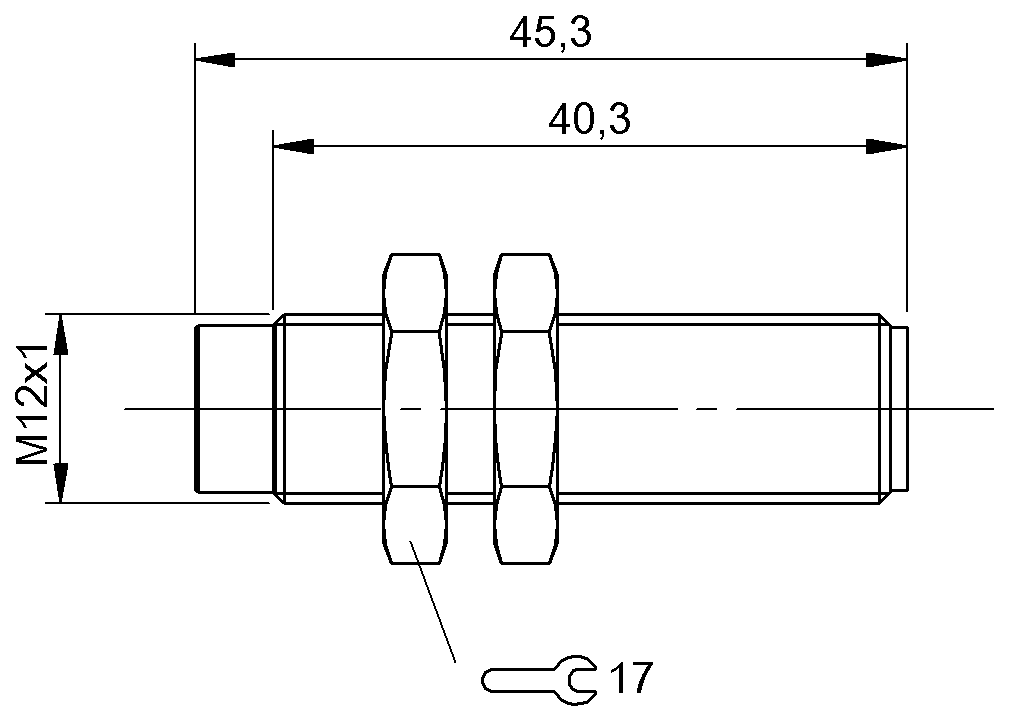

Dimension
Ø 12 x 45 mm
Style Housing
M12x1
Installation
non-flush
Range
1...4 mm
Analog output
Analog, voltage 0...10 V
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
|
Recommended alternative
|
|
|
|
|
|
| BAW M12ED-UAD40F-S04G | BAW M12MD-UAC70G-S04G | |
|
375.27 USD
List price
|
242.44 USD
List price
|
|
| Dimension | Ø 12 x 45 mm | Ø 12 x 45 mm |
|---|---|---|
| Style Housing | M12x1 | M12x1 |
| Installation | non-flush | non-flush |
| Range | 1...4 mm | 0.2...7 mm |
| Analog output | Analog, voltage 0...10 V | Analog, voltage 0...10 V |
| Output characteristic | falling on approach | falling on approach |
| Limit frequency –3 dB | 500 Hz | 1000 Hz |
| Repeat accuracy | ±20 µm | ±7 µm |
| Non-linearity max. | ±90 µm | ±70 µm |
| Housing material | Stainless steel | Brass, Nickel-free coated |
| Material sensing surface | PEEK | LCP |
| Connection | Connector, M12x1-Male, 3-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 15...30 VDC | 15...30 VDC |
| Ambient temperature | -10...85 °C | -40...80 °C |
| IP rating | IP68 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
