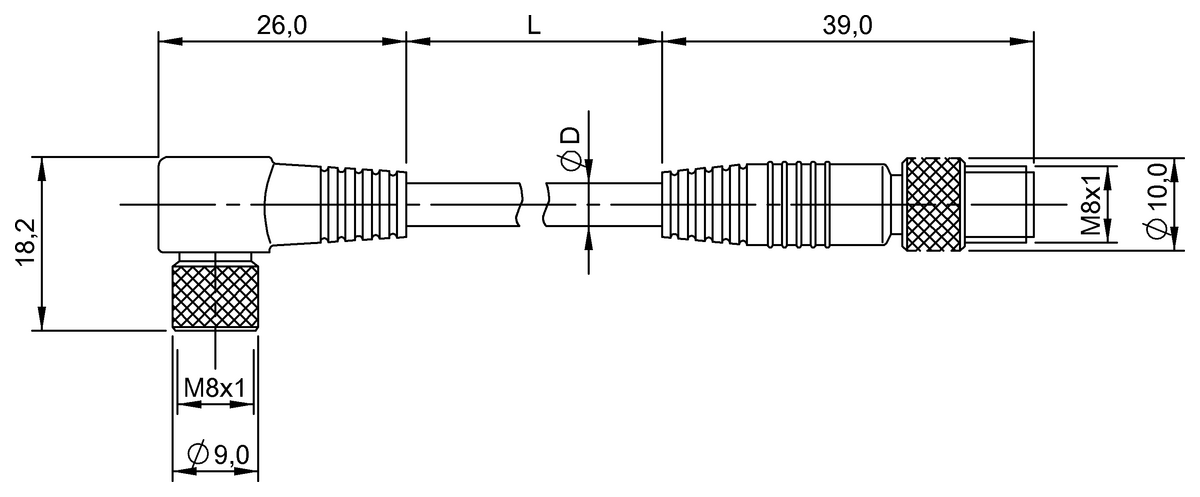

Double-ended cordsets
Connection 1
M8x1-Female, angled, 3-pole, A-coded
Connection 2
M8x1-Male, Straight, 4-pole, A-coded
Cable
PUR black, 0.1 m, Drag chain compatible
Number of conductors
3
Cable temperature, fixed routing
-50...90 °C
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
BCC008UBKS-S 75-1/GS49-PU-00,1- |
BCC0HRABCC M324-M313-30-300-PX0334-00119.07 USD |
BCC02RNBCC M323-M313-30-602-PX0334-00325.54 USD |
BCC0CANBCC M324-M313-30-300-PX0334-00319.35 USD |
|
| Connection 1 | M8x1-Female, angled, 3-pole, A-coded | M8x1-Female, angled, 4-pin, A-coded | M8x1-Female, angled, 3-pin, A-coded | M8x1-Female, angled, 4-pin, A-coded |
|---|---|---|---|---|
| Connection 2 | M8x1-Male, Straight, 4-pole, A-coded | M8x1-Male, straight, 3-pin, A-coded | M8x1-Male, straight, 3-pin, A-coded | M8x1-Male, straight, 3-pin, A-coded |
| Cable | PUR black, 0.1 m, Drag chain compatible | PUR black, 0.1 m, Drag chain compatible | PUR black, 0.3 m, Drag chain compatible | PUR black, 0.3 m, Drag chain compatible |
| Number of conductors | 3 | 3 | 3 | 3 |
| Cable temperature, fixed routing | -50...90 °C | -50...90 °C | -50...90 °C | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C | -25...90 °C | -25...90 °C | -25...90 °C |
| Operating voltage Ub | 60 VDC / 60 VAC | 60 VDC / 60 VAC | 30 VDC | 60 VDC / 60 VAC |
| IP rating | IP67 | IP67, IP69K/IP67, IP69K | IP67, IP69K/IP67, IP69K | IP67, IP69K/IP67, IP69K |
| Approval/Conformity | CE |
CE cULus WEEE |
CE cULus WEEE |
CE cULus WEEE |
