Canceled
Only CAD model download is supported
Single-ended cordsets
Connection

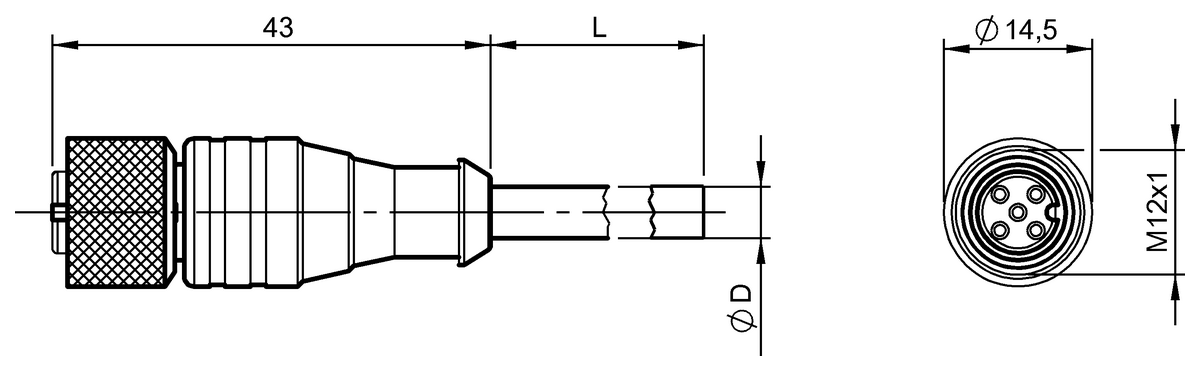

M12x1-Female, straight, 5-pin, A-coded
Cable
PUR black, 5.00 m
Number of conductors
5
Conductor cross-section
0.50 mm²
Cable temperature, fixed routing
-25...70 °C
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BCC009LBKS-S137-34-PU-05- |
BCC09H5BCC M415-0000-1A-034-PX0534-05024.22 USD |
|
| Connection | M12x1-Female, straight, 5-pin, A-coded | M12x1-Female, straight, 5-pin, A-coded |
|---|---|---|
| Cable | PUR black, 5.00 m | PUR black, 5 m, Drag chain compatible |
| Number of conductors | 5 | 5 |
| Conductor cross-section | 0.50 mm² | 0.34 mm² |
| Cable temperature, fixed routing | -25...70 °C | -50...90 °C |
| Cable temperature, flexible routing | -5...70 °C | -25...90 °C |
| Operating voltage Ub | 60 VDC | 60 VDC / 60 VAC |
| IP rating | IP68 | IP67, IP68, IP69K |
| Approval/Conformity |
CE cURus EAC WEEE |
CE cULus UKCA WEEE |
Only CAD model download is supported
