BCC02Y9

Name: BCC02Y9
Brand: Balluff
SKU: BCC02Y9
Price: 25.2 USD
Availability: OutOfStock

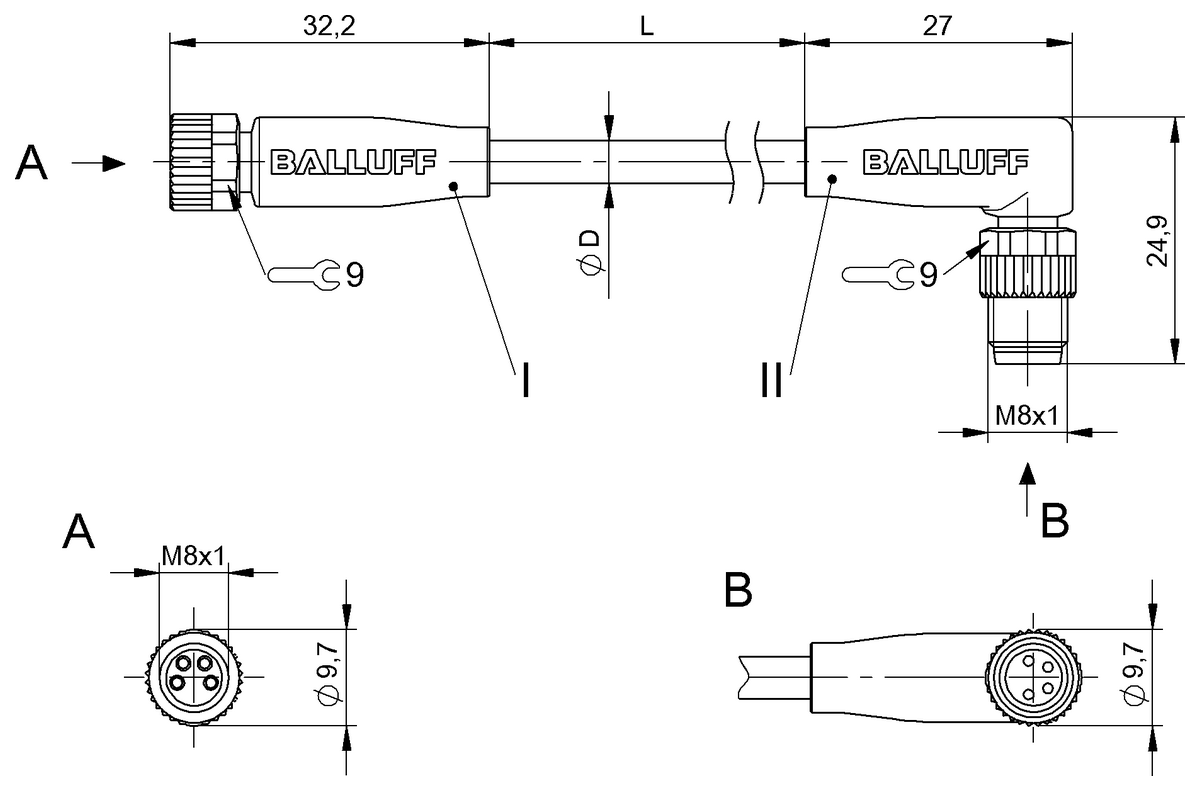

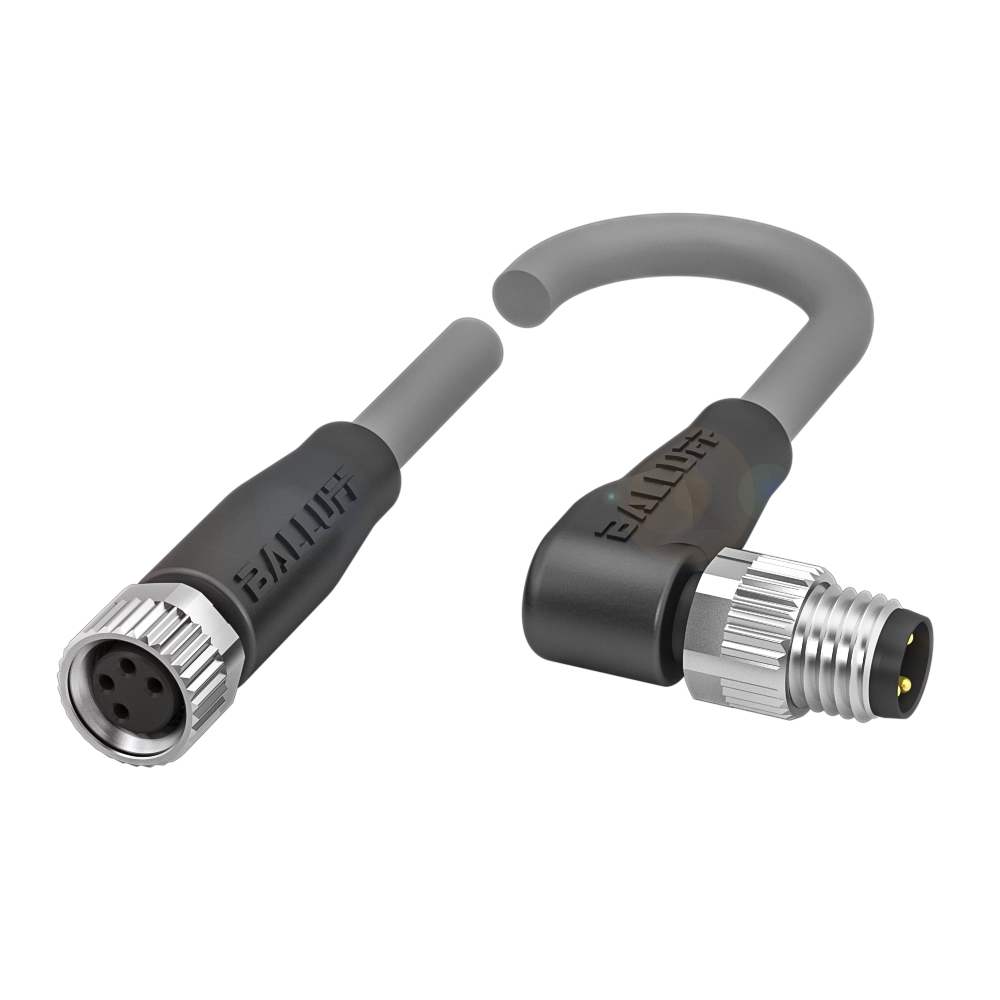

BCC M314-M324-30-304-VX8434-003

Sensor cables unshielded

Connection 1

M8x1-Female, straight, 4-pin, A-coded

Connection 2

M8x1-Male, angled, 4-pin, A-coded

Cable

PVC gray, 0.3 m, Drag chain compatible

Number of conductors

Cable temperature, fixed routing

-40...105 °C

Do you have any questions about the product?

		Alternative	Further alternative

	BCC02Y9 BCC M314-M324-30-304-VX8434-003 25.20 USD	BCC02YA BCC M314-M324-30-304-VX8434-006 25.78 USD	BCC02Y2 BCC M314-M314-30-304-VX8434-003 25.20 USD
Connection 1	M8x1-Female, straight, 4-pin, A-coded	M8x1-Female, straight, 4-pin, A-coded	M8x1-Female, straight, 4-pin, A-coded
Connection 2	M8x1-Male, angled, 4-pin, A-coded	M8x1-Male, angled, 4-pin, A-coded	M8x1-Male, straight, 4-pin, A-coded
Cable	PVC gray, 0.3 m, Drag chain compatible	PVC gray, 0.6 m, Drag chain compatible	PVC gray, 0.3 m, Drag chain compatible
Number of conductors	4	4	4
Cable temperature, fixed routing	-40...105 °C	-40...105 °C	-40...105 °C
Cable temperature, flexible routing	5...105 °C	5...105 °C	5...105 °C
Operating voltage Ub	60 VDC / 60 VAC	60 VDC / 60 VAC	60 VDC / 60 VAC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP69K/IP67, IP69K	IP67, IP69K/IP67, IP69K	IP67, IP69K/IP67, IP69K
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
