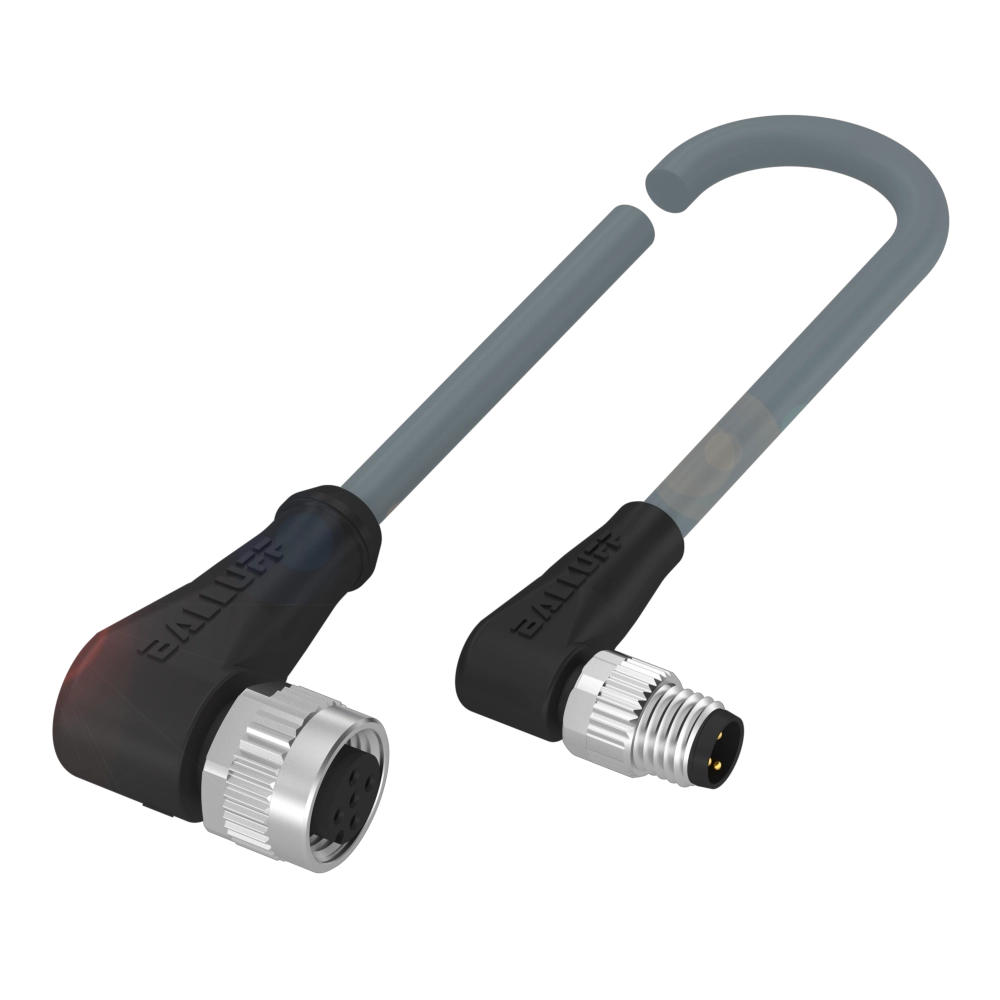

Similar Illustration

BCC03PT

Name: BCC03PT
Brand: Balluff
SKU: BCC03PT
Availability: OutOfStock

BCC M425-M323-3F-300-VX8334-020

Sensor cables unshielded

Connection 1

M12x1-Female, angled, 5-pin, A-coded

Connection 2

M8x1-Male, angled, 3-pin, A-coded

Cable

PVC gray, 2 m, Drag chain compatible

Number of conductors

Cable temperature, fixed routing

-40...105 °C

Do you have any questions about the product?

		Alternative	Further alternative

	BCC03PT BCC M425-M323-3F-300-VX8334-020 -	BCC03R9 BCC M425-M323-3F-602-VX8334-020 33.34 USD	BCC03P8 BCC M415-M323-3F-300-VX8334-020 -
Connection 1	M12x1-Female, angled, 5-pin, A-coded	M12x1-Female, angled, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded
Connection 2	M8x1-Male, angled, 3-pin, A-coded	M8x1-Male, angled, 3-pin, A-coded	M8x1-Male, angled, 3-pin, A-coded
Cable	PVC gray, 2 m, Drag chain compatible	PVC gray, 2 m, Drag chain compatible	PVC gray, 2 m, Drag chain compatible
Number of conductors	3	3	3
Cable temperature, fixed routing	-40...105 °C	-40...105 °C	-40...105 °C
Cable temperature, flexible routing	5...105 °C	5...105 °C	5...105 °C
Operating voltage Ub	60 VDC / 60 VAC	30 VDC	60 VDC / 60 VAC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP68, IP69K/IP67, IP69K	IP67, IP68, IP69K/IP67, IP69K	IP67, IP68, IP69K/IP67, IP69K
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
