BCC069Z

Name: BCC069Z
Brand: Balluff
SKU: BCC069Z
Availability: OutOfStock

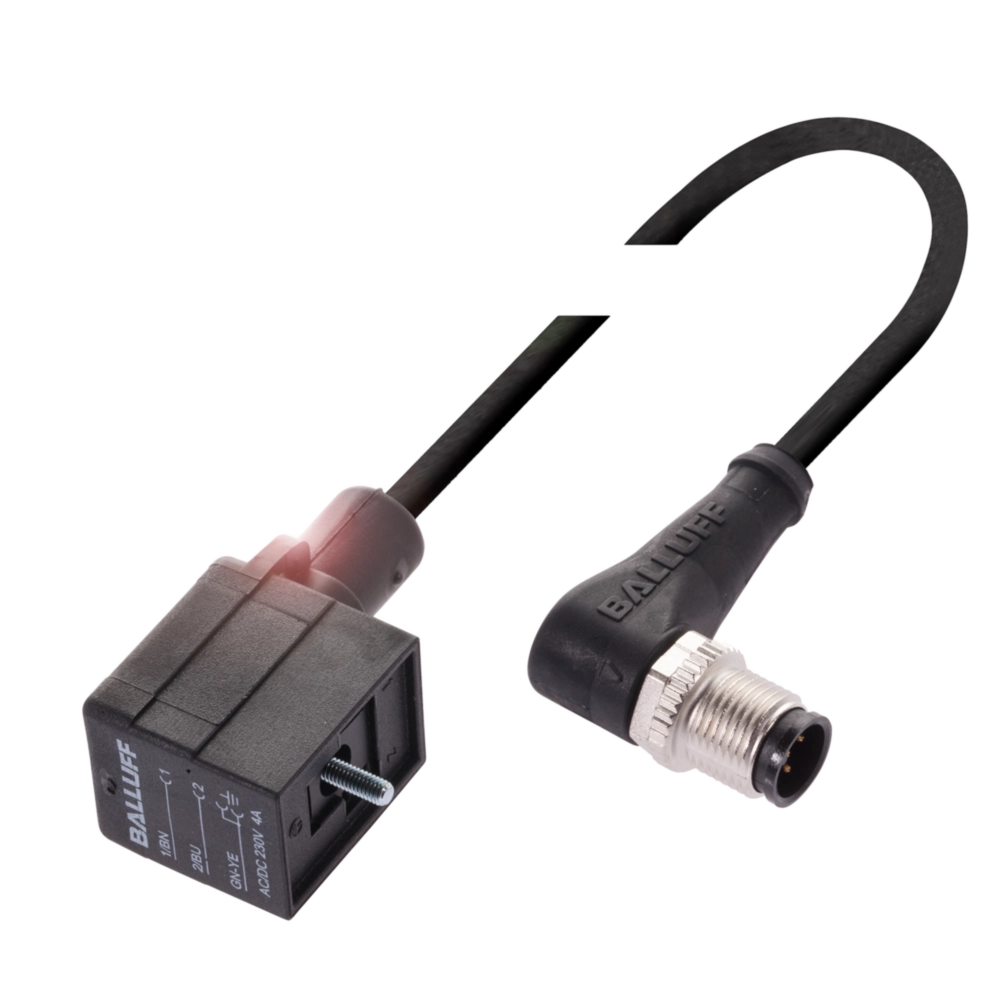

BCC VB23-M423-3E-667-PX0350-010

Double-ended cordsets

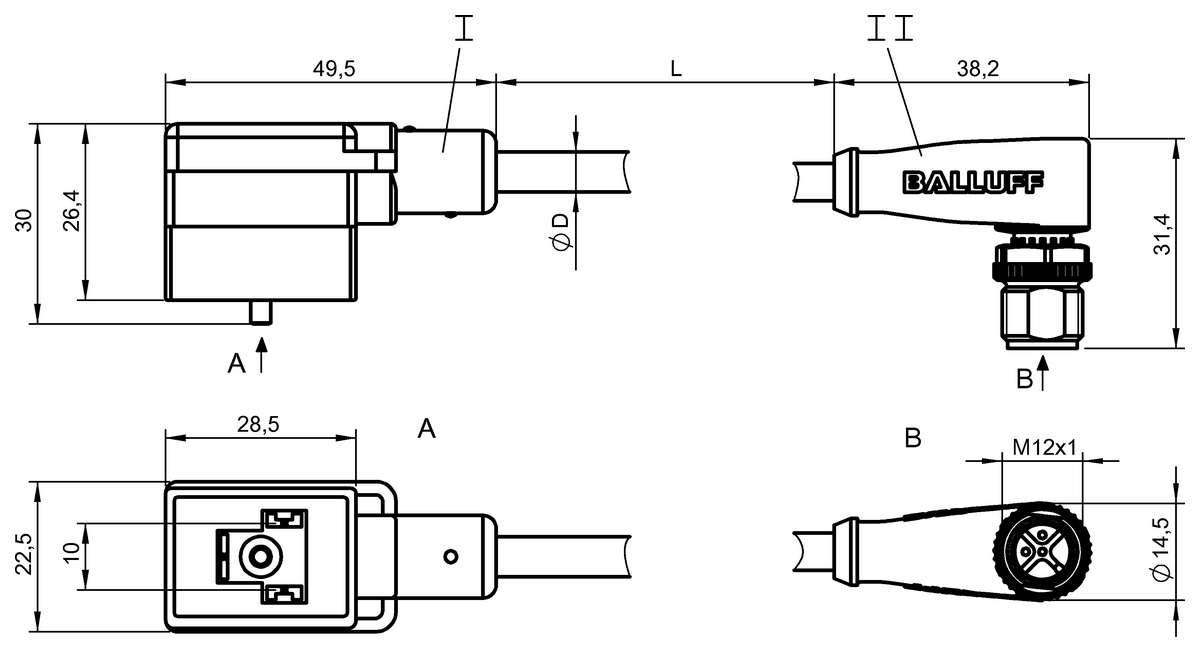

Connection 1

B, DIN-180°-Valve connector, angled, 3-pole

Connection 2

M12x1-Male, angled, 3-pole, A-coded

Cable

PUR black, 1 m, Drag chain compatible

Number of conductors

Cable temperature, fixed routing

-50...80 °C

Do you have any questions about the product?

	Discontinued	Alternative	Further alternative

	BCC069Z BCC VB23-M423-3E-667-PX0350-010 -	BCC064R BCC VB23-M413-3E-666-PX0350-010 27.27 USD	BCC064P BCC VB23-M413-3E-666-PX0350-006 25.98 USD
Connection 1	B, DIN-180°-Valve connector, angled, 3-pole	B, DIN-180°-Valve connector, angled, 3-pin	B, DIN-180°-Valve connector, angled, 3-pin
Connection 2	M12x1-Male, angled, 3-pole, A-coded	M12x1-Male, straight, 3-pin, A-coded	M12x1-Male, straight, 3-pin, A-coded
Cable	PUR black, 1 m, Drag chain compatible	PUR black, 1 m, Drag chain compatible	PUR black, 0.6 m, Drag chain compatible
Number of conductors	3	3	3
Cable temperature, fixed routing	-50...80 °C	-50...80 °C	-50...80 °C
Cable temperature, flexible routing	-25...80 °C	-25...80 °C	-25...80 °C
Operating voltage Ub	60 VDC / 60 VAC	24 VDC / 24 VAC	24 VDC / 24 VAC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67/IP68	IP67/IP67, IP69K	IP67/IP67, IP69K
Approval/Conformity	CE EAC WEEE	CE WEEE	CE WEEE
