BCC0A2F

Name: BCC0A2F
Brand: Balluff
SKU: BCC0A2F
Price: 32.13 USD
Availability: OutOfStock

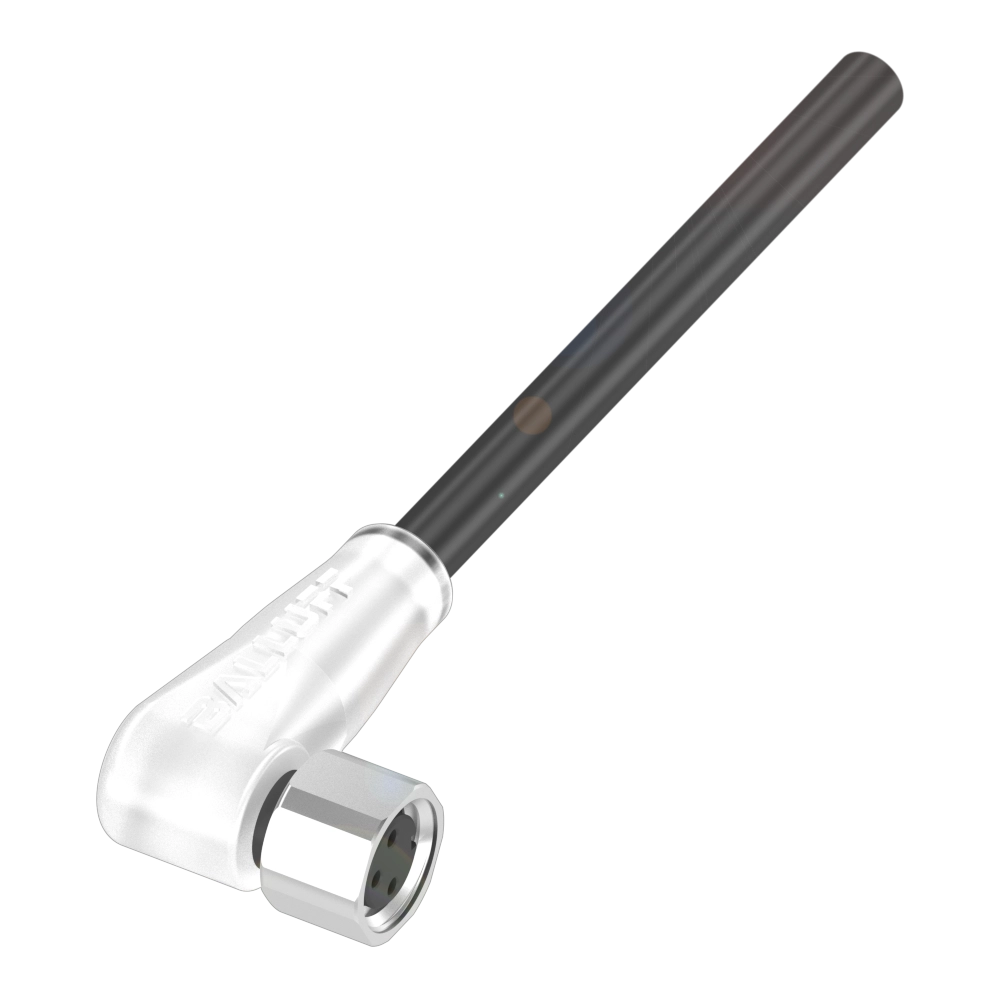

BCC S323-0000-10-004-PX0334-030

Chemical resistant cables (stainless)

Special characteristics

Washdown

Connection

M8x1-Female, angled, 3-pin, A-coded

Power indicator

LED green

Function indicator (Pin 4)

LED yellow

Switching output

PNP Normally open (NO)

Do you have any questions about the product?

		Alternative	Further alternative

	BCC0A2F BCC S323-0000-10-004-PX0334-030 32.13 USD	BCC08CZ BCC S323-0000-10-004-PX0334-020 34.40 USD	BCC08E0 BCC S323-0000-10-004-PX0334-050 36.93 USD
Special characteristics	Washdown	Washdown	Washdown
Connection	M8x1-Female, angled, 3-pin, A-coded	M8x1-Female, angled, 3-pin, A-coded	M8x1-Female, angled, 3-pin, A-coded
Power indicator	LED green	LED green	LED green
Function indicator (Pin 4)	LED yellow	LED yellow	LED yellow
Switching output	PNP Normally open (NO)	PNP Normally open (NO)	PNP Normally open (NO)
Cable	PUR black, 3 m, Drag chain compatible	PUR black, 2 m, Drag chain compatible	PUR black, 5 m, Drag chain compatible
Number of conductors	3	3	3
Conductor cross-section	0.34 mm²	0.34 mm²	0.34 mm²
Cable temperature, fixed routing	-50...90 °C	-50...90 °C	-50...90 °C
Cable temperature, flexible routing	-25...90 °C	-25...90 °C	-25...90 °C
Operating voltage Ub	30 VDC	30 VDC	30 VDC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP69K	IP67, IP69K	IP67, IP69K
Approval/Conformity	CE cULus Ecolab WEEE	CE cULus Ecolab WEEE	CE cULus Ecolab WEEE
