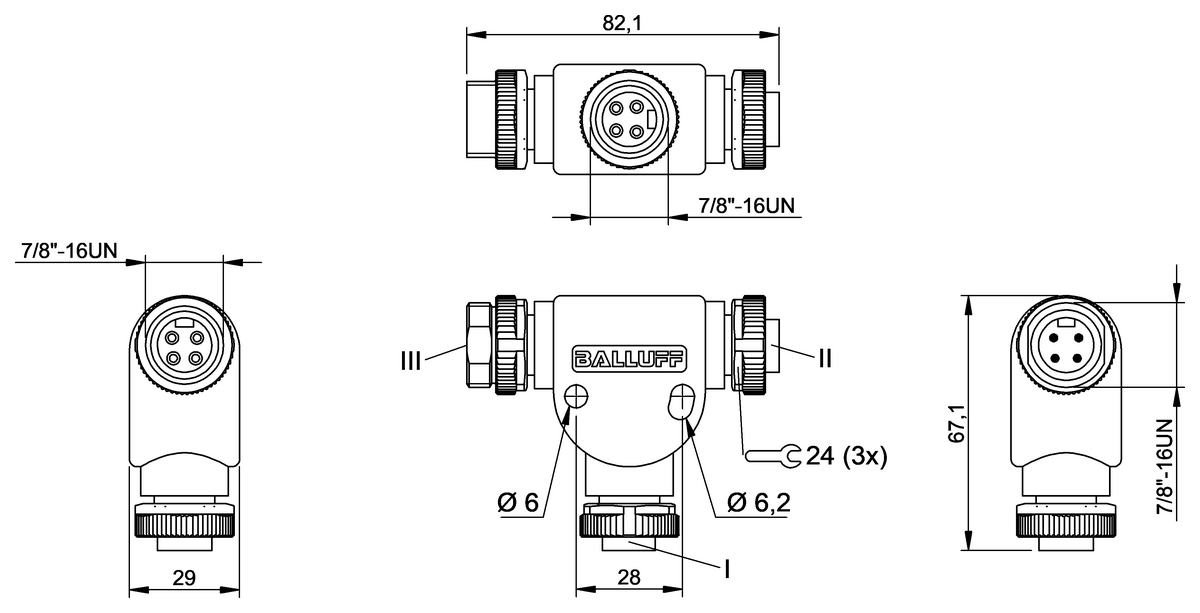

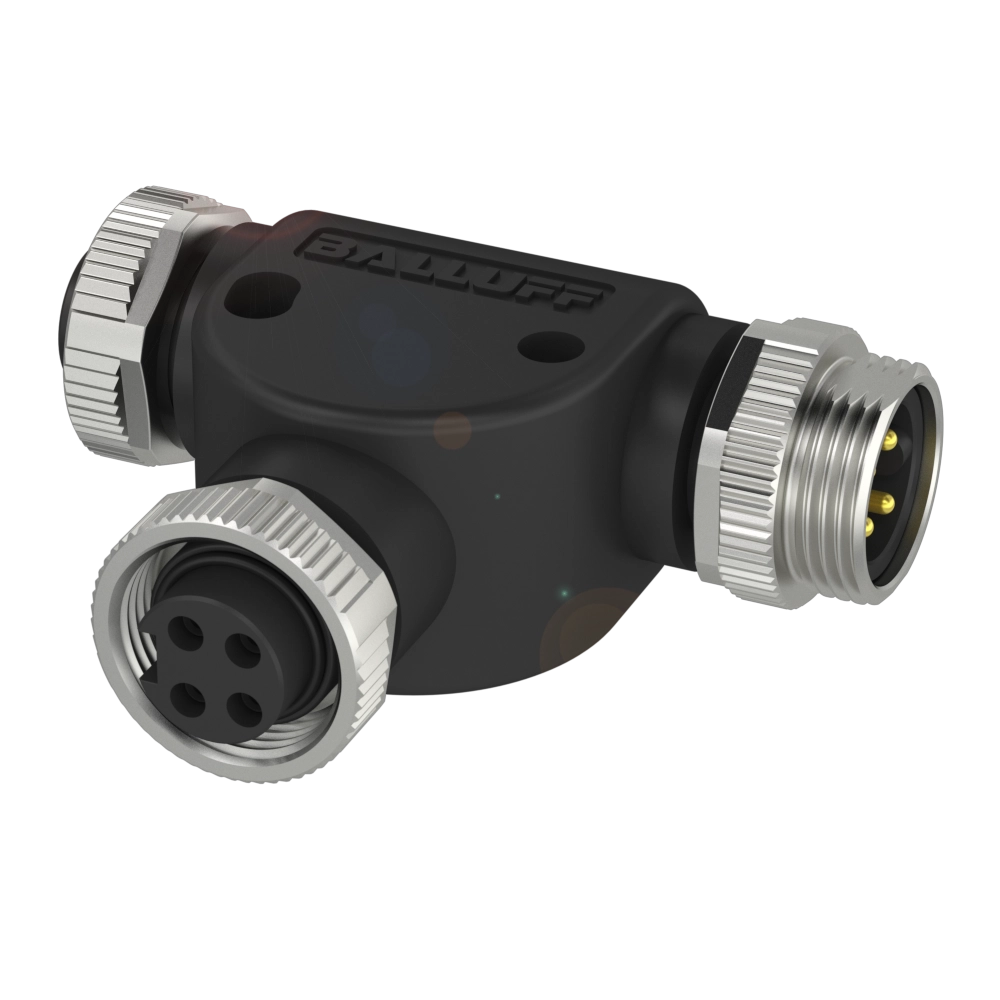

BCC0AA6

Tees

Typecode:

BCC A314-A314-A314-T0022-000

Loading...
Connection 1
7/8"-16 UN-Female, 4-pin
Connection 2
7/8"-16 UN-Female, 4-pin
Connection 3
7/8"-16 UN-Male, 4-pin
Operating voltage Ub
300 VDC / 300 VAC
Rated current (40 °C)
9.0 A
IP rating
IP67
Ambient temperature
-25...80 °C
Approval/Conformity
CE
cURus
WEEE
Technical documentation
  • Datasheet

Product documentation
  • Certificate

    UL E477876 20150909 E18M99 (English)
  • Declaration of Compliance

    EU-Konformitätserklärung / EU Declaration of Conformity (CE) (All languages)
No recommended accessories available.
ECLASS 10.1
27-44-01-06
ECLASS 11.0
27-44-01-06
ECLASS 4.1
27-27-90-00
ECLASS 5.1.3
27-25-01-07
ECLASS 5.1.4
27-25-01-07
ECLASS 6.0
27-27-92-21
ECLASS 8.1
27-44-01-06
ECLASS 9.0
27-44-01-06
ECLASS 9.1
27-44-01-06
ETIM 4.0
EC001855
ETIM 5.0
EC002062
ETIM 6.0
EC002062
ETIM 6.0
EC002062
UNSPSC 11
26121604
UNSPSC 7.0901
26121604
