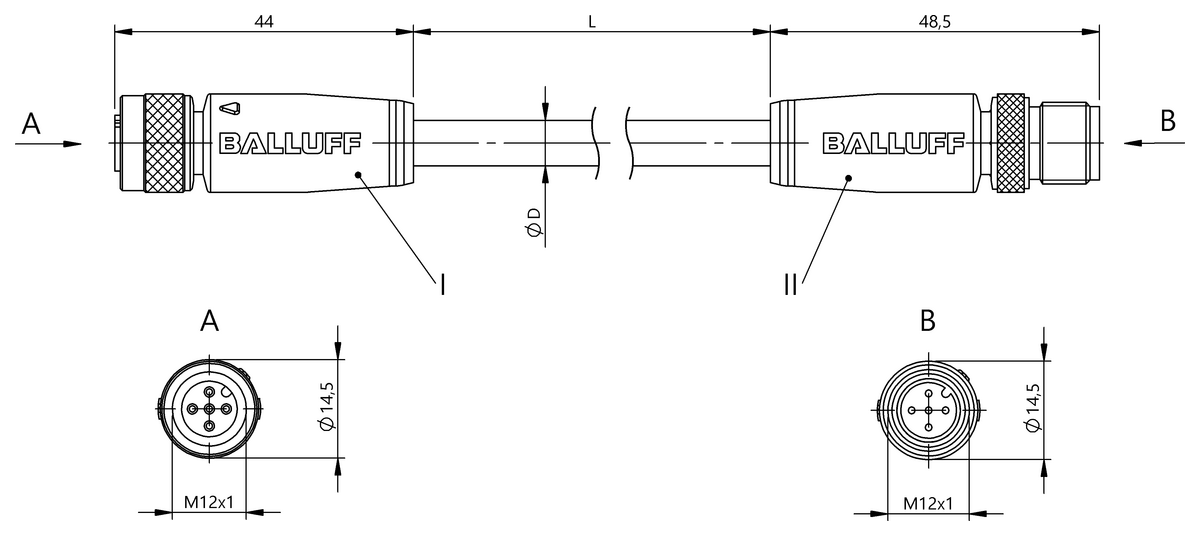

Similar Illustration

BCC0E03

Name: BCC0E03
Brand: Balluff
SKU: BCC0E03
Price: 47.51 USD
Availability: InStock

BCC M415-M415-3A-330-VS85N6-006

Fieldbus cables

Connection 1

M12x1-Female, straight, 5-pin, A-coded

Connection 2

M12x1-Male, straight, 5-pin, A-coded

Interface

DeviceNet Thin

Cable

PVC Shielded gray, 0.6 m

Number of conductors

Do you have any questions about the product?

	Available	Alternative	Further alternative

	BCC0E03 BCC M415-M415-3A-330-VS85N6-006 47.51 USD	BCC0FMU BCC M415-M415-3A-330-VS85N6-010 35.35 USD	BCC0E04 BCC M415-M415-3A-330-VS85N6-020 62.02 USD
Connection 1	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded
Connection 2	M12x1-Male, straight, 5-pin, A-coded	M12x1-Male, straight, 5-pin, A-coded	M12x1-Male, straight, 5-pin, A-coded
Interface	DeviceNet Thin	DeviceNet Thin	DeviceNet Thin
Cable	PVC Shielded gray, 0.6 m	PVC Shielded gray, 1 m	PVC Shielded gray, 2 m
Number of conductors	4	4	4
Operating voltage Ub	60 VDC / 60 VAC	60 VDC / 60 VAC	60 VDC / 60 VAC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP68, IP69K/IP67, IP68, IP69K	IP67, IP68, IP69K/IP67, IP68, IP69K	IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
