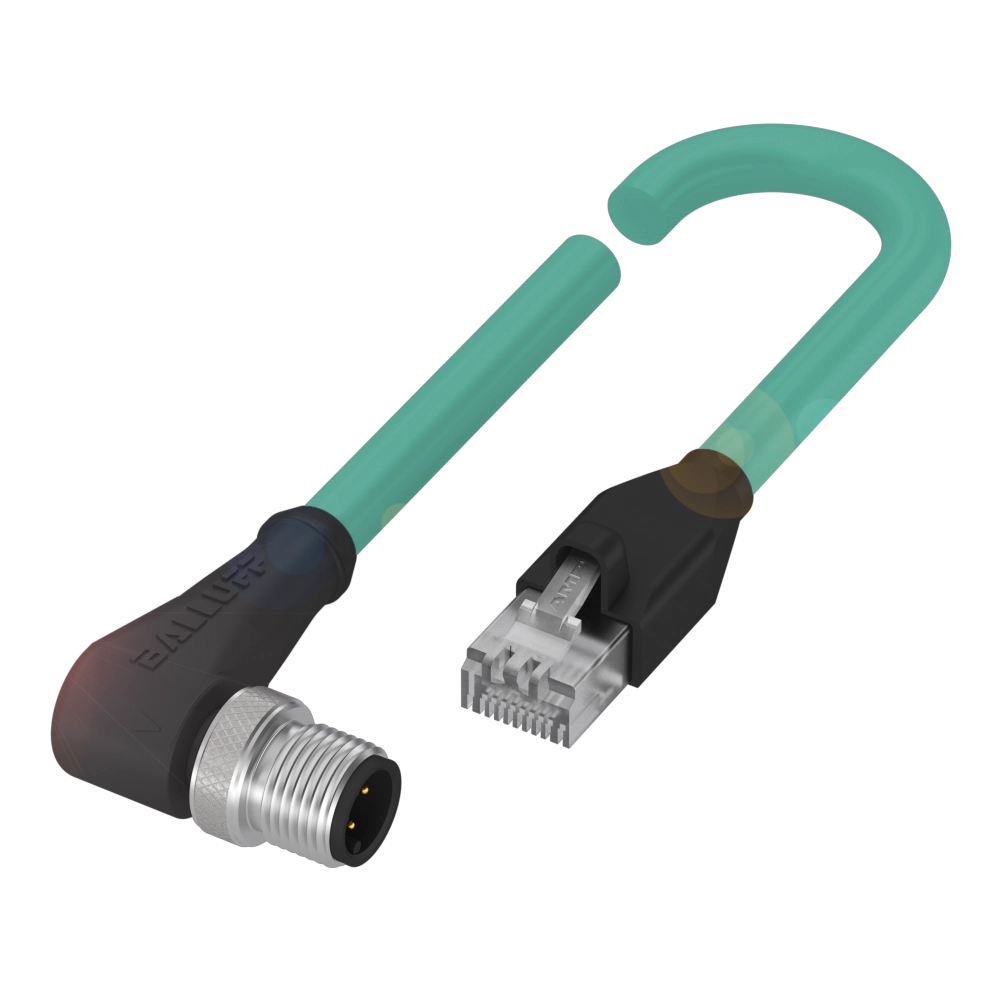

Double-ended cordsets

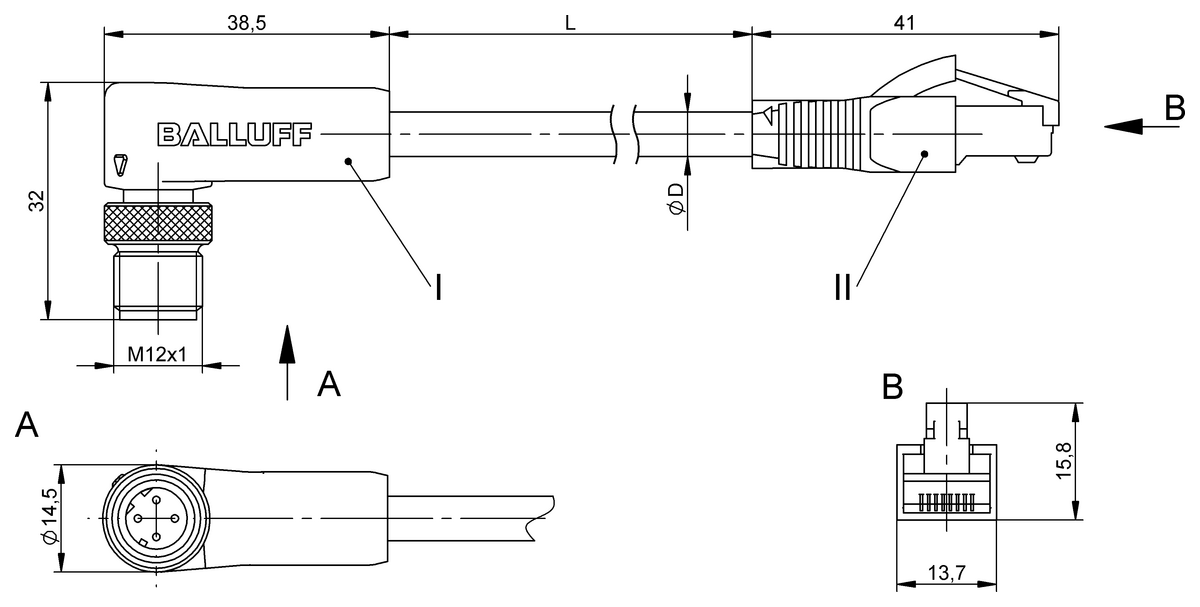

Connection 1
M12x1-Male, angled, 4-pin, D-coded
Connection 2
RJ45-Male, straight, 4-pin
Interface
EtherNet/IP
Cable
TPE teal, 15 m, Drag chain compatible
Cable, note
Ethernet
Do you have any questions about the product?
Alternative products
|
Available
|
Alternative
|
|
|
|
|
|
BCC0EZUBCC M424-E894-8G-695-EX64N9-150110.49 USD |
BCC0E2KBCC M414-E894-8G-695-EX64N9-150110.49 USD |
|
| Connection 1 | M12x1-Male, angled, 4-pin, D-coded | M12x1-Male, straight, 4-pin, D-coded |
|---|---|---|
| Connection 2 | RJ45-Male, straight, 4-pin | RJ45-Male, straight, 4-pin |
| Interface | EtherNet/IP | EtherNet/IP |
| Cable | TPE teal, 15 m, Drag chain compatible | TPE teal, 15 m, Drag chain compatible |
| Cable, note | Ethernet | Ethernet |
| Number of conductors | 4 | 4 |
| Cable temperature, flexible routing | -40...105 °C | -40...105 °C |
| Operating voltage Ub | 42 VDC / 30 VAC | 42 VDC / 30 VAC |
| Rated current (40 °C) | 1.0 A | 1.0 A |
| IP rating | IP67, IP68, IP69K/IP20 | IP67, IP68, IP69K/IP20 |
| Approval/Conformity |
CE WEEE |
CE WEEE |
