BCC0F7W

Name: BCC0F7W
Brand: Balluff
SKU: BCC0F7W
Availability: OutOfStock

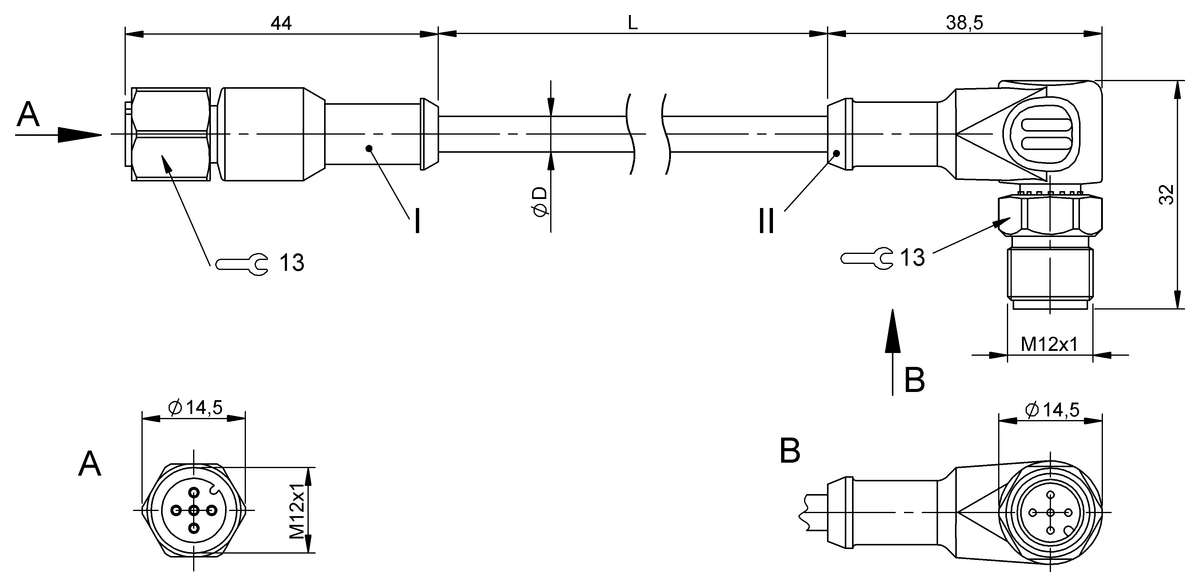

BCC S415-S425-3A-312-PX8534-010-C002

Double-ended cordsets

Connection 1

M12x1-Female, Straight, 5-pin, A-coded

Connection 2

M12x1-Male, right-angle, 5-pin, A-coded

Cable

PUR gray, 1 m, Drag chain compatible

Number of conductors

Cable temperature, fixed routing

-50...80 °C

Do you have any questions about the product?

	Discontinued	Alternative	Further alternative

	BCC0F7W BCC S415-S425-3A-312-PX8534-010-C002 -	BCC0LHF BCC M415-M415-3A-312-PX8534-010-C108 33.91 USD	BCC0L4F BCC M415-M415-3A-312-PX8534-010 33.91 USD
Connection 1	M12x1-Female, Straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded
Connection 2	M12x1-Male, right-angle, 5-pin, A-coded	M12x1-Male, straight, 5-pin, A-coded	M12x1-Male, straight, 5-pin, A-coded
Cable	PUR gray, 1 m, Drag chain compatible	PUR gray, 1 m, Drag chain compatible	PUR gray, 1 m, Drag chain compatible
Number of conductors	5	5	5
Cable temperature, fixed routing	-50...80 °C	-50...80 °C	-50...80 °C
Cable temperature, flexible routing	-25...80 °C	-25...80 °C	-25...80 °C
Operating voltage Ub	60 VDC / 60 VAC	60 VDC / 60 VAC	60 VDC / 60 VAC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP68, IP69K/IP67, IP68, IP69K	IP67, IP68, IP69K/IP67, IP68, IP69K	IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity	CE cULus EAC Ecolab WEEE	CE cULus WEEE	CE cULus WEEE
