BCC0FM9

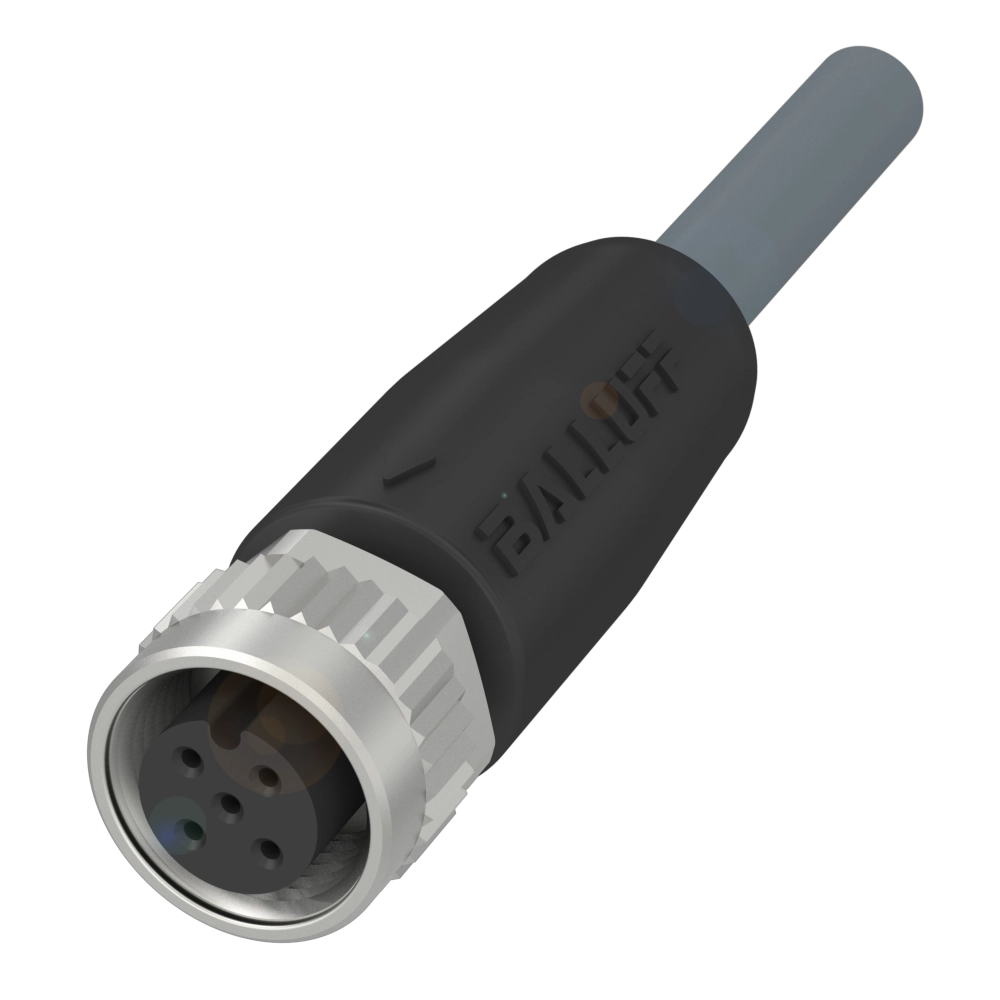

BCC M415-0000-1A-030-PS85N6-060

Single-ended cordsets

Connection
M12x1-Female, Straight, 5-pin, A-coded
Interface
DeviceNet
Cable
PUR Shielded gray, 6.00 m, Drag chain compatible
Number of conductors
4
Conductor cross-section
22 AWG/24 AWG
Do you have any questions about the product?

Quantity scale

Contact request
Key features
Connection
M12x1-Female, Straight, 5-pin, A-coded
Interface
DeviceNet
Cable
PUR Shielded gray, 6.00 m, Drag chain compatible
Number of conductors
4
Conductor cross-section
22 AWG/24 AWG
Operating voltage Ub
125 VDC / 125 VAC
Rated current (40 °C)
4.0 A
Approval/Conformity
cULus
Classifications
ECLASS 10.1
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 4.1
27-27-90-01
ECLASS 5.1.4
27-27-92-01
ECLASS 6.2
27-27-92-18
ECLASS 8.1
27-27-92-18
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ETIM 4.0
EC001855
ETIM 5.0
EC001855
ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
UNSPSC 11
26121604
UNSPSC 7.0901
26121604
