BCC0KEM

Name: BCC0KEM
Brand: Balluff
SKU: BCC0KEM
Availability: OutOfStock

BCC M413-0000-2A-001-PV3334-020

Single-ended cordsets

Connection

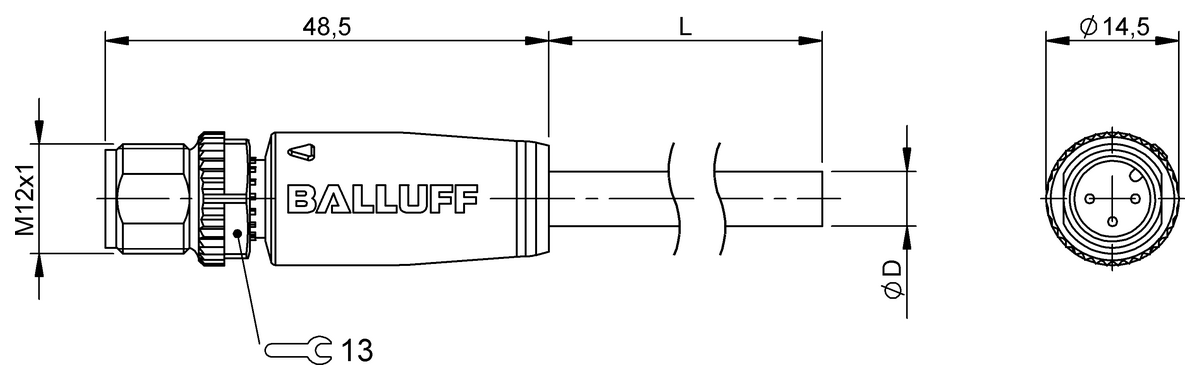

M12x1-Male, straight, 3-pin, A-coded

Cable

PUR welding spark resistant orange, 2 m, Drag chain compatible

Number of conductors

Conductor cross-section

0.34 mm²

Cable temperature, fixed routing

-50...90 °C

Do you have any questions about the product?

	Discontinued	Alternative	Further alternative

	BCC0KEM BCC M413-0000-2A-001-PV3334-020 -	BCC0M1C BCC M413-0000-2A-001-PW3334-020 -	BCC0M1E BCC M413-0000-2A-001-PW3334-050 -
Connection	M12x1-Male, straight, 3-pin, A-coded	M12x1-Male, straight, 3-pin, A-coded	M12x1-Male, straight, 3-pin, A-coded
Cable	PUR welding spark resistant orange, 2 m, Drag chain compatible	PUR welding spark resistant orange, 2 m, Drag chain compatible	PUR welding spark resistant orange, 5 m, Drag chain compatible
Number of conductors	3	3	3
Conductor cross-section	0.34 mm²	0.34 mm²	0.34 mm²
Cable temperature, fixed routing	-50...90 °C	-50...90 °C	-50...90 °C
Cable temperature, flexible routing	-25...90 °C	-25...90 °C	-25...90 °C
Operating voltage Ub	250 VDC / 250 VAC	250 VDC / 250 VAC	250 VDC / 250 VAC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP68, IP69K	IP67, IP68, IP69K	IP67, IP68, IP69K
Approval/Conformity	CE cULus WEEE	CE cULus UKCA WEEE	CE cULus UKCA WEEE
