BCC0KJ5

Name: BCC0KJ5
Brand: Balluff
SKU: BCC0KJ5
Availability: OutOfStock

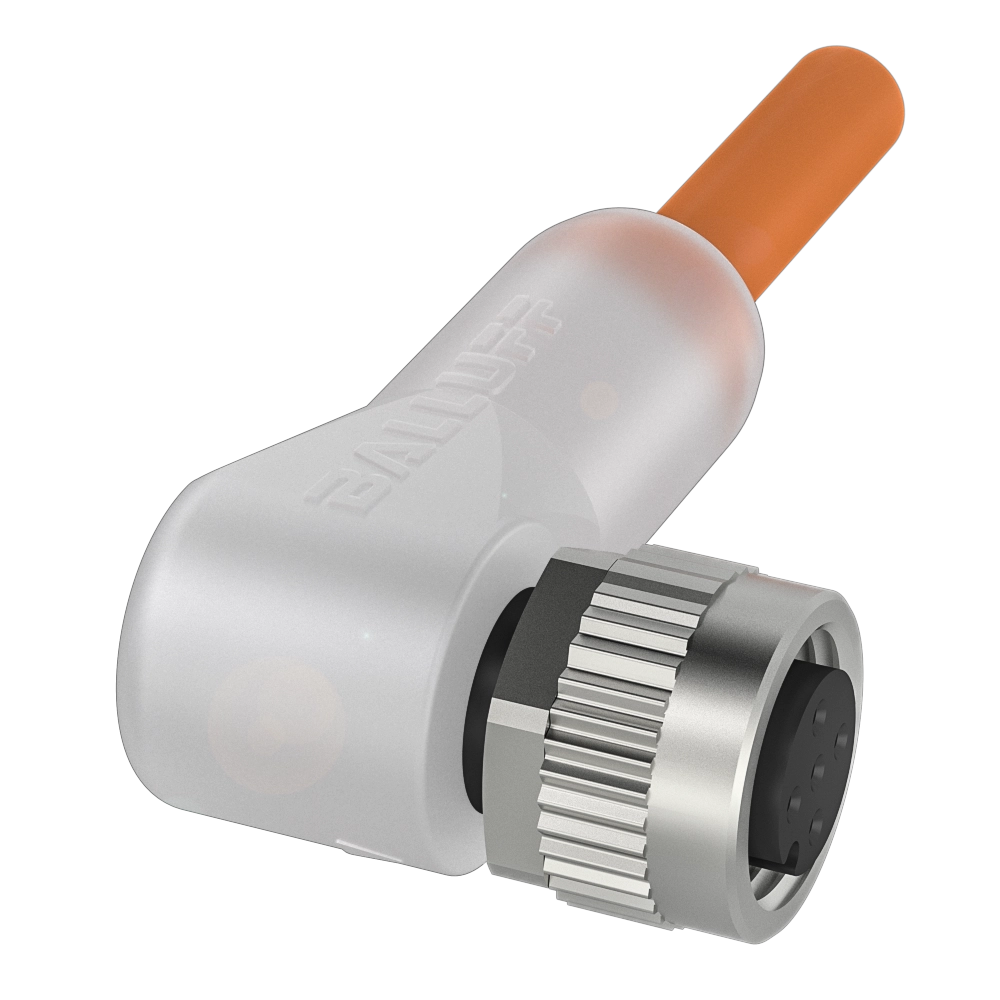

BCC M425-0000-1A-142-PV3534-100

Single-ended cordsets

Connection

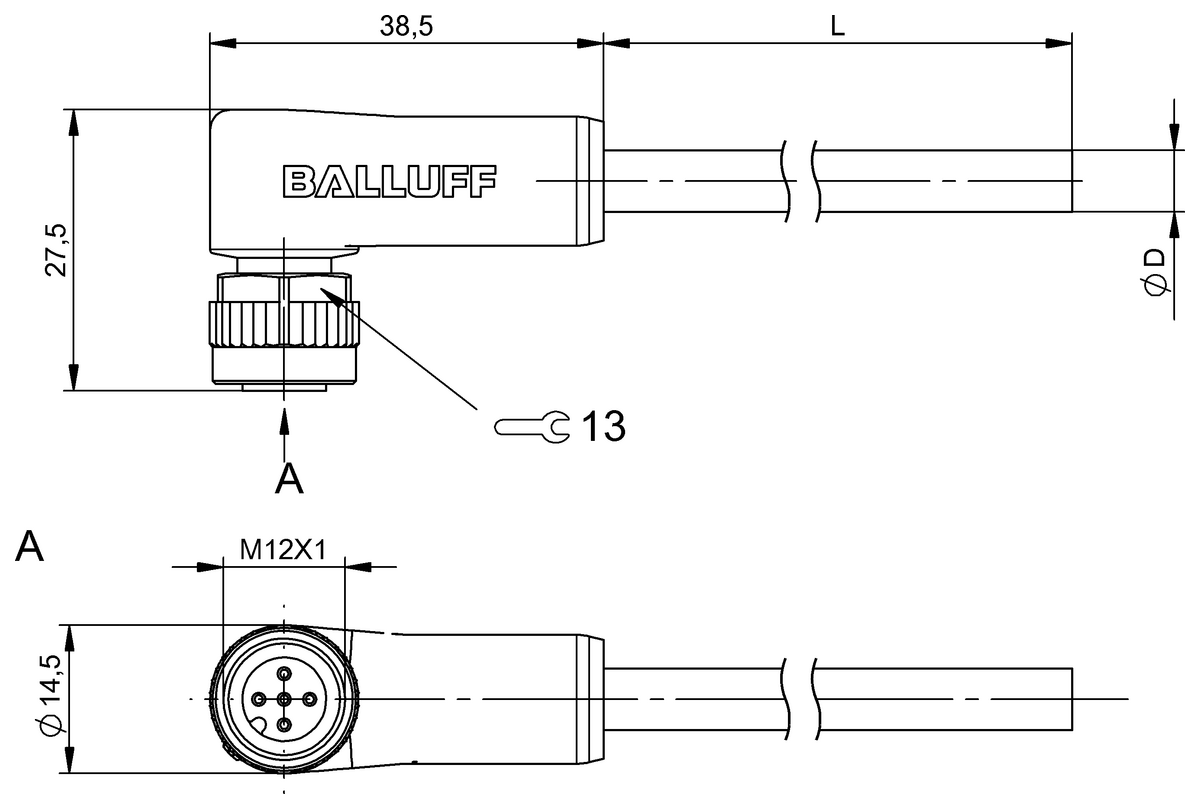

M12x1-Female, right-angle, 5-pin, A-coded

Power indicator

LED green

Function indicator (Pin 2)

LED red

Function indicator (Pin 4)

LED yellow

Switching output

PNP NO/NC antivalent

Do you have any questions about the product?

	Discontinued	Alternative	Further alternative

	BCC0KJ5 BCC M425-0000-1A-142-PV3534-100 -	BCC087P BCC M425-0000-1A-040-PW3534-100 82.73 USD	BCC0C7R BCC M425-0000-1A-100-PW3534-100 85.19 USD
Connection	M12x1-Female, right-angle, 5-pin, A-coded	M12x1-Female, angled, 5-pin, A-coded	M12x1-Female, angled, 5-pin, A-coded
Power indicator	LED green	LED green	LED green
Function indicator (Pin 2)	LED red	LED white	LED red
Function indicator (Pin 4)	LED yellow	LED yellow	LED yellow
Switching output	PNP NO/NC antivalent	PNP NO/NC antivalent	PNP NO/NC antivalent
Cable	PUR welding spark resistant Orange, 10 m, Drag chain compatible	PUR welding spark resistant orange, 10 m, Drag chain compatible	PUR welding spark resistant orange, 10 m, Drag chain compatible
Number of conductors	5	5	5
Conductor cross-section	0.34 mm²	0.34 mm²	0.34 mm²
Cable temperature, fixed routing	-50...90 °C	-50...90 °C	-50...90 °C
Cable temperature, flexible routing	-25...90 °C	-25...90 °C	-25...90 °C
Operating voltage Ub	30 VDC	30 VDC	30 VDC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP68, IP69K	IP67, IP68, IP69K	IP67, IP68, IP69K
Approval/Conformity	CE cULus EAC WEEE	CE cULus WEEE	CE cULus WEEE
