Similar Illustration

BCC0KR9

Name: BCC0KR9
Brand: Balluff
SKU: BCC0KR9
Price: 444.74 USD
Availability: OutOfStock

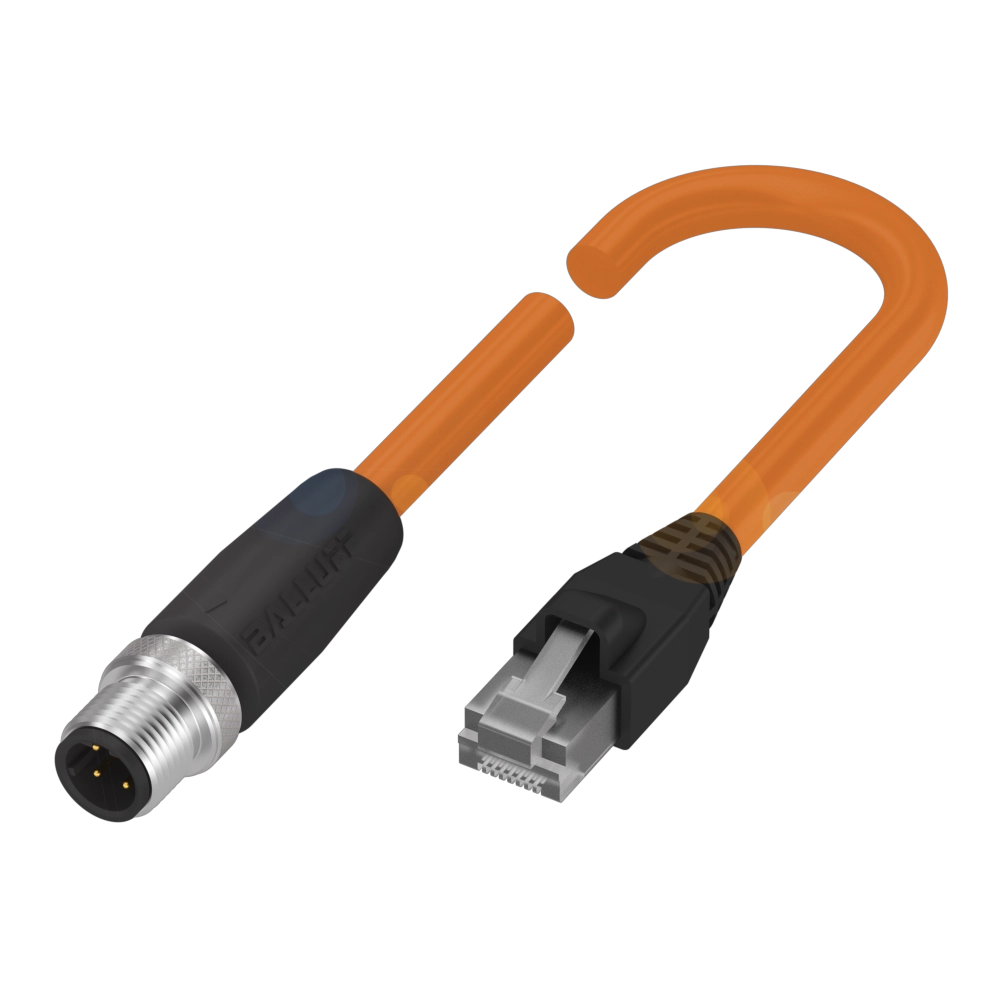

BCC M414-E894-8G-672-ES34N9-300

Ethernet/Profinet cables

Connection 1

M12x1-Male, straight, 4-pin, D-coded

Connection 2

RJ45-Male, straight, 4-pin

Interface

EtherNet/IP

Cable

TPE Shielded orange, 30 m, Drag chain compatible

Cable, note

Ethernet, CAT 5E

Do you have any questions about the product?

		Alternative	Further alternative

	BCC0KR9 BCC M414-E894-8G-672-ES34N9-300 444.74 USD	BCC0E8R BCC M414-E894-8G-672-ES64N9-300 363.74 USD	BCC0KL4 BCC M414-E894-8G-672-ES64N9-300-C046 444.74 USD
Connection 1	M12x1-Male, straight, 4-pin, D-coded	M12x1-Male, straight, 4-pin, D-coded	M12x1-Male, straight, 4-pin, D-coded
Connection 2	RJ45-Male, straight, 4-pin	RJ45-Male, straight, 4-pin	RJ45-Male, straight, 4-pin
Interface	EtherNet/IP	EtherNet/IP	EtherNet/IP
Cable	TPE Shielded orange, 30 m, Drag chain compatible	TPE Shielded teal, 30 m, Drag chain compatible	TPE Shielded royal blue, 30 m, Drag chain compatible
Cable, note	Ethernet, CAT 5E	Ethernet, CAT 5E	Ethernet, CAT 5E
Number of conductors	4	4	4
Cable temperature, flexible routing	-40...80 °C	-40...80 °C	-40...80 °C
Operating voltage Ub	42 VDC / 30 VAC	42 VDC / 30 VAC	42 VDC / 30 VAC
Rated current (40 °C)	1.0 A	1.0 A	1.0 A
IP rating	IP67/IP20	IP67/IP20	IP67/IP20
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
