BCS008C

Capacitive level sensors with media contact

Typecode:

BCS M18TTI2-POCFAG-AT02

Loading...

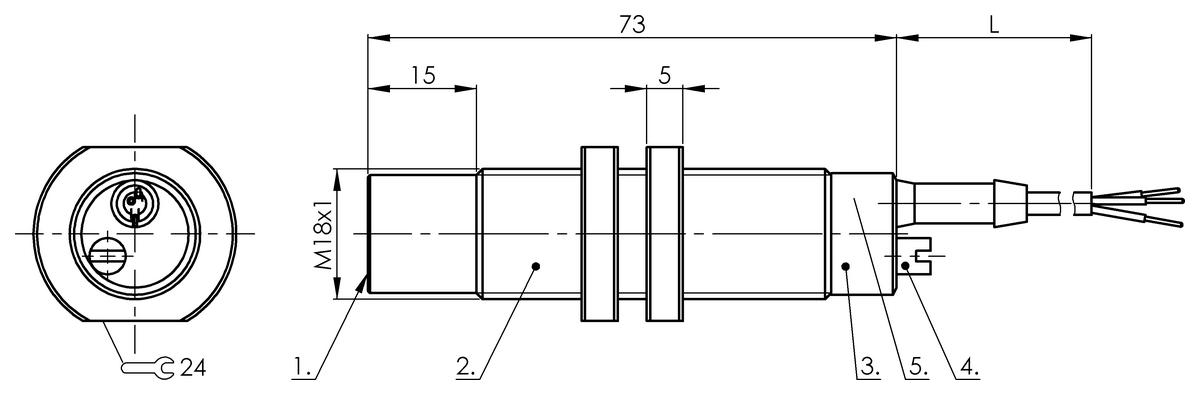

Dimension
Ø 18 x 73 mm
Series
M18
Thread (A)
M18x1
Installation
non-flush
Connection
Cable, 2.00 m, PTFE
Switching output
PNP Normally closed (NC)
Switching frequency
2 Hz
Sensitivity
media-dependent, adjustable
Function
Smart Level 15
Additional features
Electrically conductive media
Foam and residue compensation
Housing material
PTFE
Material sensing surface
PTFE
Ambient temperature
-10...60 °C
Operating voltage Ub
10...35 VDC
Approval/Conformity
CE
cULus
WEEE
IP rating per IEC 60529
IP66
Technical documentation
  • Datasheet

  • MTTF Certificate

Product documentation
  • Certificate

    UL E117437 20091207 J20M99 (English)
  • Declaration of Compliance

    EU-Konformitätserklärung / EU Declaration of Conformity (All languages)
  • Installation/Assembly manual

    BCS SMART LEVEL (German)
    GRUNDLAGEN KAPAZITIVE (German)
    BASICS CAPACITIVE (English)
No recommended accessories available.
ECLASS 10.1
27-27-01-02
ECLASS 11.0
27-27-01-02
ECLASS 4.1
27-27-08-05
ECLASS 5.1.3
27-27-08-05
ECLASS 5.1.4
27-27-01-02
ECLASS 6.0
27-27-01-02
ECLASS 8.1
27-27-01-02
ECLASS 9.0
27-27-01-02
ECLASS 9.1
27-27-01-02
ETIM 4.0
EC002715
ETIM 5.0
EC002715
ETIM 6.0
EC002715
ETIM 6.0
EC002715
UNSPSC 11
41111926
UNSPSC 7.0901
41111926
