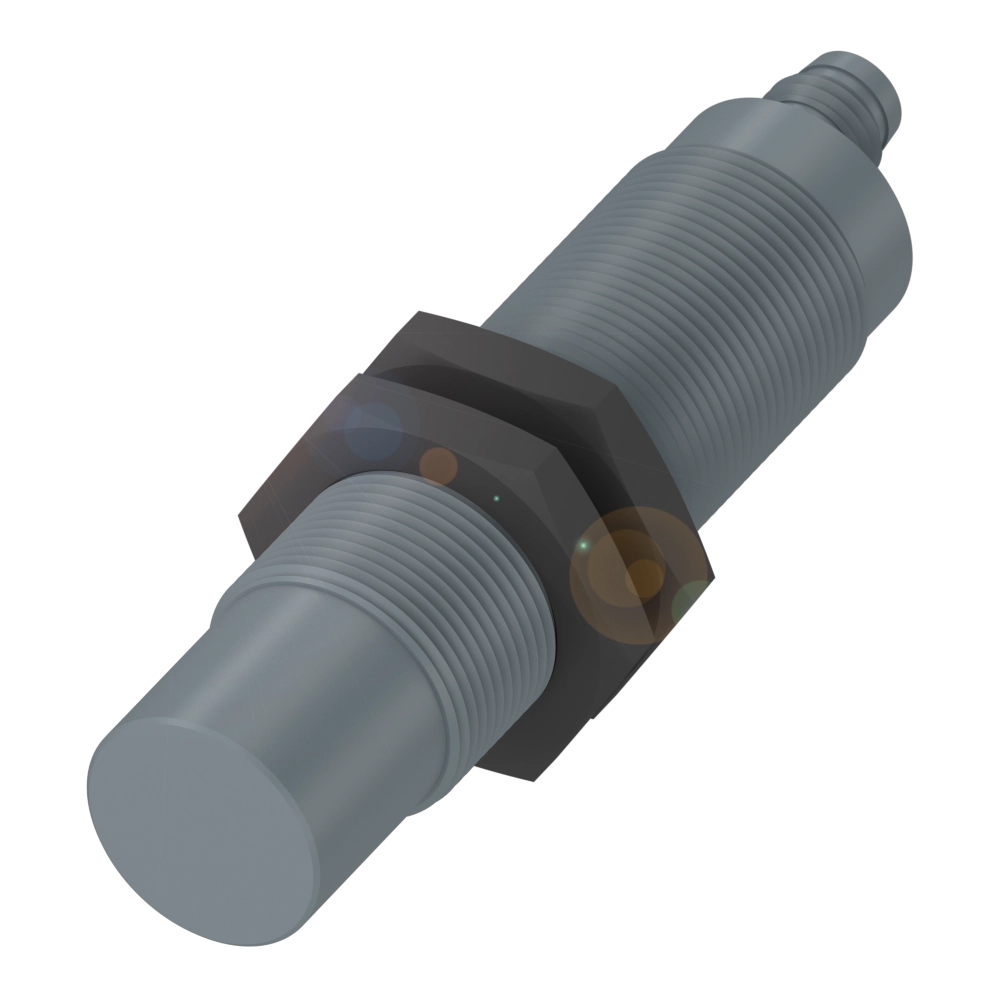

Similar Illustration
Classic product
Only CAD model download is supported
Cylindrical version with M18 thread
Dimension
Ø 18 x 70 mm
Series
M18
Installation
non-flush
Connection
Connector, M8x1-Male, 3-pin
Switching output
PNP Normally closed (NC)
This product is part of the Classic portfolio, that means
extended availability
flexible transition period
transparent conditions
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
|
Recommended alternative
|
|
|
|
|
|

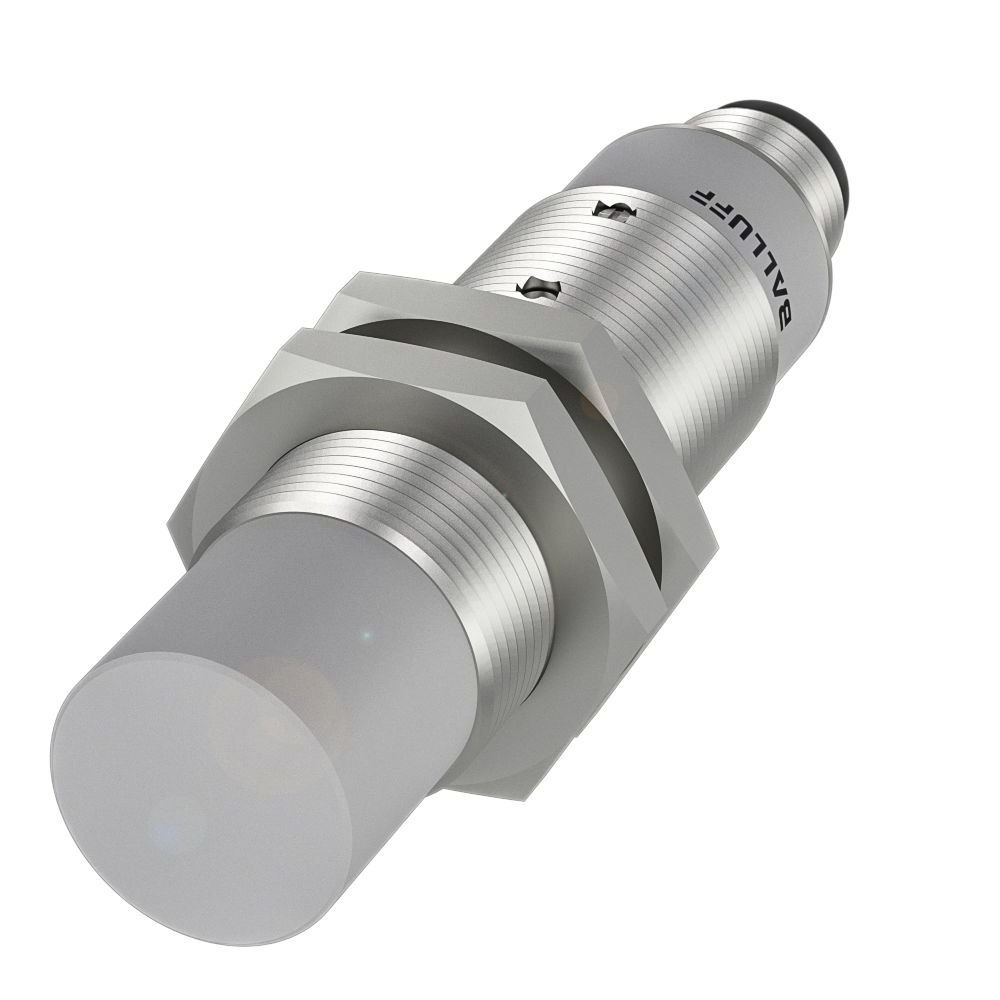

| BCS M18VVN-POCFAG-S49G | BCS M18T4G2-POC15G-S04G | |
|
241.04 USD
List price
|
228.71 USD
List price
|
|
| Dimension | Ø 18 x 70 mm | Ø 18 x 75 mm |
|---|---|---|
| Series | M18 | M18 |
| Installation | non-flush | non-flush |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M12x1-Male, 4-pin |
| Switching output | PNP Normally closed (NC) | PNP Normally closed (NC) |
| Switching frequency | 2 Hz | 100 Hz |
| Sensitivity | media-dependent, adjustable | Switching distance adjustable |
| Function | Smart Level 15 | - |
| Additional features |
Electrically conductive media Foam and residue compensation |
- |
| Housing material | PVC | 1.4301 stainless steel |
| Material sensing surface | PVC | PTFE |
| Ambient temperature | -10...60 °C | -30...70 °C |
| Operating voltage Ub | 10...35 VDC | 10...35 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
| IP rating | IP66 | IP67 |
