Capacitive level sensors

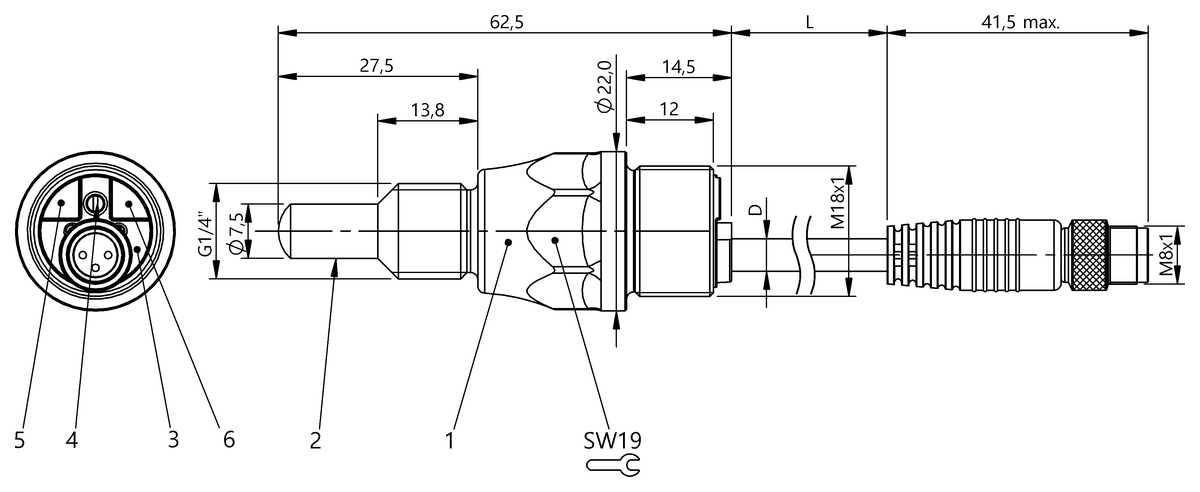

Dimension
Ø 11.9 x 62.5 mm
Series
S44
Installation
non-flush
Connection
Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Switching output
NPN Normally closed (NC)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BCS00ZWBCS S44KK02-NOCFNG-EP00,3-GS49- |
BCS0102BCS S44KK01-GPCFNG-EP02202.61 USD |
|
| Dimension | Ø 11.9 x 62.5 mm | Ø 12 x 62.5 mm |
|---|---|---|
| Series | S44 | S44 |
| Installation | non-flush | non-flush |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR | Cable, 2.00 m, PUR |
| Switching output | NPN Normally closed (NC) | PNP/NPN NO/NC codeable |
| Switching frequency | 10 Hz | 10 Hz |
| Sensitivity | media-dependent, adjustable | media-dependent, adjustable |
| Housing material | PEEK | PEEK |
| Material sensing surface | PEEK | PEEK |
| Ambient temperature | -5...105 °C | -5...105 °C |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE WEEE |
CE UKCA WEEE |
| IP rating | IP67 | IP67 |
