Canceled

BDG0299

BDG HC040-B0M1-LDRS1-1236-AJ20-00A2

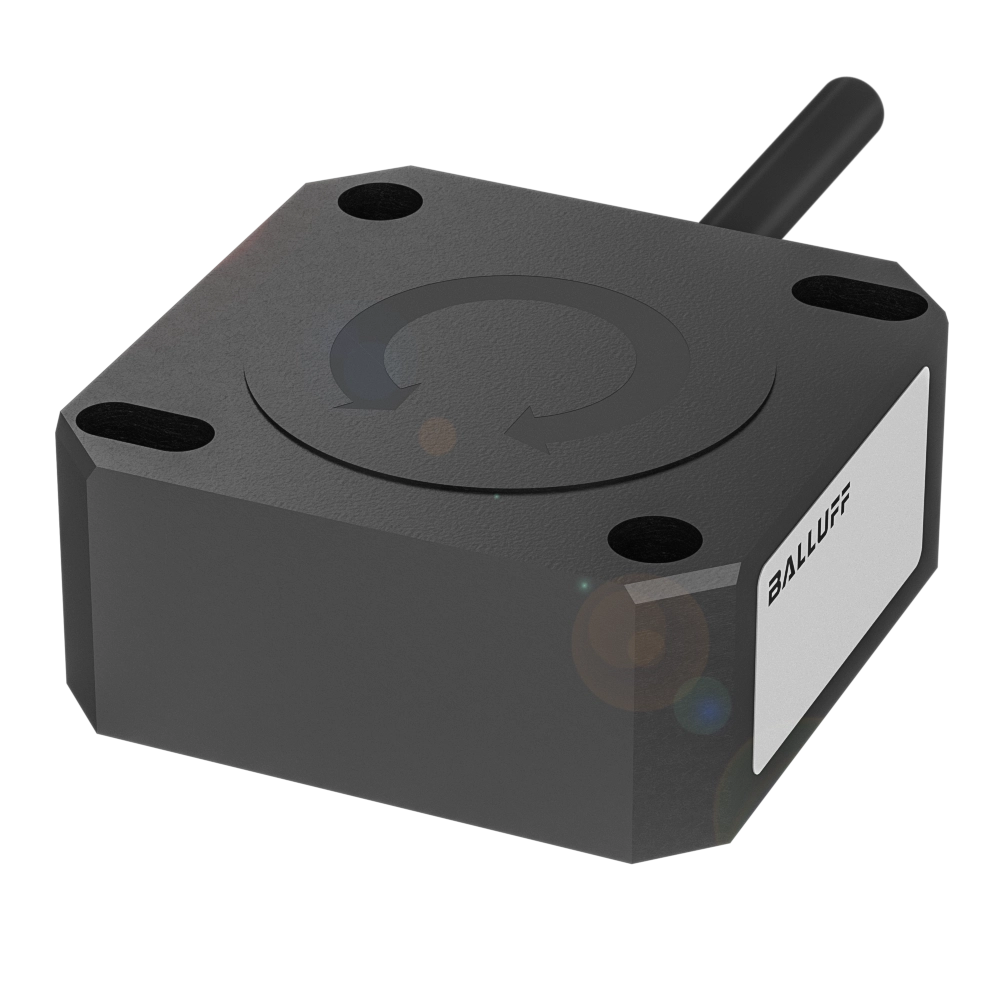

Absolute rotary angle sensors

Measuring principle
Hall sensor
Measuring range
0...360°
Rotation direction
Clockwise
Speed detectable max.
100 1/min
Accuracy
±1.5°
Do you have any questions about the product? Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY

Quantity scale

Contact request
Key features
Measuring principle
Hall sensor
Measuring range
0...360°
Rotation direction
Clockwise
Speed detectable max.
100 1/min
Accuracy
±1.5°
Repeat accuracy
0.26 °
Resolution
≤ 0.18 °
Interface
Analog, current 4…20 mA
Analog, current 20…4 mA
Distance magnet - sensor
0…10 mm, magnet at front side
Connection
Cable, 2 m, PUR
Operating voltage Ub
10...32 VDC
IP rating
IP67
Ambient temperature
-40...80 °C
Approval/Conformity
CE
UKCA
EAC
WEEE
Classifications
ECLASS 10.1
27-27-05-02
ECLASS 11.0
27-27-05-02
ECLASS 12.0
27-27-05-02
ECLASS 13.0
27-27-05-02
ECLASS 14.0
27-27-05-02
ECLASS 5.1.4
27-27-05-01
ECLASS 6.2
27-27-05-90
ECLASS 8.1
27-27-05-02
ECLASS 9.0
27-27-05-02
ECLASS 9.1
27-27-05-02
ETIM 4.0
EC001486
ETIM 5.0
EC001486
ETIM 6.0
EC001486
ETIM 7.0
EC001486
ETIM 8.0
EC001486
ETIM 9.0
EC001486
UNSPSC 11
41111937
UNSPSC 7.0901
41111937
