Similar Illustration
Replacement available
Only CAD model download is supported
Inductive proximity switches and proximity sensors

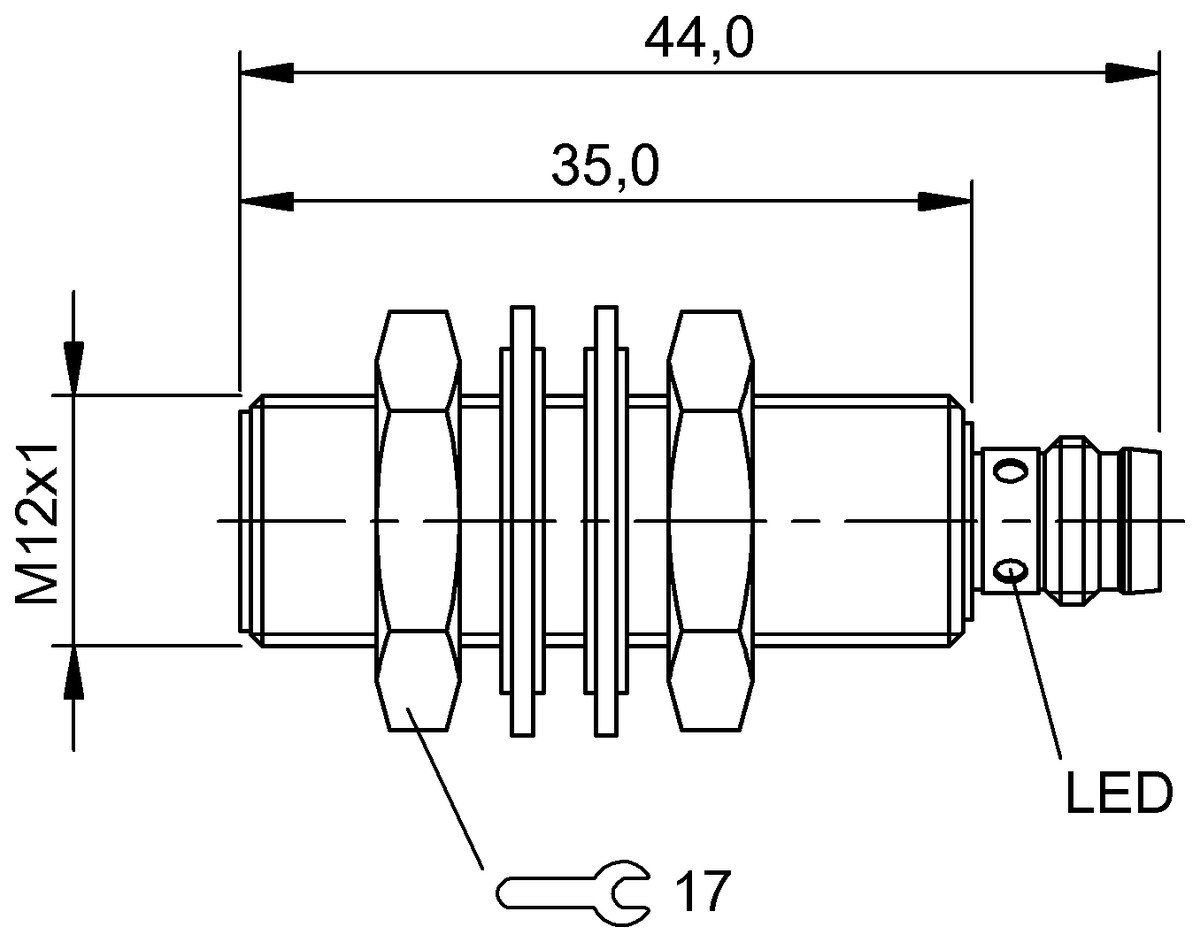

Dimension
Ø 12 x 44 mm
Style Housing
M12x1
Installation
for flush mounting
Range
4 mm
Switching output
NPN Normally open (NO)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
| BES 516-329-G-E5-C-S49 | BES 516-329-G-E5-C-S4 | BES 516-375-G-E5-C-S49 | |
|
125.47 USD
List price
|
125.47 USD
List price
|
125.47 USD
List price
|
|
| Dimension | Ø 12 x 44 mm | Ø 12 x 45 mm | Ø 12 x 44 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 4 mm | 4 mm | 4 mm |
| Switching output | NPN Normally open (NO) | NPN Normally open (NO) | NPN Normally closed (NC) |
| Switching frequency | 2500 Hz | 2500 Hz | 2500 Hz |
| Housing material | Brass, Nickel-free coated | Brass, Nickel-free coated | Brass, Nickel-free coated |
| Material sensing surface | LCP | PBT | LCP |
| Connection | Connector, M8x1-Male, 3-pin | Connector, M12x1-Male, 4-pin | Connector, M8x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP68 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
