Similar Illustration
Replacement available
Only CAD model download is supported
Inductive proximity switches and proximity sensors

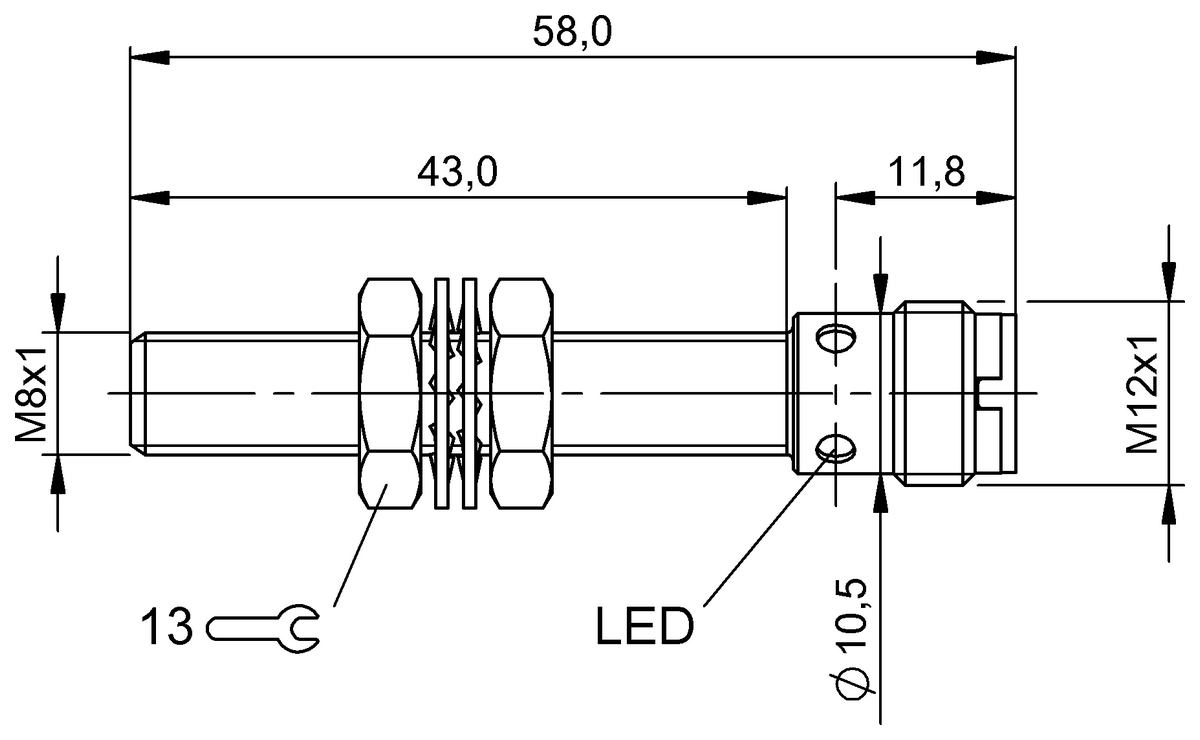

Dimension
Ø 8 x 58 mm
Style Housing
M8x1
Installation
for flush mounting
Range
1.5 mm
Switching output
NPN Normally open (NO)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for the USA – Balluff Inc., Florence, KY
Alternative products
|
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
| BES M08EH-NSC15B-S04G | BES 516-343-SA96-G-E5-C-S49 | BES M08EH-NOC15B-S04G | BES M08EE-NSC15B-S04G-003 | |
|
129.26 USD
List price
|
184.21 USD
List price
|
129.26 USD
List price
|
63.61 USD
List price
|
|
| Dimension | Ø 8 x 58 mm | Ø 8 x 45 mm | Ø 8 x 58 mm | Ø 8 x 43 mm |
|---|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 | M8x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting | for flush mounting |
| Range | 1.5 mm | 2 mm | 1.5 mm | 1.5 mm |
| Switching output | NPN Normally open (NO) | NPN Normally open (NO) | NPN Normally closed (NC) | NPN Normally open (NO) |
| Switching frequency | 3000 Hz | 1500 Hz | 3000 Hz | 1000 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | ceramic coated | PBT | PBT |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M8x1-Male, 3-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -25...70 °C | -25...70 °C |
| IP rating | IP68 | IP68 | IP68 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE cULus WEEE |
cULus CE UKCA WEEE |
CE UKCA cULus WEEE |
