Alternative products
|
Available
|
Alternative
|
|
|
|
|
BES01Y1BES R04KC-NSC15B-EP00,13-GS49121.05 USD |
BES01Y2BES R04KC-NSC15B-EP00,2-GS26133.00 USD |
|

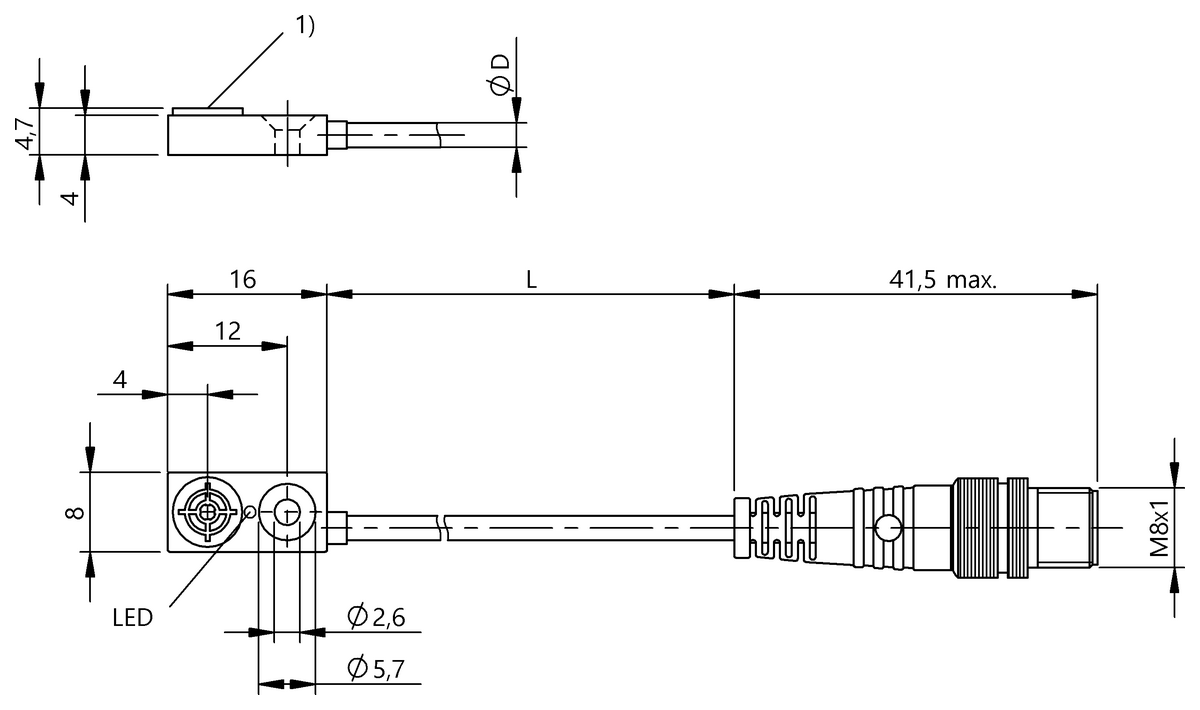

| Dimension | 16 x 8 x 4.7 mm | 16 x 8 x 4.7 mm |
|---|---|---|
| Style Housing | 16x8x4.7 | 16x8x4.7 |
| Installation | for flush mounting | for flush mounting |
| Range | 1.5 mm | 1.5 mm |
| Switching output | NPN Normally open (NO) | NPN Normally open (NO) |
| Switching frequency | 2500 Hz | 2500 Hz |
| Housing material | PA 6, GF30 | PA 6, GF30 |
| Material sensing surface | PA 6, GF30 | PA 6, GF30 |
| Connection | Cable with connector, M8x1-Male, 3-pin, 0.13 m, PUR | Cable with connector, M5x0.5-Male, 0.20 m, PUR |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
cULus CE UKCA WEEE |
cULus CE UKCA WEEE |
Only CAD model download is supported
